Запчасти Case IH 275 (A-17) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR GRILLE Chassis, Radiator & Sheet Metal

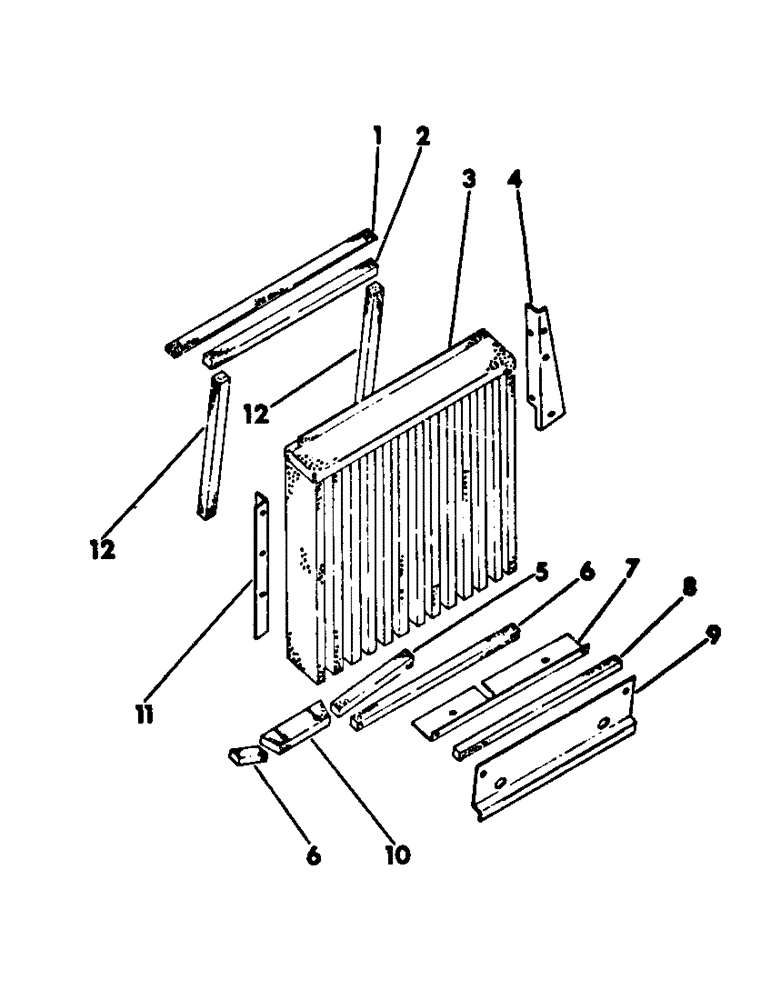

Схема запчастей Case IH 275 - (A-17) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR GRILLE Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

595484R1

SEAL, radiator grille top

1шт.

2

SEAL, radiator grille upper & lower side (2 used on 275 Windrower, 3 used on 375 Windrower) (20.0" in length, to be cut from bulk stock of 50 foot roll, 823821C1 is part number for 1 ft of seal)

1шт.

3

595471R91

GRILLE, radiator (includes 5, SEALS) (275 Windrower)

1шт.

3

GRILLE, radiator (for service on 375 Windrower built prior to machine serial No. 201, order 1 - 597917R91, GRILLE & 1 - 597906R1, SUPPORT)

1шт.

3

597917R91

GRILLE, radiator (includes 7, SEALS) (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

1шт.

3

823758C91

GRILLE, radiator (includes 5, SEALS) (for use on 375 Windrower, built w/machine serial No. 701 to machine serial No. 2000)

1шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga

4шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

595487R1

SUPPORT, radiator grille rear

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

SEAL, radiator grille bottom rear (9.5" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower prior to machine serial No. 201)

1шт.

5

SEAL, radiator grille bottom rear (10.5" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower w/machine serial No. 201 to machine serial No. 701)

1шт.

6

SEAL, radiator grille bottom front (4" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

6

SEAL, radiator grille front (3" length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower w/machine serial No. 201 to machine serial No. 701)

1шт.

6

SEAL, radiator grille bottom (25.2" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower w/machine serial No. 701 to machine serial No. 2000)

1шт.

7

823763C1

SUPPORT, radiator grille lower filler (for use on 375 Windrower w/machine serial No. 701 to machine serial No. 2000)

1шт.

8

_

SEAL, radiator grille lower filler (20" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

1шт.

9

823768C1

FILLER, radiator grille lower (includes 1, SEAL) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

595485R1

SEAL, hyd oil cooler tube (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

10

597921R1

SEAL, hyd oil cooler tube (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

11

595486R11

SUPPORT, radiator grille front

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

SEAL, radiator grille front and rear side (18.7" in length, cut from bulk stock of 50 ft. roll, 823821C1) (for use on 275 Windrower built prior to machine serial No. 4000) (for use on 375 Windrower built prior to machine serial No. 701)

2шт.

12

SEAL, radiator grille front and rear side (24.4" in length, cut from bulk stock of 50 ft roll, 823821C1) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

2шт.

Выбрано товаров: 30
