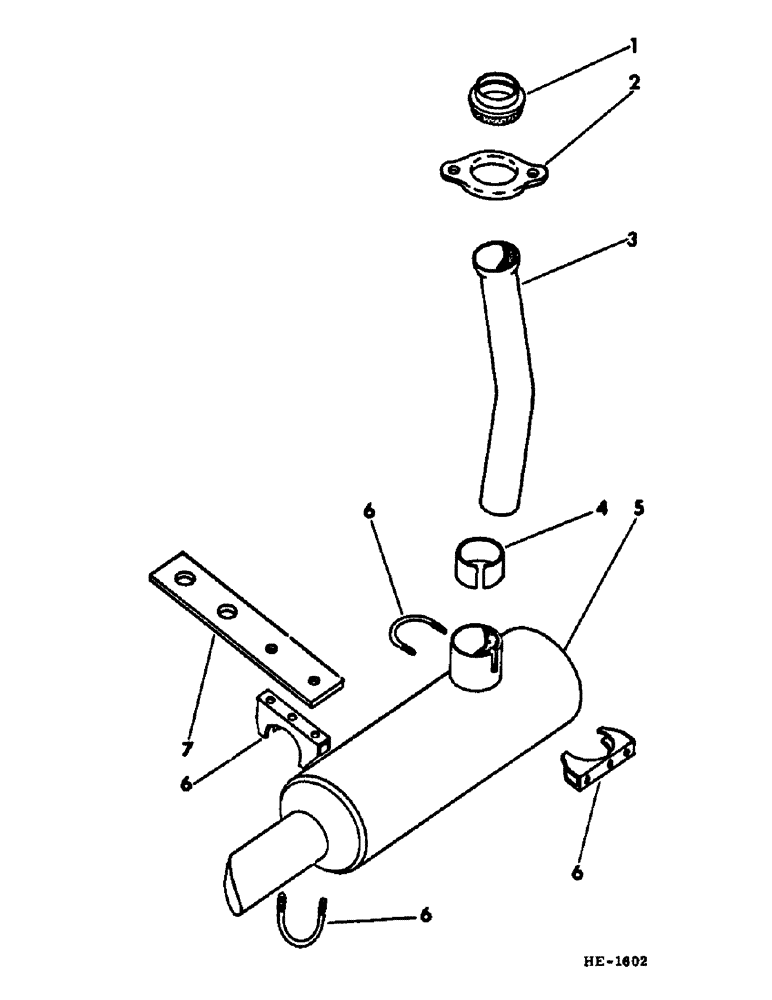

Запчасти Case IH 275 (A-16) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE EXHAUST AND MUFFLER Chassis, Radiator & Sheet Metal

1

386114C1

RING

SEAL, exhaust pipe

1шт.

2

386115C1

FLANGE

exhaust pipe

1шт.

3

827104C1

PIPE, engine exhaust

1шт.

120903H

LOCK NUT

LK-NUT, 3/8" NF

2шт.

4

611437R1

SPACER

exhaust muffler

1шт.

5

597831R2

MUFFLER

engine exhaust

1шт.

6

170571R91

CLAMP

exhaust muffler (includes 2 - 120214, LOCKWASHER & 2 - 120368, NUT)

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

827125C1

BAR, muffler support

1шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2"

2шт.

280954

NUT,3/4"-10, G5

2шт.
