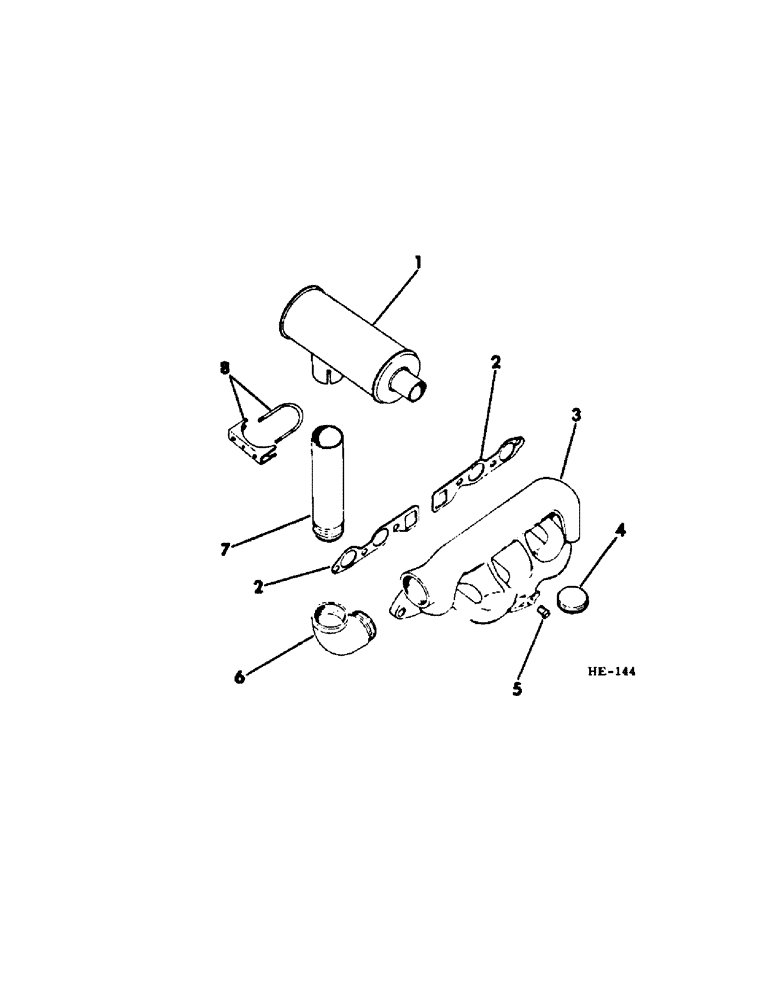

Запчасти Case IH 275 (A-14) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE EXHAUST AND MUFFLER Chassis, Radiator & Sheet Metal

1

609924R91

MUFFLER

engine exhaust

1шт.

2

352014R3

GASKET

engine manifold

1шт.

3

MANIFOLD, engine (for service part number and components refer to the C-153 gasoline engine in section "E" of the ENG-1 parts catalog)

1шт.

4

20976R1

PLUG

1-1/2" manifold pipe

1шт.

5

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8" sq-hd manifold pipe (opt to use 445684, PLUG)

1шт.

5

445684

PLUG

1/8" sq-hd manifold pipe (opt to use 445671, PLUG)

1шт.

6

218202

ELBOW,90 Degree, 1 1/2" NPT Street

1-1/2" - 90 degree exhaust pipe

1шт.

7

614442R1

NIPPLE, 1-1/2 x 12-1/2" exhaust pipe

1шт.

8

170572R91

CLAMP

exhaust muffler (includes 2 - 120214, LOCKWASHER & 2 - 120368, NUT)

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
