Запчасти Case IH 275 (A-13) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE DRIVE SHIELD Chassis, Radiator & Sheet Metal

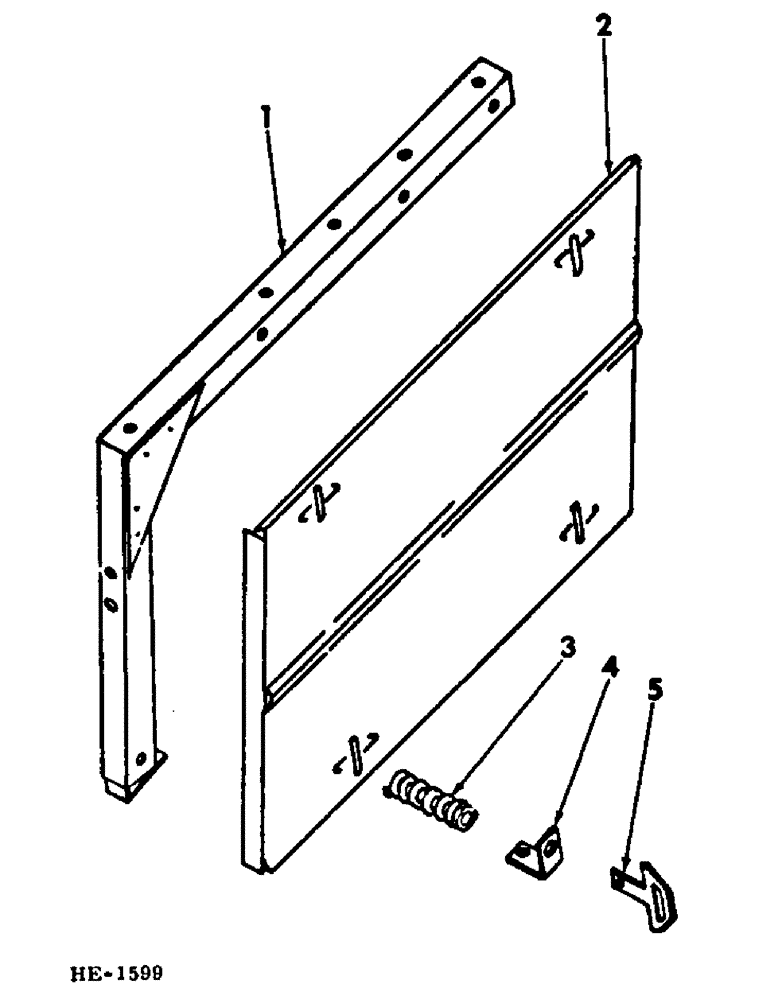

Схема запчастей Case IH 275 - (A-13) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE DRIVE SHIELD Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

595433R31

SUPPORT, side drive shield

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

595437R11

SHIELD, engine & drive

1шт.

3

M296

SPRING

shield latch

1шт.

4

595436R1

ANGLE, side drive shield mounting (NOT applicable when machine is equipped w/pressure cab attachment)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 7/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

593377R1

LATCH

engine & drive shield

4шт.

619856R1

WASHER

13/32 x 1 x 16

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

Выбрано товаров: 17
