Запчасти Case IH 275 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE AND ENGINE SUPPORTS Chassis, Radiator & Sheet Metal

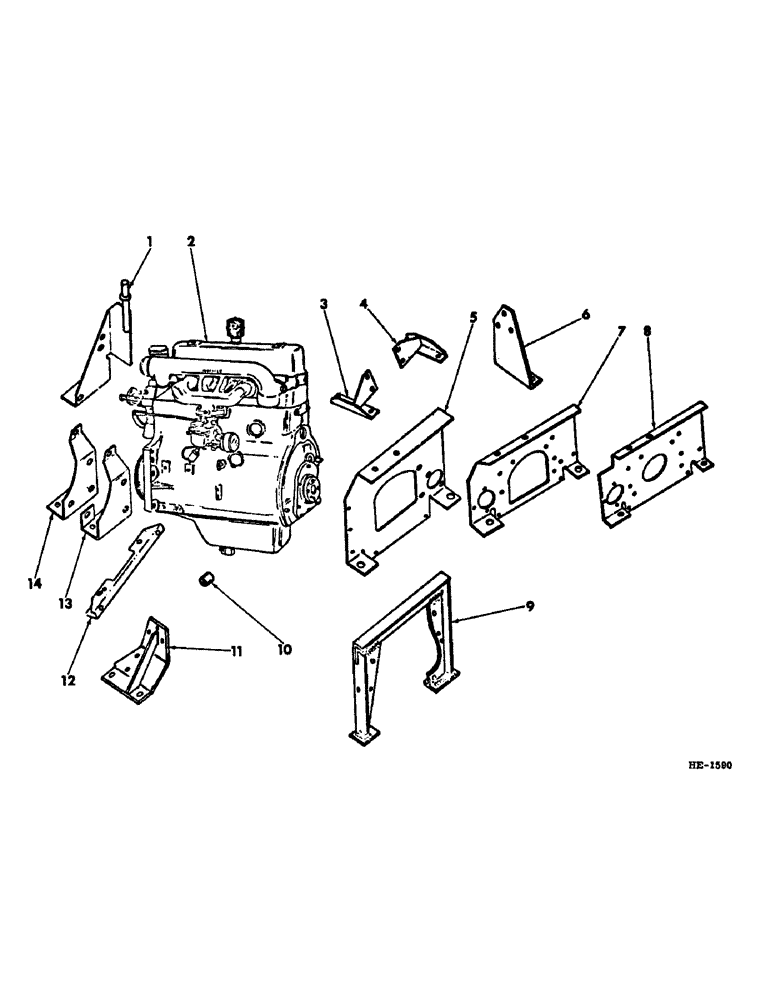

Схема запчастей Case IH 275 - (A-08) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE AND ENGINE SUPPORTS Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

595440R91

SUPPORT, engine front LH (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4"

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

382500R93

ENGINE, IH C-153 Gasoline skeleton

1шт.

For use on 275 Windrower, built prior to machine serial No. 4000, for use on 375 Windrower, built prior to machine serial No. 201 (for component parts of this assembly refer to parts catalog ENG-1) (attaching hardware common to full service engine)

1шт.

2

396521R91

ENGINE, IH C-153 gasoline (for use on 275 Windrower, built prior to machine serial No. 4000) (for use on 375 Windrower, built prior to machine serial No. 201) (for component parts of this assmebly refer to parts catalog ENG-1)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

3шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4"

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4"

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

400326R91

ENGINE, IH C-175 gasoline standard skeleton (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 2000) (for component parts of this assembly refer to parts catalog ENG-1)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

400325R91

ENGINE, IH C-175 gasoline standard (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 2000) (for component parts of this assembly refer to parts catalog ENG-1) (attaching hardware common to hardware listed w/400326R91, ENGINE)

1шт.

2

400327R91

ENGINE, IH C-175 gasoline high altitude piston skeleton

1шт.

For use on 375 Windrower built w/machine serial No. 201 to machine serial No. 2000) for components parts of this assembly refer to parts catalog ENG-1) (attaching hardware common to hardware listed w/400326R91, ENGINE)

1шт.

2

827108C91

ENGINE, 6-232 gasoline (for use on 275 Windrower, built w/machine serial No. 4000 & since) (for use on 375 Windrower, built w/machine serial No. 2000 & since) (for component parts of this assembly refer to section "C" of this parts catalog)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-1/4"

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2"

4шт.

472635R1

WASHER

.594 x 1.000 x .054

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

827272C91

ENGINE

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

2

3144169R91

SKELETON ENGINE

ENGINE, IH D-206 diesel skeleton (for use on 275 Windrower and 375 Windrower) (for component parts of this assembly refer to section "D" of this parts catalog)

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2"

2шт.

2

3132139R94

ENGINE, IH D-206 diesel standard (for use on 275 Windrower and 375 Windrower) (for component parts of this assembly refer to section "D" of this parts catalog)

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2"

4шт.

3

596461R1

SUPPORT, engine front LH (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine)

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

4

596464R2

SUPPORT, engine rear LH (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine)

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

5

595446R1

SUPPORT, engine RH (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

3шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

2шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

826969C1

SUPPORT, engine front LH (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

596466R1

SECTION, engine support RH (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

598114R1

SUPPORT, engine RH (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

826972C1

SUPPORT, engine RH (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-1/4"

2шт.

472635R1

WASHER

.594 x 1.000 x .054

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

650676R1

SPACER,3/8" X-Strng Pipe x 5/8"

LH front & rear engine support (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

826970C1

SUPPORT, engine rear LH (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

598113R1

SECTION, engine support LH (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

13

595444R91

SUPPORT, engine rear LH (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

595443R1

SUPPORT, engine rear LH (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 114
