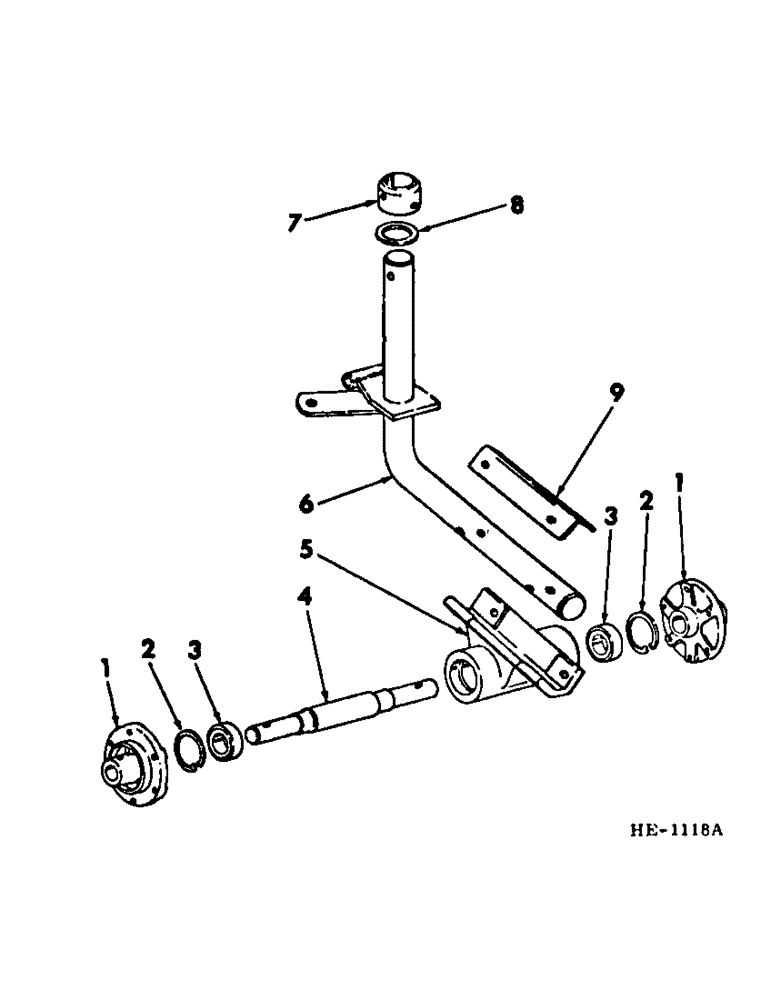

Запчасти Case IH 275 (A-06) - CHASSIS, RADIATOR AND SHEET METAL, TAIL WHEEL AXLE Chassis, Radiator & Sheet Metal

1

816559C1

HUB

caster wheel

2шт.

816576C1

PIN

caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

2

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , brg 3.156", Int, #315

2шт.

3

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

wheel

2шт.

4

816558C1

AXLE

wheel

1шт.

5

816560C2

CARRIER

axle & brg

1шт.

211216

BOLT, 1/2 x 4" type 8 (for use on 275 Windrower built w/machine serial No. 2515 to machine serial No. 2817) (For use on 375 Windrower built w/machine serial No. 808 to machine serial No. 982)

4шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2" (for use on 275 Windrower built w/machine serial No. 2817 & since) (for use on 375 Windrower built w/machine serial No. 982 & since)

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

827166C1

SHANK, tail wheel pivot (for use on 275 Windrower, built w/machine serial No. 2515 & since)

1шт.

6

825452C4

SHANK, tail wheel pivot (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

7

595064R1

COLLAR, tail wheel support

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 x 3-3/4"

1шт.

597670R1

NUT

LK-NUT, 1/2"

1шт.

8

20886R1

WASHER

2-17/32 x 3-1/2 x 18 ga

1шт.

9

825486C2

ANGLE, stone kicker

1шт.

211216

BOLT, 1/2 x 4" type 8 (for use on 275 Windrower, built w/machine serial No. 2515 to machine serial No. 2817) (for use on 375 Windrower buil w/machine serial No. 808 to machine serial No. 982)

4шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2" (for use on 275 Windrower built w/machine serial No. 2817 & since) (for use on 375 Windrower built w/machine serial No. 982 & since)

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
