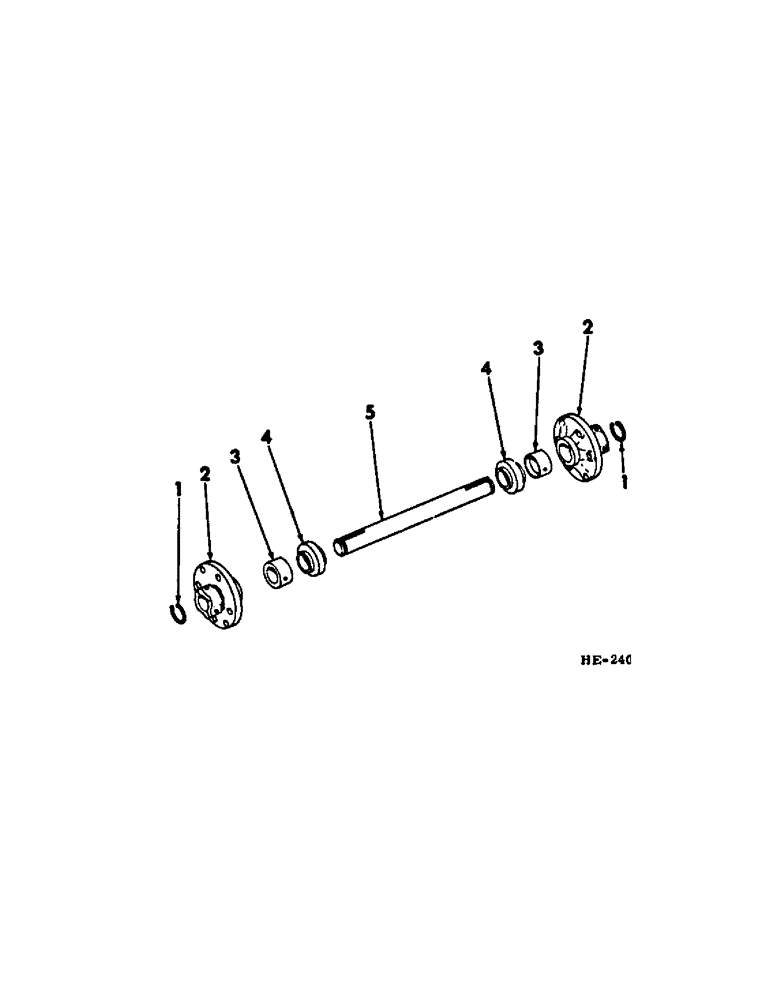

Запчасти Case IH 275 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, DUAL TAIL WHEEL AXLE Chassis, Radiator & Sheet Metal

1

698553R1

SNAP RING,#175, Ext

Ring, Snap, , wheel hub #175, Ext

2шт.

2

591817R2

HUB

dual wheel

1шт.

657205R1

KEY, 3/8 x 3/8 x 3-1/4" staight 3/8" Sq x 3 1/4", Par

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

582816R11

COLLAR

dual wheel axle brg locking (includes 1, 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls-cup-pt-set

2шт.

4

594396R91

BALL BEARING,1.7507" ID x 3.3465" OD x 1.6875"

dual wheel axle

2шт.

5

595066R1

AXLE, dual wheel

1шт.
