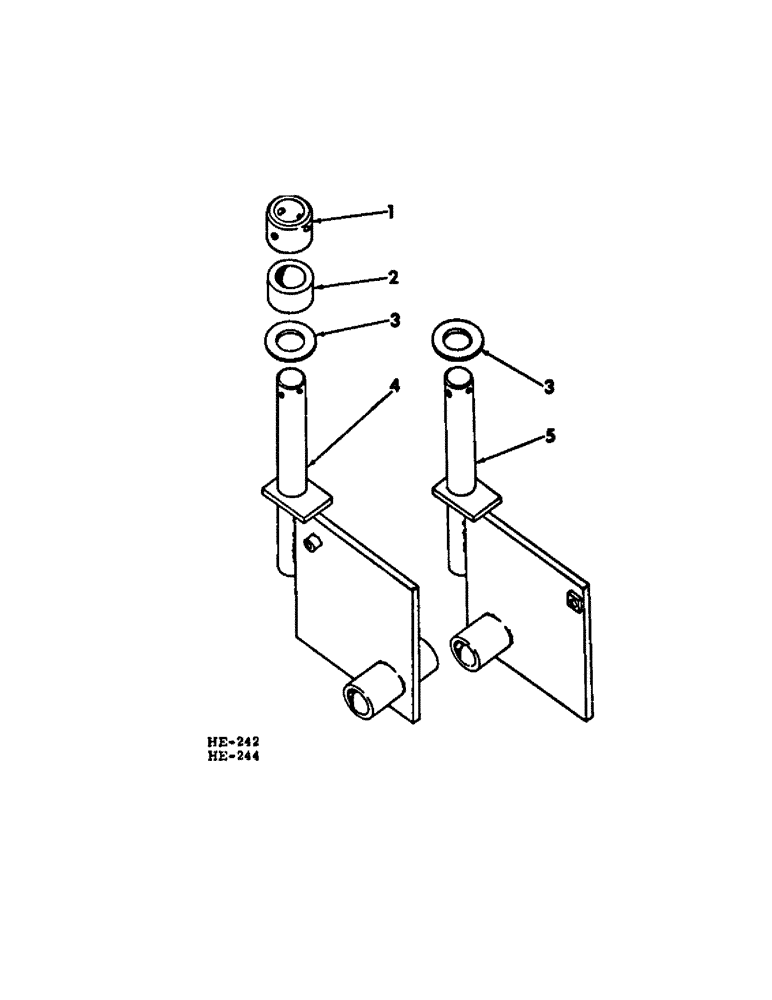

Запчасти Case IH 275 (A-05[A]) - CHASSIS, RADIATOR AND SHEET METAL, DUAL TAIL WHEEL SUPPORT Chassis, Radiator & Sheet Metal

1

595064R1

COLLAR, dual caster wheel support

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

595065R1

SPACER, caster wheel support (for use on 275 Windrower, built prior to machine serial No. 2275)

1шт.

3

20886R1

WASHER

2-17/32 x 3-1/2 x 16 ga

1шт.

4

595056R91

SUPPORT, dual caster wheel pivot (for use on 275 Windrower)

1шт.

5

595057R91

SUPPORT, dual guide wheel pivot (for use on 375 Windrower)

1шт.
