Запчасти Case IH 275 (A-04) - CHASSIS, RADIATOR AND SHEET METAL, SLOW MOVING VEHICLE EMBLEM Chassis, Radiator & Sheet Metal

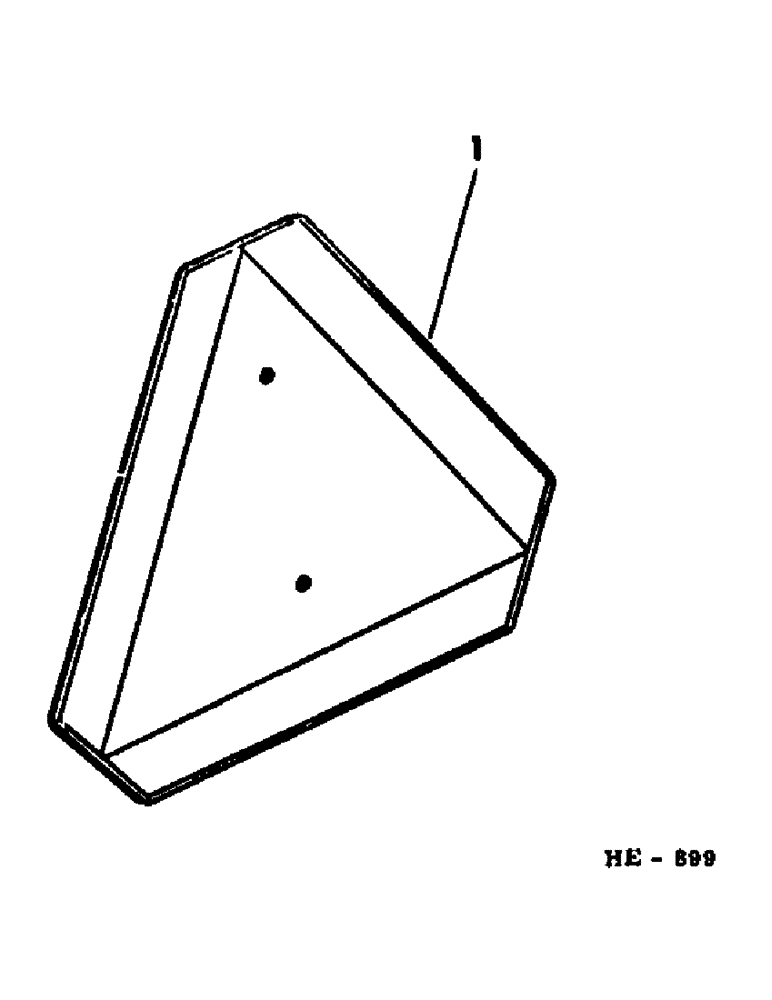

Схема запчастей Case IH 275 - (A-04) - CHASSIS, RADIATOR AND SHEET METAL, SLOW MOVING VEHICLE EMBLEM Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

407218R1

PACKAGE

EMBLEM, slow moving vehicle aluminium

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

No. 10-24 x 1" pan-hd-set

2шт.

20600R1

WASHER

.281 x .750 x.105

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

1

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle steel

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

No. 10-24 x 1" pan-hd-set

2шт.

20600R1

WASHER

.281 x .750 x .105

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

Выбрано товаров: 10
