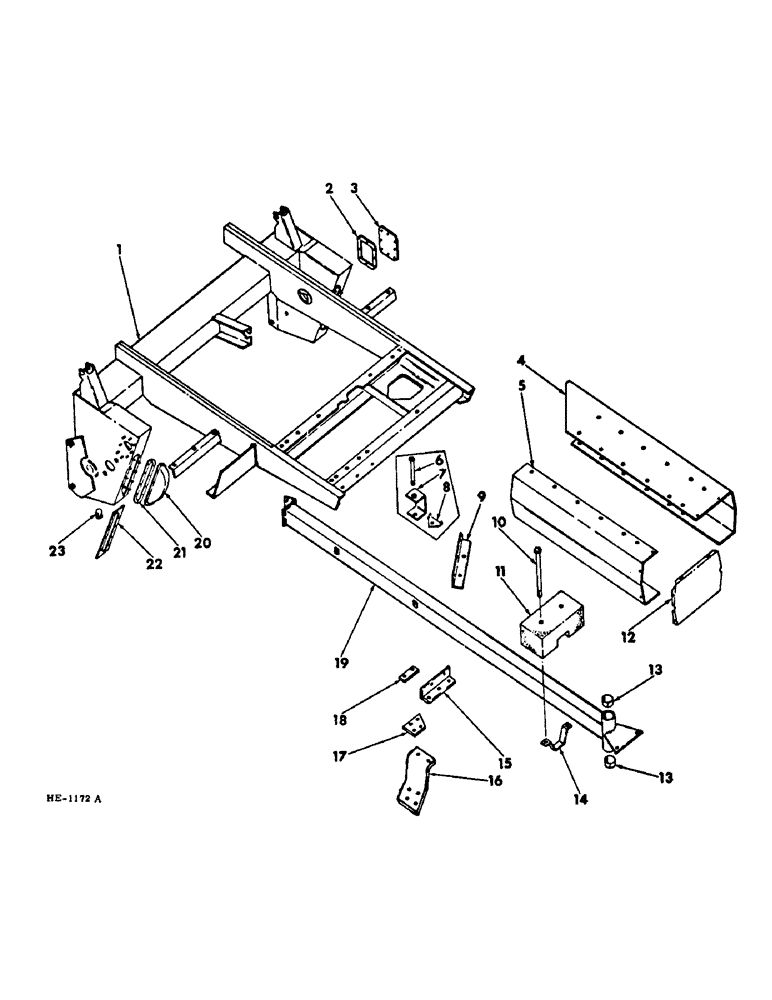

Запчасти Case IH 275 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME AND TAIL WHEEL BEAM Chassis, Radiator & Sheet Metal

1

595998R91

FRAME, chassis main (for use on 275 Windrower, built prior to machine serial No. 1501)

1шт.

1

597871R1

FRAME, chassis main (for use on 275 Windrower, built w/machine serial No. 1501 to machine serial No. 2554.

1шт.

1

825411C2

FRAME, chassis main (for use on 275 Windrower, built w/machine serial No. 2554 to machines serial No. 4000)

1шт.

1

826979C1

FRAME, chassis main (for use on 275 Windrower, built w/machine serial No. 4000 & since)

1шт.

1

595000R91

FRAME, chassis main (for use on 375 Windrower, built prior to machine serial No. 201)

1шт.

1

597851R2

FRAME, chassis main (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 807)

1шт.

1

825428C2

FRAME, chassis main (for use on 375 Windrower, built w/machine serial No. 807 to machien serial No. 2000)

1шт.

1

826980C1

FRAME, chassis main (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

2

595036R1

GASKET

housing outer entrance cover

2шт.

3

595035R1

COVER, final drive housing outer

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

16шт.

598058R1

SEALING WASHER

LK-WASHER, rubberized

16шт.

4

825457C1

SHIELD, wheel beam weight RH (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

1шт.

5

825481C1

SHIELD, wheel beam weight LH (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

1шт.

6

21703R1

BOLT, wheel beam pivot (3/4 x 7-3/4" BOLT) (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

7

595051R11

BRACKET, wheel beam front (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

595053R1

REINFORCEMENT, pivot bolt locking (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 598)

1шт.

9

595050R1

ANGLE, wheel beam rear support (for use on 275 Windrower built prior to machine serial No. 1501) (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

223809

BOLT, 5/8 NF x 1-1/2" type 8

3шт.

225861

NUT,5/8"-18, G8

3шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

597979R1

ANGLE, wheel beam rear support (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 4000) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 2000)

1шт.

10

825000C1

BOLT, 1/2 x 17" type 1 (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

10шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

11

825454C1

BLOCK, weight (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

1шт.

12

825458C1

COVER, weight (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

1шт.

564791R1

SPRING NUT

speed

6шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" slt-rd-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

13

595049R1

BUSHING, wheel beam pivot (2 used on 375 Windrower built prior to machine serial No. 598)

1шт.

13

473604R1

BUSHING

axle pivot (for use on 275 Windrower built w/machine serial No. 2275 & since) (for use on 375 Windrower built w/machine serial No. 598 & since)

2шт.

14

825455C1

SUPPORT, beam weight block (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

4шт.

15

827164C1

ANGLE, tail wheel beam support (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

280954

NUT,3/4"-10, G5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

827163C1

SUPPORT, tail wheel beam lower (for use on 275 Windrower, built w/machine serial No. 4000 & since) (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2"

4шт.

280954

NUT,3/4"-10, G5

12шт.

17

827162C1

BAR, beam support spacer (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2"

4шт.

280954

NUT,3/4"-10, G5

8шт.

18

827161C1

BAR, tail wheel beam clamping (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2"

2шт.

280954

NUT,3/4"-10, G5

4шт.

19

595039R92

BEAM, caster wheel (includes 2, 473604R1, BUSHING) (for use on 275 Windrower, built prior to serial No. 2515)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

20522R1

BOLT

5/8 NF x 2-1/4" type 8

4шт.

225861

NUT,5/8"-18, G8

8шт.

425262R1

WASHER

21/32 x 1/16 x 1/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

19

595040R92

BEAM, guide wheel (includes 2, 473604R1, BUSHING) (for use on 375 Windrower built prior to machine serial No. 808)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 NF x 1-1/4"

4шт.

20522R1

BOLT

5/8 NF x 2-1/4" type 8

4шт.

225861

NUT,5/8"-18, G8

8шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

425262R1

WASHER

21/32 x 1-1/16 x 1/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

19

825441C92

BEAM, tail wheel (includes 2, 473604R1, BUSHING) (for use on 275 Windrower, built w/machine serial No. 2515 to machine serial No. 4000) (for use on 375 Windrower built w/machine serial No. 808 to machine serial No. 2000)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

20522R1

BOLT

5/8 NF x 2-1/4" type 8

4шт.

225861

NUT,5/8"-18, G8

8шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

19

827160C91

BEAM, tail wheel (includes 2, 473604R1, BUSHING) (for use on 275 Windrower, built w/machine serial No. 4000 & since) (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

43244D

PAN

final drive housing lower

2шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

21

43245D

GASKET

final drive housing lower pan

2шт.

22

598640R1

BAR

main frame reinforcing (welded to final drive housings on 275 Windrower built prior to machine serial No. 1501) welded to final drive housings on 375 Windrower built prior to machine serial No. 201)

2шт.

23

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" automotive sq-hd pipe (final drive housing oil level & drain)

4шт.

23

598865R1

PLUG, cross channel filler ( 4 or 8 used on 275 Windrower) (8 or 18 used on 375 Windrower)

1шт.
