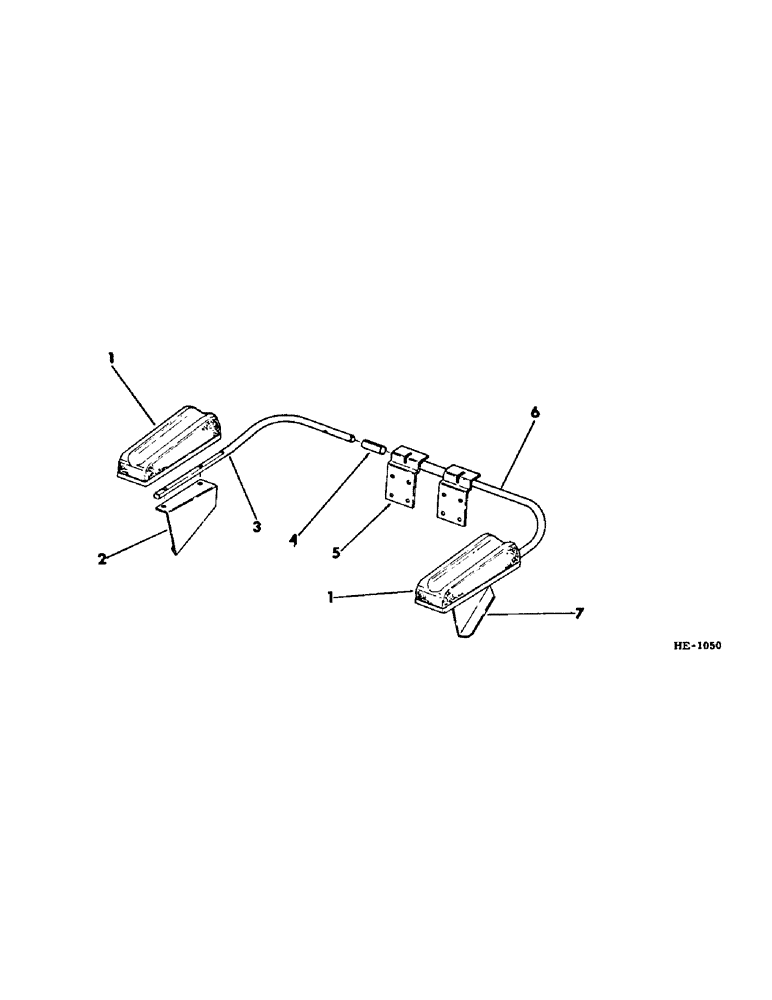

Запчасти Case IH 275 (M-12) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS SEAT ARM REST, BOSTROM (10) - OPERATORS PLATFORM

825242C91

ARMREST

SEAT, seat arm (composed of all parts listed below)

1шт.

1

825243C1

RESTRICTOR

REST, seat arm

2шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

1/4 x 1-1/4" pan hd phil-rec

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

825246C1

SUPPORT, arm rest RH

1шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

1/4 x 1-1/4" pan-hd phil-rec

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

825261C1

ROD, arm rest RH

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

4

825263C1

STRIP, arm rest brg

2шт.

5

825262C1

TUBE, rear bracket

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

4шт.

6

825260C1

ROD, arm rest LH

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

7

825245C1

SUPPORT, arm rest LH

1шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

1/4 x 1-1/4" pan-hd phil-rec

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
