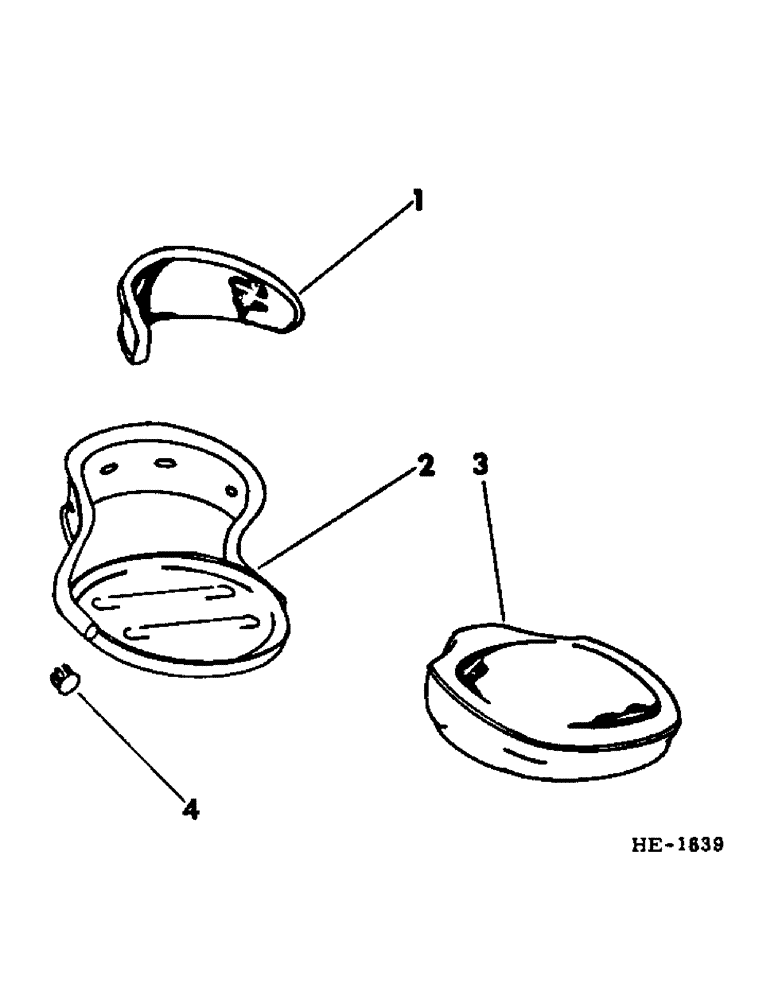

Запчасти Case IH 275 (M-08) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS SEAT (10) - OPERATORS PLATFORM

1

387177R91

CUSHION

seat upper back

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

387178R1

SUPPORT

upper back cushion

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

387175R1

LARGE PLATE

PLATE, lower back cushion

1шт.

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

No. 8-15 x 3/8" cr-rec-pan-hd type A tapping

3шт.

4

387174R91

CUSHION

seat lower back (includes 387175R1, PLATE & 1 - 161857, SCREWS)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

5

387172R1

SUPPORT

lower back cushion LH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

138452

LK-WASHER, 3/8" int-t

2шт.

6

387173R1

SUPPORT

lower back cushion RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

7

386913R1

COVER

ING, seat cushion

1шт.

8

386912R1

PAD, seat cushion

1шт.

9

381245R1

PAN, seat cushion

1шт.

10

379385R1

CLIP

RETAINER, seat covering

4шт.

11

596324R1

SUPPORT, seat

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

379321R1

CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type

seat

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

386911R91

CUSHION

seat, composed of, (1) covering 386913R1, (1) pad 386912R1, (1) pan 381245R1, (4) retainer 379385R1

1шт.
