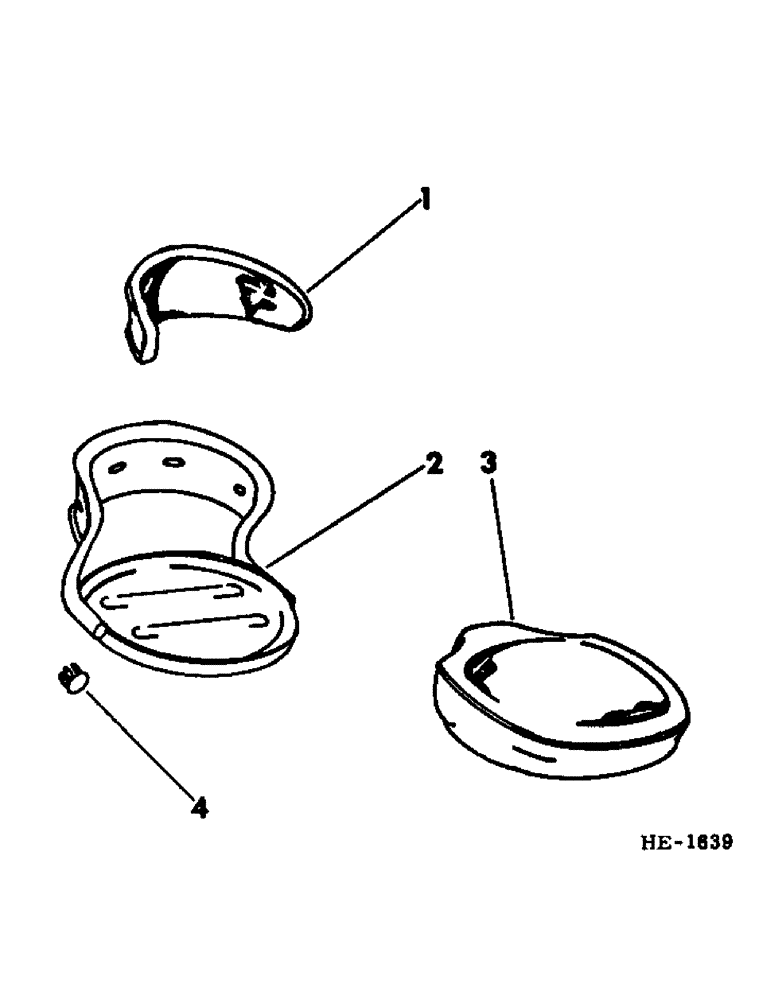

Запчасти Case IH 275 (M-07) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS SEAT (10) - OPERATORS PLATFORM

1

673940R91

BACKPAD, operator's seat

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" slt-rd-hd

4шт.

2

592695R91

FRAME, operator's seat (includes 2 - 592696R1, PLUGS)

1шт.

592677R1

BOLT, 1/2 - NF x 1-1/2" crg

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

685547R1

NUT

1/2" - NF

1шт.

3

592697R91

CUSHION, operator's seat

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 x 1"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

4

592696R1

PLUG, seat frame button

2шт.
