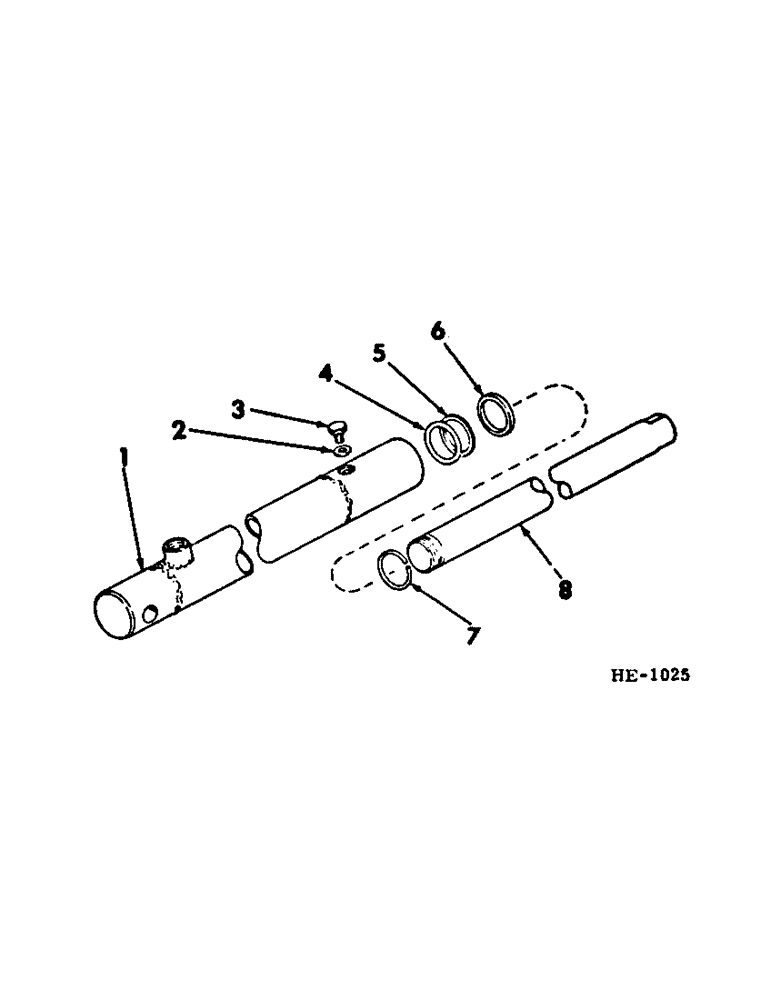

Запчасти Case IH 275 (F-71[A]) - HYDRAULIC SYSTEM, HYDRAULIC REEL LIFT SLAVE CYLINDER (07) - HYDRAULIC SYSTEM

1

599991R1

BODY, hyd cyl slave

1шт.

2

WASHER, hyd cyl screw (NSS) (for service order 1 - 826027C91, KIT)

1шт.

3

SCREW, hyd cyl (NSS) (for service order 1 - 826027C91, KIT)

1шт.

4

O-RING, 1/8 x 1" I.D. piston rod (NSS) (for service order 1 - 826027C91, KIT)

1шт.

5

WASHER, o-ring back-up (NSS) (for service order 1 - 826027C91, KIT)

1шт.

6

SEAL, piston rod oil (NSS) (for service order 1 - 826027C91, KIT)

1шт.

7

RING, piston rod lk (NSS) (for service order 1 - 826027C91, KIT)

1шт.

8

599992R1

ROD, hyd cyl slave piston

1шт.

826027C91

SEAL KIT

KIT, hyd cyl seal service, (NSS) (1) O-RING, (NSS) (1) RING, (NSS) (1) SCREW, (NSS) (1) SEAL, (NSS) (1) WASHER, (NSS) (1) WASHER

1шт.
