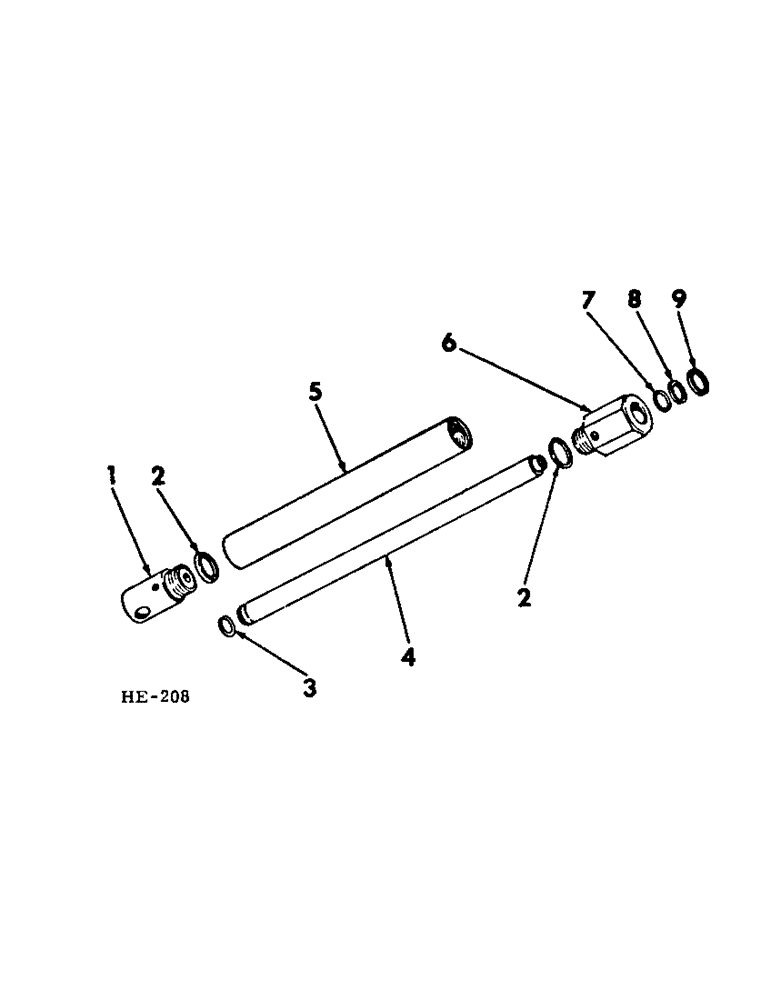

Запчасти Case IH 275 (F-70) - HYDRAULIC SYSTEM, HYDRAULIC REEL LIFT SLAVE CYLINDER (07) - HYDRAULIC SYSTEM

595817R92

CYLINDER

reel lift slave hyd (REFER TO NOTE) (composed of all parts listed below)

1шт.

1

595818R1

HEAD

slave hyd cyl (when stock is exhausted order 1 - 599989R1, BODY; 1 - 599993R91, ELBOW & 1 - 364839R1, O-RING)

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

hyd cyl sleeve

2шт.

3

595822R1

RING, piston rod retaining

1шт.

4

595821R1

ROD, slave hyd cyl piston

1шт.

5

595819R1

SLEEVE, slave hyd cyl (when service stock is exhausted order 1 - 599989R1, BODY; 1 - 599993R91, ELBOW & 1 - 364839R1, O-RING)

1шт.

6

595820R3

NUT, slave hyd cyl

1шт.

7

350818R1

O-RING,0.984" ID x 0.139" Width

back-up nut

1шт.

8

659556R1

WASHER

nut back-up

1шт.

9

697494R91

OIL SEAL

SEAL, hyd cyl nut oil

1шт.

445684

PLUG

1/8" automotive sq-hd pipe

1шт.

595823R91

PACKAGE, hyd cyl seal & O-ring repair, composed of, (1) O-RING 350818R1, (2) O-RING 296247R1, (1) RING 659556R1, (1) SEAL 697494R91, (1) WASHER 379571R1

1шт.

549955R91

CYLINDER, reel lift slave (opt to use 1 - 823369C91 OR 1 - 599990R91, CYLINDER) (composed of all parts listed below)

1шт.
