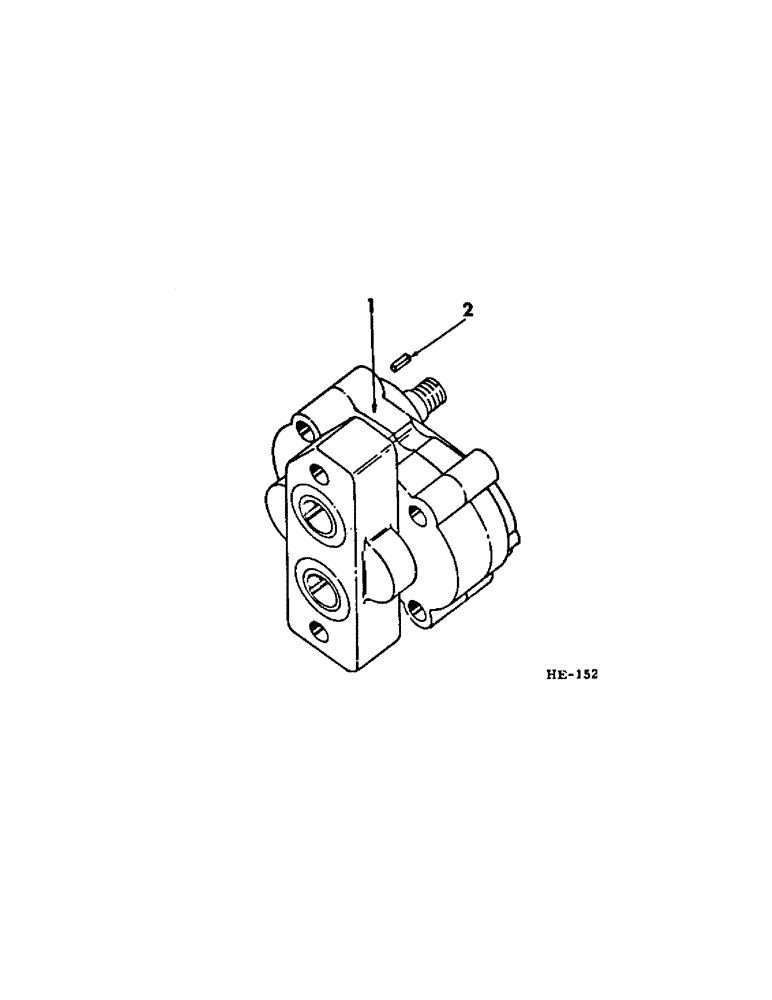

Запчасти Case IH 275 (F-69[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

596411R91

PUMP

hyd (composed of all parts listed below, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

607171R1

KEY

hyd pump drive

1шт.

614750R92

SEAL KIT

PACKAGE, hyd pump seal repair, composed of, (NSS) (2) BALL, (NSS) (1) COVER, (NSS) (1) GASKET, (NSS) (1) SEAL, (NSS) (1) SEAL, (NSS) (2) SPRING

1шт.
