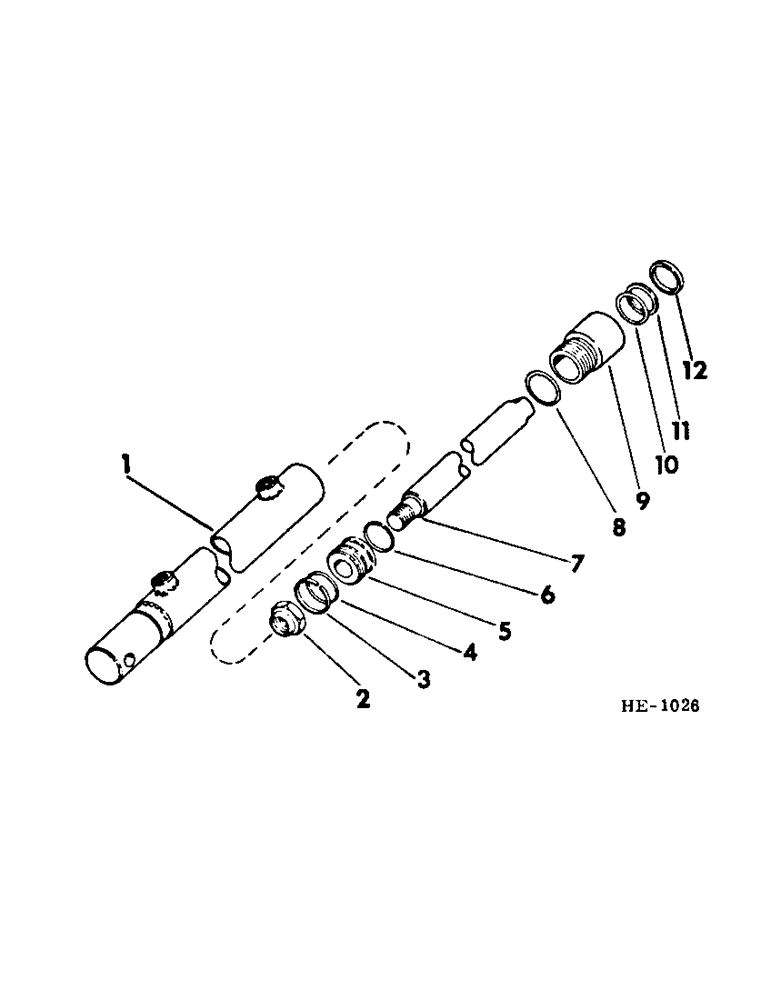

Запчасти Case IH 275 (F-67) - HYDRAULIC SYSTEM, REEL LIFT MASTER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

599996R91

CYLINDER, reel lift master hyd (opt to use 1 - 595799R92 OR 1 - 549956R91, CYLINDER) (composed of all parts listed below) (for attaching parts refer to "REEL LIFT HYDRAULIC LINES" in section "F" of this parts catalog)

1шт.

1

599997R1

BODY, master hyd cyl

1шт.

2

219758

JAM NUT,Jam, 3/4"-10, G5

hyd cyl piston rod

1шт.

3

RING, piston teflon 1-1/2" O.D. (NSS) (for service order 1 - 825156C91, KIT)

1шт.

4

O-RING, teflon ring 1/16 x 1-1/4" I.D. (NSS) (for service order 1 - 825156C91, KIT)

1шт.

5

161332C1

PISTON

hyd cyl

1шт.

6

O-RING, hyd cyl piston 1/16 x 1-1/8" I.D. (NSS) (for service order 1 - 825156C91, KIT)

1шт.

7

599998R1

ROD, hyd cyl piston

1шт.

8

O-RING, hyd cyl head 3/32 x 1-3/8" I.D. (NSS) (for service order 1 - 825156C91, KIT)

1шт.

9

599999R1

HEAD

hyd cyl

1шт.

10

O-RING, back-up washer 1/8 x 1-1/8" I.D. (NSS) (for service order 1 - 825156C91, KIT)

1шт.

11

WASHER, back-up (NSS) (for service order 1 - 825156C91, KIT)

1шт.

12

SEAL, piston rod wiper (NSS) (for service order 1 - 825156C91, KIT)

1шт.

825156C91

KIT, cyl seal repair

1шт.
