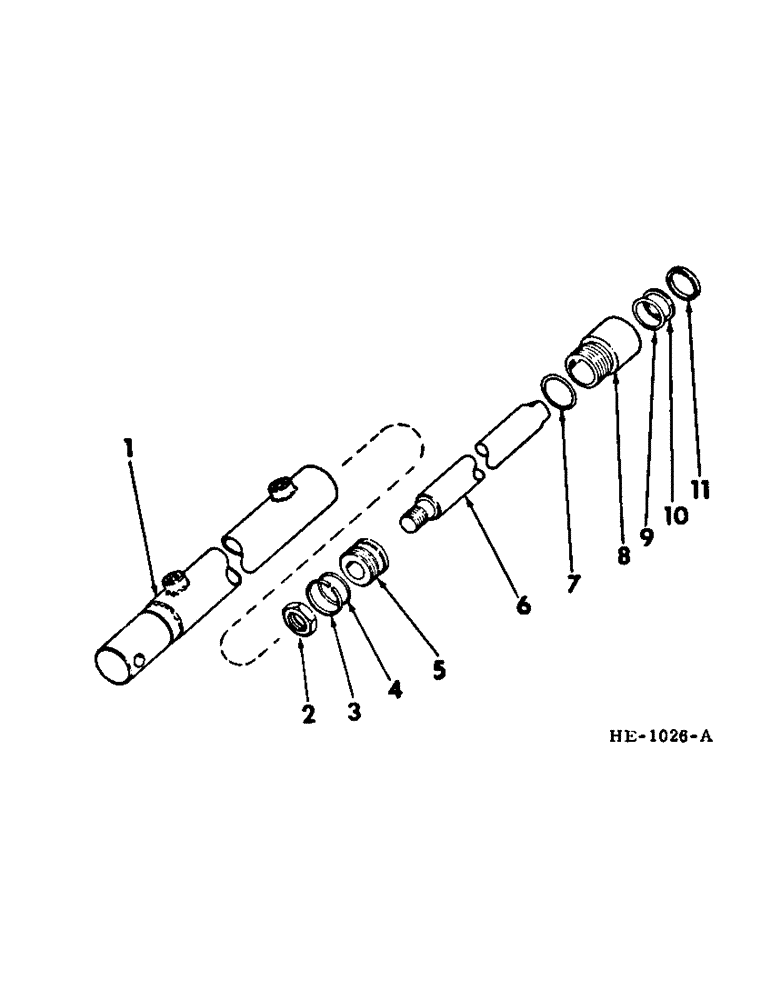

Запчасти Case IH 275 (F-66) - HYDRAULIC SYSTEM, REEL LIFT MASTER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

549956R91

CYLINDER, reel lift master hyd (opt to use 1 - 595799R92, OR 1 - 599996R91, CYLINDER) (composed of all parts listed below) (for attaching parts refer to "REEL LIFT HYDRAULIC LINES" in section "F" of this parts catalog)

1шт.

1

55970C1

BODY, master hyd cyl

1шт.

2

548033R1

JAM NUT

NUT, piston rod lk

1шт.

3

547383R1

SEAL

pistons

1шт.

4

378031R1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1-3/16 x 1-3/8 x 3/32" piston seal

1шт.

5

547333R1

PISTON

hyd cyl

1шт.

6

539966R1

ROD, hyd cyl piston

1шт.

7

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32" front head

1шт.

8

547384R1

CYLINDER HEAD

HEAD, hyd cyl front

1шт.

9

343905R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8" piston ring

1шт.

10

547385R1

WASHER

piston rod O-ring back-up

1шт.

11

547386R1

SEAL

WIPER, rod

1шт.

547388R91

PACKAGE, REPAIR

KIT, hyd cyl service, composed of, (1) O-RING 378031R1, (1) SEAL 547383R1, (1) O-RING 381885R1, (1) O-RING 343905R1, (1) WASHER 547385R1, (1) WIPER 547386R1

1шт.
