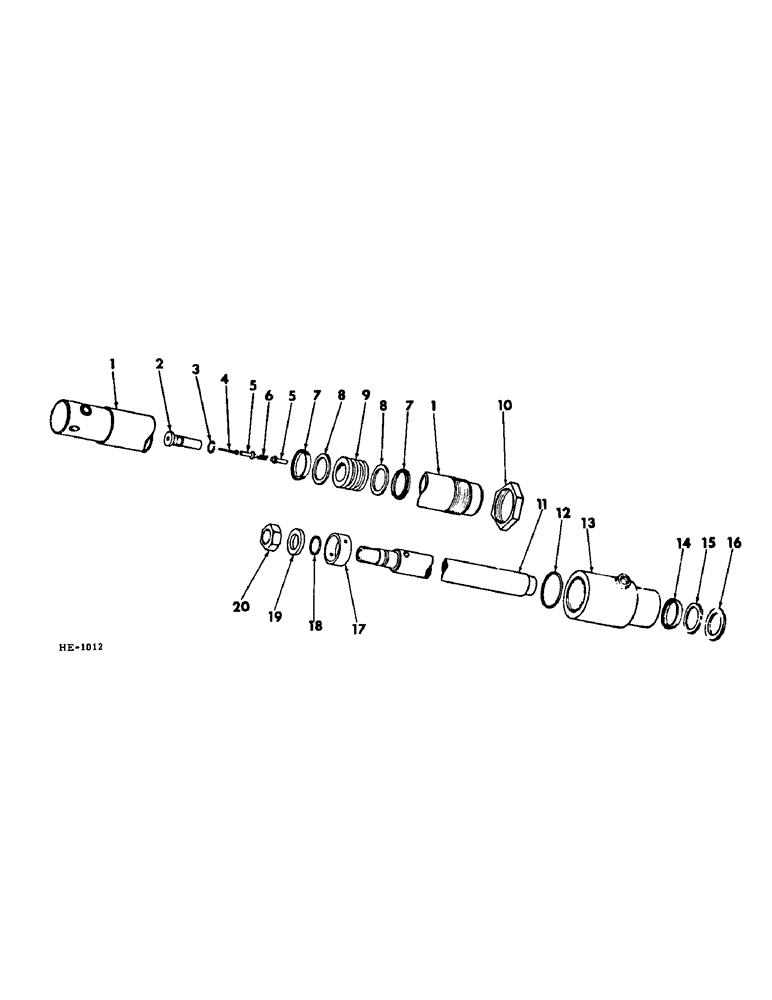

Запчасти Case IH 275 (F-65) - HYDRAULIC SYSTEM, REEL LIFT MASTER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

595799R92

CYLINDER, reel lift master hyd (opt to use 1 - 599996R91 OR 1 - 549956R91, CYLINDER) (composed of all parts listed below) (for attaching parts refer to "REEL LIFT HYDRAULIC LINES" in section "F" of this parts catalog)

1шт.

1

595800R91

SLEEVE, master hyd cyl

1шт.

2

595812R2

END, piston rod seat

1шт.

4

595813R1

PIN, piston rod seat plug

1шт.

5

632460R91

POPPET, master hyd cyl

2шт.

6

632459R1

VALVE SPRING

SPRING, master hyd cyl poppet

1шт.

7

595810R1

SEAL, plunger oil seal

2шт.

8

595809R2

WASHER, plunger

2шт.

9

595808R1

PLUNGER, master cyl

1шт.

10

467515R1

NUT, piston rod brg lk

1шт.

11

595803R2

ROD, master cyl piston

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4" - NF jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

22272R1

O-RING,1.614" ID x 1.754" OD x 0.07"

piston rod brg

1шт.

13

595804R1

BEARING, master cyl piston rod

1шт.

14

595807R1

SEAL, piston rod brg inner oil

1шт.

15

595806R2

WASHER

piston rod brg inner oil seal back-up

1шт.

16

302232R91

SEAL, piston rod brg outer dust

1шт.

17

595811R1

BUSHING, piston rod locking

1шт.

17045R1

LOCK PIN,5/32" x 1 3/8", Slotted

PIN, 5/32" x 1 3/8", Slotted

1шт.

18

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

piston rod inner

1шт.

19

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", Piston rod

1шт.

20

219758

JAM NUT,Jam, 3/4"-10, G5

3/4" piston rod jam

1шт.

595814R92

KIT, seal & O-ring repair, composed of, (1) O-ring 22272R1, (1) O-ring 350667R1, (1) O-ring 369384R1, (1) seal 302232R91, (1) seal 595807R1, (2) seal 595810R1, (1) washer 595806R2, (2) washer 595809R2

1шт.

3

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Piston rod, Seat end

1шт.
