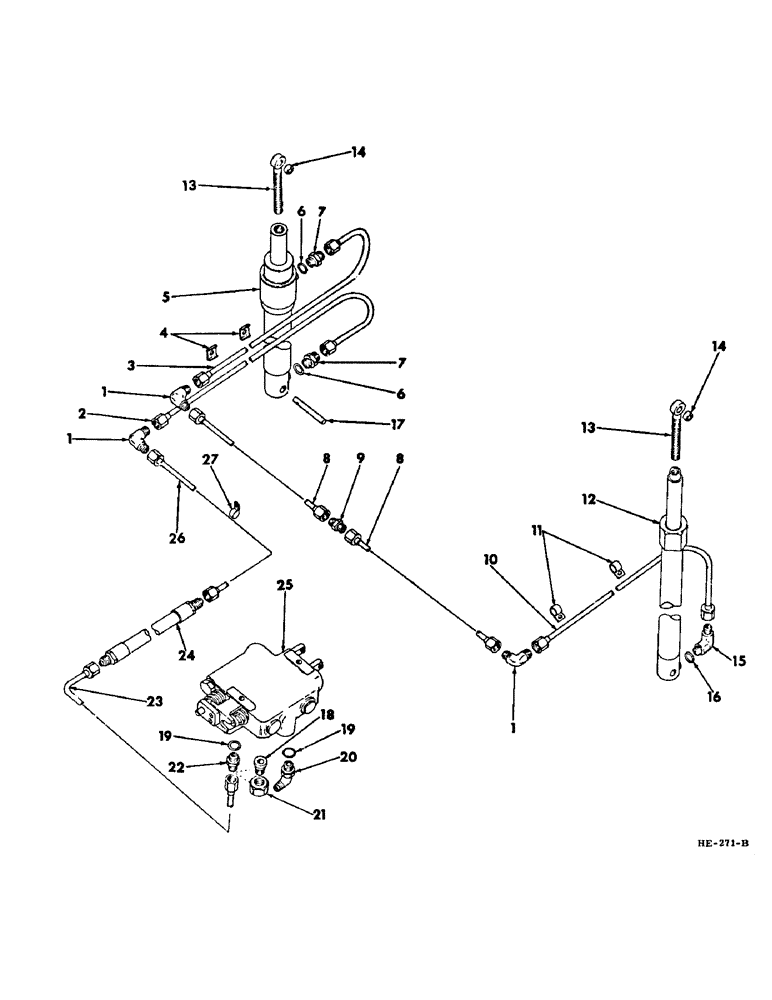

Запчасти Case IH 275 (F-62) - HYDRAULIC SYSTEM, REEL LIFT HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

9402940

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1/4" - 90 degree upper inlet tube to lower inlet tube - outlet tube to rear tube - rear tube to slave cyl tube

3шт.

2

595828R11

TUBE,1" OD, 320, 3.9" Length

master hyd cyl lower inlet

1шт.

3

595829R11

TUBE,1" OD, 29.6, 3.9" Length

master hyd cyl outlet

1шт.

4

609796R1

CLAMP, inlet & outlet tube

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

595799R92

CYLINDER, reel lift master hyd (opt to use 1 - 599996R91 OR 1 - 549956R91, CYLINDER) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT MASTER CYLINDER" in section "F" of this parts catalog)

1шт.

5

599996R91

CYLINDER, reel lift master hyd (opt to use 595799R92 OR 1 - 549956R91, CYLINDER) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT MASTER CYLINDER" in section "F" of this parts catalog)

1шт.

5

549956R91

CYLINDER, reel lift master hyd (opt to use 1 - 595799R92 OR 1 - 599996R91, CYLINDER) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT MASTER CYLINDER" in section "F" of this parts catalog)

1шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk,Tube connector

2шт.

7

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, master hyd cyl inlet & outlet tube

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Tube connector

2шт.

8

609793R12

TUBE, 10 ft dual auger & pea Windrower platform hyd rear 1" OD, 59.12, 1.5" Length

2шт.

8

609794R12

TUBE, 12 ft dual auger & hyd rear

2шт.

8

609795R12

TUBE, 14 ft dual auger & hyd rear

2шт.

8

595830R11

TUBE, 16 ft dual auger & hyd rear (for use on machine built prior to the 1972 season) 1" OD, 95.12, 1.5" Length

2шт.

9

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1/4" hyd tubes

1шт.

10

595831R11

TUBE, slave hyd cyl inlet 1" OD, 28.5, 9.3" Length

1шт.

11

140567

CLIP

CLAMP, slave hyd cyl inlet tube

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

595817R92

CYLINDER

1шт.

CYLINDER, reel lift slave hyd (for service on machines built prior to the 1970 season, order 1 - 823369C91, CYLINDER OR 1 - 549955R91, CYLINDER OR 1 - 599990R91, CYLINDER; plus 1 - 599993R91, ELBOW & 1 - 364839R1, O-RING) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT SLAVE CYLINDER" in section "F" of this parts catalog)

1шт.

12

549955R91

1шт.

CYLINDER, reel lift slave hyd (opt to use 1 - 823369C91 OR 1 - 599990C91, CYLINDER) (for use on 275 Windrower and 375 Windrower built 1970 season & since) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT SLAVE CYLINDER" in section "F" of this parts catalog)

1шт.

12

599990R91

1шт.

CYLINDER, reel lift slave hyd (opt to use 1 - 823369C91 OR 1 - 549955R91, CYLINDER) (for use on 275 Windrower and 375 Windrower built 1970 season & since) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT SLAVE CYLINDER" in section "F" of this parts catalog)

1шт.

12

823369C91

1шт.

CYLINDER, reel lift slave hyd (opt to use 1 - 549955R91 OR 1 - 599990C91, CYLINDER) (for use on 275 Windrower and 375 Windrower built 1970 season & since) (for component parts of this assembly refer to "HYDRAULIC REEL LIFT SLAVE CYLINDER" in section "F" of this parts catalog)

1шт.

13

595815R1

EYEBOLT, master & slave hyd cyl connecting

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" jam

2шт.

PG141

PIN

1/2 x 2" std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

14

127504H

SPACER, slave hyd cyl eyebolt

1шт.

15

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

90 degree slave cyl inlet tube (required for service when platform equipped w/595817R92, CYLINDER) (for use on 275 Windrower & 375 Windrower built prior to the 1970 season)

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Slave cyl elbow

1шт.

15

599993R91

ELBOW, 90 degree cyl inlet tube (require for service when platform equipped w/823369C91 OR 599990R91 OR 549955R91, CYLINDER) (for use on 275 Windrower & 375 Windrower built 1970 season & since)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, slave cylinder elbow

1шт.

16

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Slave cyl elbow (for use w/9410974, elbow)

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, slave cylinder elbow (for use w/599993R91, elbow)

1шт.

17

595816R1

PIN, master & slave hyd cyl support

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

18

9403398

REDUCER,37 Degree, 3/8" x 1/4" Tube

3/8 x 1/4" control valve (for use on 275 Windrower built prior to machine serial No. 1501) (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, control valve connector

1шт.

20

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

45 degree control valve (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 598)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, control valve elbow

1шт.

21

9403527

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT, 3/8" control valve reducer (275 Windrower built prior to machine serial No. 1501) (375 Windrower built prior to machine serial No. 201)

1шт.

22

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, control valve (275 Windrower built prior to machine serial No. 1501) (375 Windrower built prior to machine serial No. 201)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

1шт.

22

598011R1

CONNECTOR, control valve extension tube (275 Windrower w/machine serial No. 1501 & since) (375 Windrower w/machine serial No. 201 & since)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

1шт.

23

595626R1

TUBE, reel lift extension (275 Windrower prior to machine serial No. 1501)

1шт.

23

598012R1

TUBE, reel lift extension (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2275)

1шт.

23

823687C11

TUBE, reel lift extension (275 Windrower w/machine serial No. 2275 & since)

1шт.

23

595627R11

TUBE, reel lift extension (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

23

598013R1

TUBE, reel lift extension (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 598)

1шт.

23

823689C11

TUBE, reel lift extension (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

24

595628R91

HOSE ASSY.

HOSE, reel lift jumper

1шт.

25

595624R91

1шт.

VALVE, double spool hyd control (for use on 275 Windrower built prior to machine serial No. 1501) (for use on 375 Windrower built prior to machine serial No. 201) (for component parts of this assembly, refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

596408R91

VALVE

1шт.

VALVE, double spool hyd control (for service on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2275, order 1 - 825326C92, VALVE; 1 - 823686C11, TUBE & 1 - 824544C1, PLATE) (for service on 375 Windrower built w/machine serial No. 201 to machine serial No. 598, order 1 - 825326C92, VALVE; 1 - 823688C11, TUBE; 1 - 9410202, CONNECTOR & 1 - 824544C1, PLATE) (for 375 Windrower equipped w/hyd reel lift, also order 1 - 823689C11, TUBE & 1 - 598011R1, CONNECTOR) (for component parts of this asse

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

823690C91

VALVE

1шт.

VALVE, double spool hyd control (for service on 275 Windrower built w/machine serial No. 2275 to machine serial No. 2867, order 1 - 825326C92, VALVE & 1 - 824544C1, PLATE) (for service on 375 Windrower built w/machine serial No. 598 to machine serial No. 982, order 1 - 825326C92, VALVE & 1 - 824544C1, PLATE)

1шт.

598083R1

CHAIN (AG)

LINK, valve chain

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

825326C92

VALVE

hyd control (for use on 275 Windrower built w/machine serial No. 2867 & since) (for use on 375 Windrower built w/machine serial No. 982 & since)

1шт.

598083R1

CHAIN (AG)

LINK, valve chain

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

595824R11

TUBE, master hyd cyl upper inlet (for use on 10 ft dual auger & pea Windrower platform)

1шт.

26

595825R11

TUBE, master hyd cyl upper inlet (for use on 12 ft platform)

1шт.

26

595826R11

TUBE, master hyd cyl upper inlet (for use on 14 ft platform)

1шт.

26

595827R11

TUBE, master hyd cyl upper inlet (for use on 16 ft platform - built prior to the 1972 season)

1шт.

27

105245

CLIP

CLAMP, reel lift extension tube

1шт.
