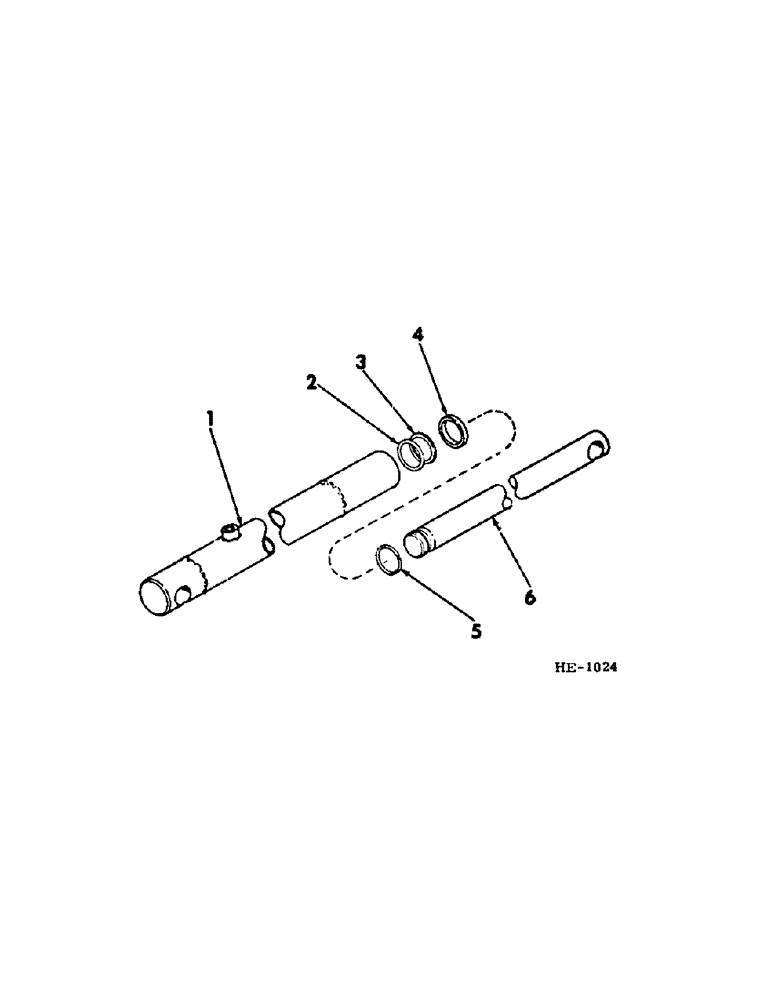

Запчасти Case IH 275 (F-59[A]) - HYDRAULIC SYSTEM, PLATFORM LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

823370C91

BODY, platform lift hyd cyl

1шт.

2

O-RING, 3/16 x 1-1/2" I.D. hyd cyl (NSS) (for service order 1 - 823375C1, KIT)

1шт.

3

WASHER, back-up (NSS) (for service order 1 - 823375C1, KIT)

1шт.

4

SEAL, wiper (NSS) (for service order 1 - 823375C1, KIT)

1шт.

5

RING, hyd cyl lk (NSS) (for service order 1 - 823375C1, KIT)

1шт.

6

823374C1

ROD, hyd cyl piston

1шт.

823375C1

SEAL KIT

KIT, hyd cyl seal repair, composed of, (NSS) (1) O-RING, (NSS) (1) O-RING, (NSS) (1) SEAL, (NSS) (1) WIPER

1шт.
