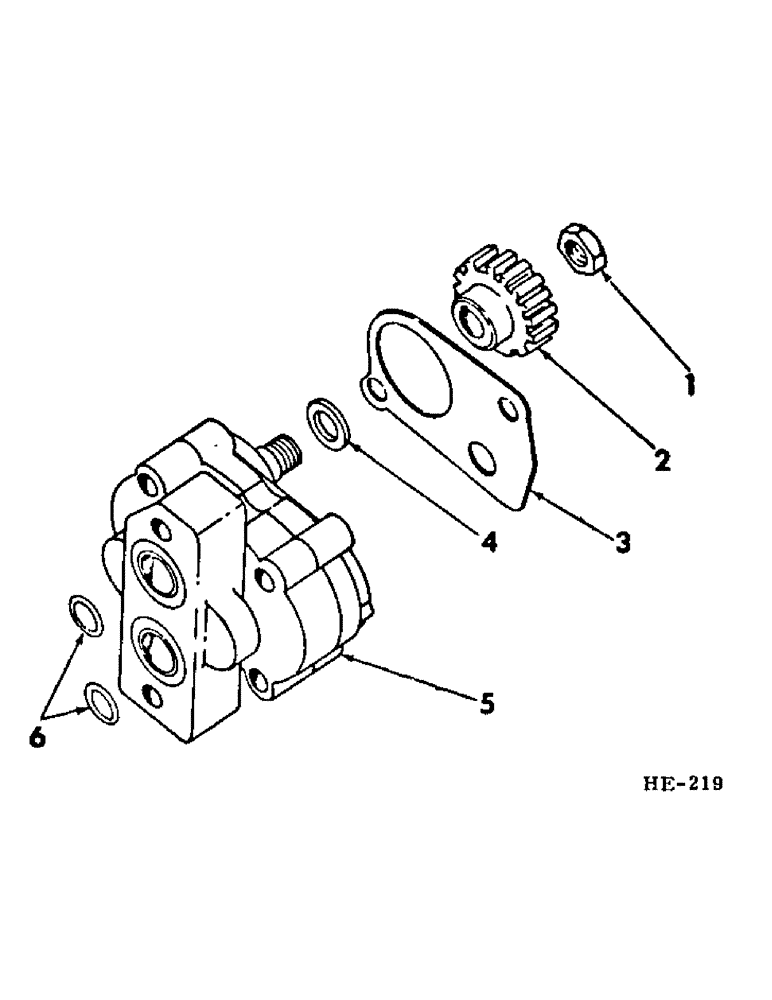

Запчасти Case IH 275 (F-58) - HYDRAULIC SYSTEM, HYDRAULIC PUMP MOUNTING AND DRIVE (07) - HYDRAULIC SYSTEM

1

17055R1

NUT, 3/8" - NF nylon insert lk

1шт.

2

350709R1

GEAR

16T hyd pump drive

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

384507R1

KEY

1/8 x 1/8 x 19/32" straight (for use w/377033R94, PUMP)

1шт.

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

(For use w/397130R91, Pump) #3, 1/8" x 1/2", HT

1шт.

3

350708R1

GASKET

hyd pump

1шт.

4

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

5

377033R94

PUMP, HYDRAULIC

PUMP, 4-1/2 gpm hyd (opt to use 1 - 397130R91, PUMP) (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

5

1949254C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

5

1949255C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

397130R91

PUMP

4-1/2 gpm hyd (opt to use 1 - 377033R94, PUMP) (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

283401R1

O-RING

hyd pump outer (for use on 275 Windrower when equipped w/377033R94, PUMP)

2шт.

6

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

hyd pump outer (for use on 275 Windrower when equipped w/397130R1, PUMP)

2шт.
