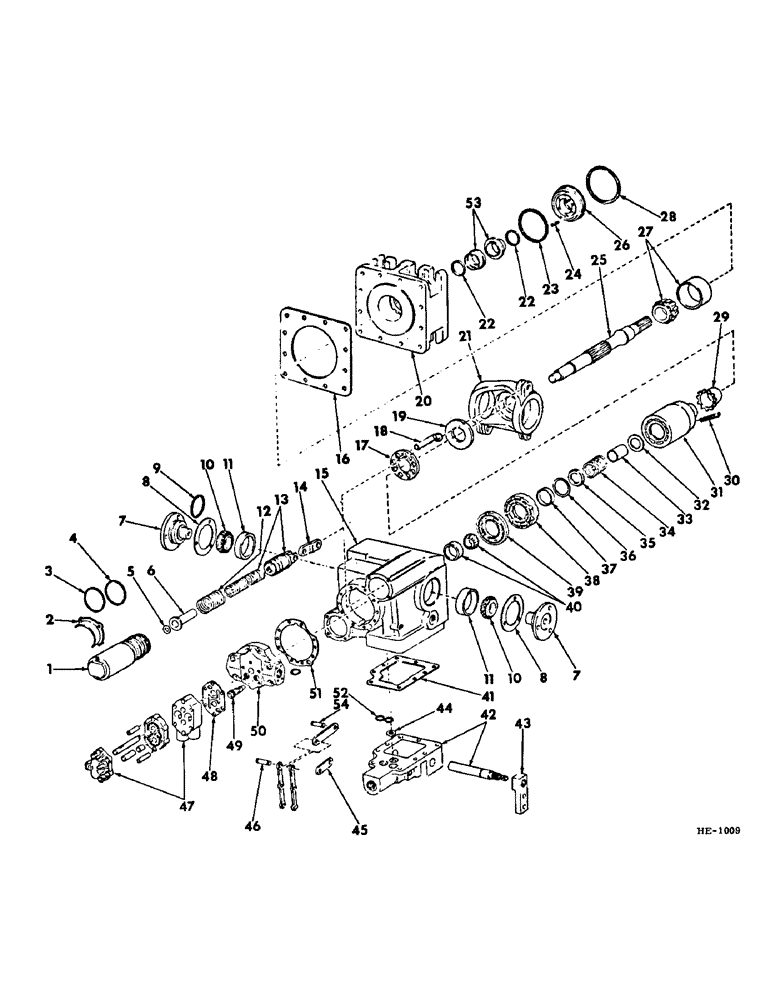

Запчасти Case IH 275 (F-56) - HYDRAULIC SYSTEM, HYDROSTATIC DRIVE PUMP (07) - HYDRAULIC SYSTEM

67805C91

PUMP

hydrostatic drive (composed of all parts listed below)

1шт.

1

403074R2

SLEEVE

servo piston

2шт.

2

394213R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

No. 10 x 3/8" self-tapping

4шт.

3

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32" servo piston sleeve front

2шт.

4

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32" servo piston sleeve rear

2шт.

5

394207R1

WASHER

servo piston bolt

2шт.

6

394211R1

GUIDE

servo piston spg

2шт.

7

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

394881R1

WASHER

13/32 x 11/16 x .106

6шт.

8

394205R91

SET

swashplate brg trunnion gasket

1шт.

9

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8" swashplate brg trunnion

2шт.

10

165963R91

BEARING

CONE, swashplate brg

2шт.

11

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

CUP, swashplate brg

2шт.

12

549726R1

SPRING

servo piston (Replaces 594726R1)

2шт.

13

529300R1

PISTON

servo (for service on 375 Windrower built prior to the 1971 season, order 1 - 537761R1, PISTON & 1 - 537762R1, SCREW)

2шт.

13

537761R1

PISTON

servo (for use on 375 Windrower built 1971 season & since)

1шт.

537762R1

SCREW

1/4 x 5/8" nylon coated cap

1шт.

539989R1

WASHER

piston bolt

2шт.

14

549725R1

LINK

servo piston

2шт.

394209R1

PIN

servo piston link (for service order 1 - 65797C1, PIN & 1 - 267805R1, RING)

4шт.

321935C1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin (for use w/394209R1, pin) #62, Ext

8шт.

65797C1

PIN

servo piston link

4шт.

267805R1

RING

servo piston link pin snap (for use w/65797C1, PIN)

8шт.

15

394179R1

HOUSING

transmission pump

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Automotive pipe Hex Soc, 1/8"-27

1шт.

9410356

PLUG

7/16" boss

3шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss plug

3шт.

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2" dowel

4шт.

16

394184R1

GASKET

pump front cover

1шт.

17

394189R1

RETAINER

piston slipper

1шт.

18

539252R1

PISTON ASSY.

PISTON, cyl block

9шт.

19

394186R3

PLATE

piston slipper thrust

1шт.

20

404778R1

COVER

transmission pump front

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

394881R1

WASHER

13/32 x 11/16 x .106

13шт.

21

405071R1

PLATE

SWASHPLATE, transmission pump

1шт.

22

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32" drive shaft face seal

2шт.

23

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8" seal retainer

1шт.

24

393882R1

SPRING

face seal retainer

6шт.

25

530679R1

SHAFT, pump drive

1шт.

404780R1

SHIM

pump shaft rear brg

1шт.

645236R1

NUT, 1/4" drive shaft

1шт.

26

393881R91

RETAINER

drive shaft face seal

1шт.

27

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

drive shaft front

1шт.

28

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , face seal 3.346", Int, #334

1шт.

29

394188R1

GUIDE

piston slipper

1шт.

30

394191R1

SPRING

slipper retainer (for use on 375 Windrower built prior to machine serial No.)

9шт.

30

67789C1

SPRING

slipper retainer (for use on 375 Windrower built w/machine serial No. & since)

6шт.

31

67788C91

BLOCK, piston cyl

1шт.

32

394192R1

SEAT

piston cyl block spg

1шт.

33

394193R1

BUSHING

drive shaft rear spg

1шт.

34

532290R2

SPRING

cyl block

1шт.

35

394195R1

RETAINER

drive shaft rear spg

1шт.

36

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, rear spg retainer

1шт.

37

394197R1

RING

cyl block brg plate pilot

1шт.

38

399406R1

PLATE

cyl block brg

1шт.

527636R1

PIN

cyl block brg plate

1шт.

39

530770R1

LARGE PLATE

PLATE, cyl block valve LH

1шт.

40

394200R1

BEARING, drive shaft rear pilot

1шт.

41

394237R2

GASKET

control valve housing

1шт.

42

533855R91

VALVE, drive pump control (for component parts of this assembly refer to "DRIVE PUMP CONTROL VALVE" in section "F" of this parts catalog)

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4 x 2-1/4"

9шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

43

404782R1

HANDLE

control valve shaft (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

404783R1

SPACER

valve handle

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

LK-WASHER, 1/4" ext-t

1шт.

44

394219R1

PLUG

control valve orifice

1шт.

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16"

1шт.

45

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link

1шт.

394215R1

PIN

control valve link

1шт.

46

404781R1

PIN

control valve pivot

1шт.

385180R1

WASHER

9/32 x 1/2 x .065

1шт.

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , link pin #25, Ext, E-Type

2шт.

137130

PIN

C-PIN, 1/16 x 7/16"

1шт.

47

405073R91

HYDROSTATIC PUMP

PUMP, hydrostatic charge

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

1шт.

48

533858R1

GASKET

pump end cover

1шт.

49

394238R91

VALVE

charge pump check

2шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

check valve

2шт.

50

530731R1

CAP

pump rear end

1шт.

394825R1

DOWEL

PIN, 5/16 x 5/8" dowel

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

end cover

1шт.

51

394218R1

GASKET

pump rear end cover

1шт.

52

370920R1

O-RING,1/2" ID

control valve housing

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8" O.D. relief valve plug

1шт.

53

403072R91

SEAL KIT

PACKAGE, drive shaft o-ring & seal, composed of, (1) O-RING 707220R1, (2) O-RING 26078R1, (6) SPRING 393882R1

1шт.

54

394215R1

PIN

control valve link front

1шт.
