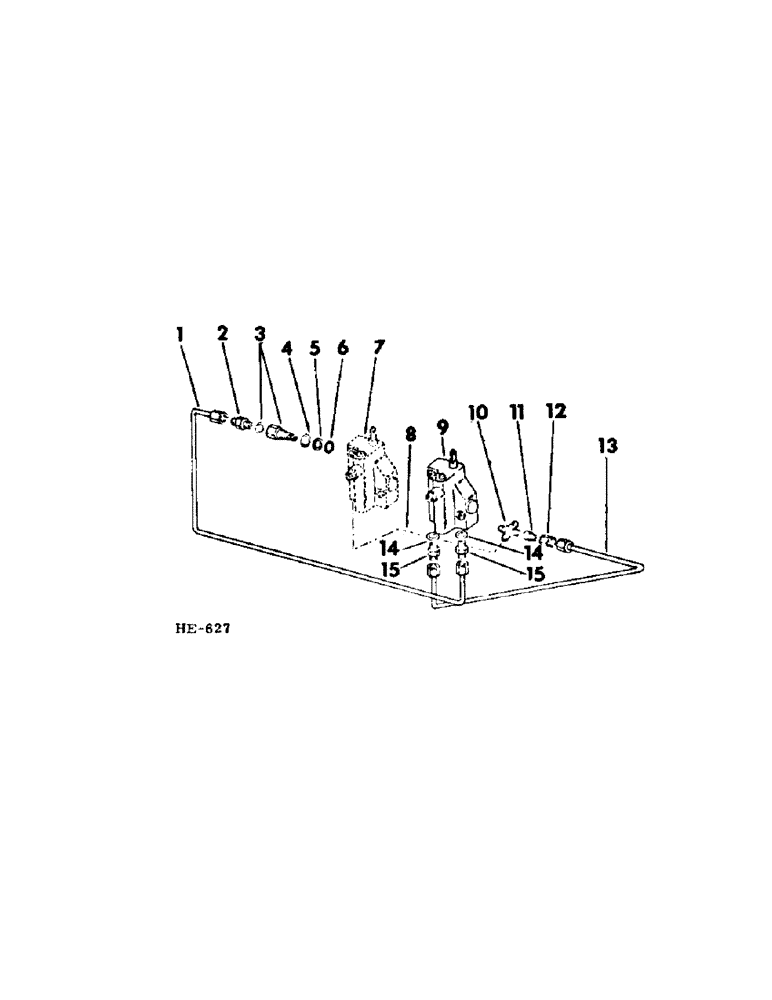

Запчасти Case IH 275 (N-20) - PARTS ACCESSORIES AND ATTACHMENTS, VARIATOR GROUND DRIVE AND REEL DRIVE HYDRAULICS Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
598654R11
TUBE, ground speed to reel speed valves high pressure
1шт.
2
9410202
HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring
UNION, 3/8" short swivel auxiliary valve
1шт.
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, auxiliary valve union
1шт.
3
597877R1
PLUG
main or auxiliary valve pressure beyond adaptor
1шт.
4
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
adaptor plug
1шт.
5
598644R1
WASHER
O-RING back-up adaptor plug
1шт.
6
370920R1
O-RING,1/2" ID
adaptor plug
1шт.
7
596409R92
VALVE
ground speed hyd control (for component parts of this assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)
1шт.
For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY
1шт.
8
598576R11
TUBE, auxiliary valve to main valve hyd connection (also refer to "HYDRAULIC VARIATOR-special" in section "N" of this parts catalog)
1шт.
9
596409R91
VALVE
reel speed hyd control (for component parts of this assembly, refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)
1шт.
180042
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
BOLT, 1/4 x 1-3/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
9403177
4 WAY CONNECTION,3/4"-16, 37 Degree
CROSS, 1/2" main valve (275 Windrower w/hyd variator) (375 Windrower)
1шт.
11
9403400
REDUCER,37 Degree, 1/2" x 3/8" Tube
1/2 to 3/8"
1шт.
12
9403528
TUBE NUT,37 Degree, 3/4"-16, Type B
NUT, reducer tube
1шт.
13
598653R11
TUBE, reel valve to junction return
1шт.
14
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, reel speed valve union
2шт.
15
9410202
HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring
UNION, 3/8" short swivel auxiliary valve
2шт.
Выбрано товаров: 20
