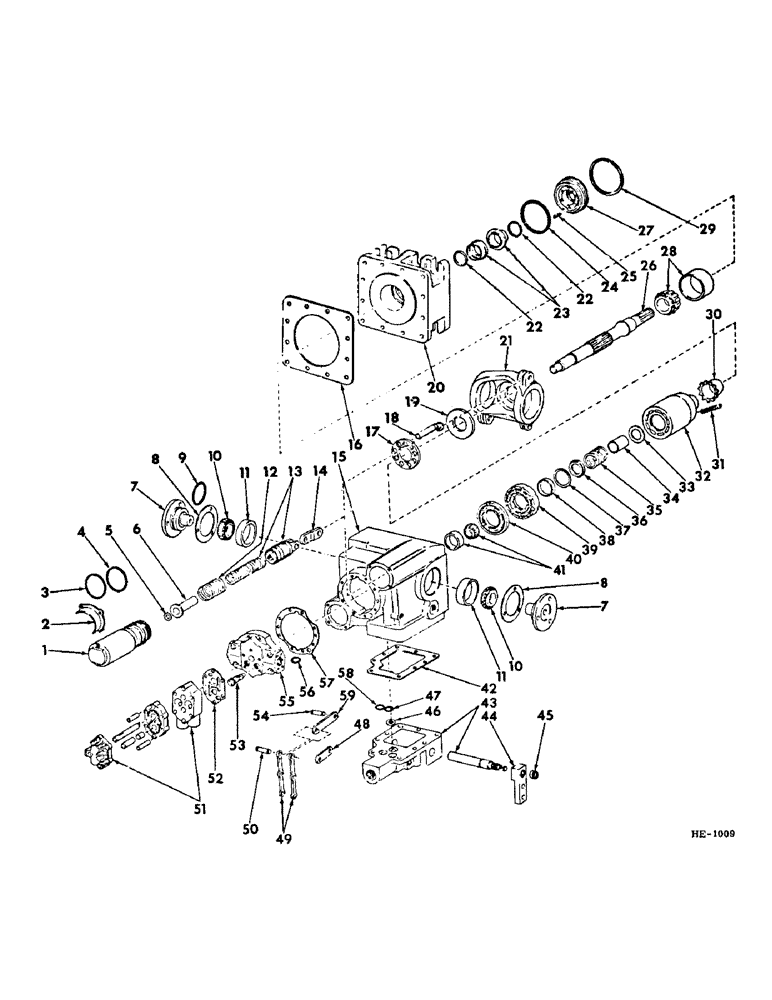

Схема запчастей Case IH 275 - (F-52) - HYDRAULIC SYSTEM, HYDROSTATIC DRIVE PUMP (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

PUMP, hydrostatic drive (for service on 375 Windrower built prior to machine serial No. 208, order 1 - 67791C91, PUMP; 1 - 596416R1, PULLEY & 1 - 645236R1, NUT)

1шт.

67791C91

PUMP

hydrostatic drive (RENEWED) (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701) (composed of all parts listed below, unless otherwise noted)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

Not part of pump assembly.

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

Not part of pump assembly.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Not part of pump assembly.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Not part of pump assembly.

1шт.

1

596344R1

SLEEVE, servo piston (for service order 1 - 530651R1, KIT)

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1/16" automotive drain

4шт.

1

530651R1

KIT, piston sleeve

2шт.

2

596345R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

No. 10 x 3/8" self-tapping

4шт.

3

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/8 x 3/32" servo piston sleeve front

2шт.

4

21480R1

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2 x 2-3/16 x 3/32" servo piston sleeve rear

2шт.

5

394207R1

WASHER

servo piston bolt

2шт.

6

596341R1

GUIDE, servo piston spg

2шт.

7

596337R1

TRUNNION, swashplate brg

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

8

596338R91

SET, swashplate brg trunnion gasket

1шт.

9

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8" swashplate trunnion brg

2шт.

10

50214VA

CRANKSHAFT BEARING

BEARING, swashplate

2шт.

11

NOT USED

1шт.

12

549691R1

SPRING

servo piston

2шт.

13

596339R1

PISTON, servo (for service order 1 - 549729R1, KIT)

2шт.

24584R1

SCREW, 1/4 x 1/2" 12 pt cap

2шт.

13

549729R1

PISTON

KIT, servo piston

2шт.

14

67861C1

LINK

servo piston

2шт.

596343R1

PIN, servo piston (for service order 1 - 65796C1, PIN & 1 - 971043R1, RING)

4шт.

65796C1

PIN

servo piston link

4шт.

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , piston link (for use w/596343R1 pin) #50, Ext, Crescent

8шт.

971043R1

SNAP RING,#50, Ext

Piston link (For use w/65796C1, pin) #50, Ext

8шт.

15

596329R1

HOUSING, transmission pump

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Automotive pipe Hex Soc, 1/8"-27

1шт.

9410356

PLUG

7/16" o-ring boss

3шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4" O.D. plug

3шт.

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2" dowel

4шт.

16

596333R1

GASKET

drive pump front cover

1шт.

17

394155R1

RETAINER

cyl block piston slipper

1шт.

18

539256R1

PISTON ASSY

PISTON, cyl block

9шт.

19

596335R3

PLATE

piston slipper thrust

1шт.

20

596332R1

COVER, drive pump front

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

394881R1

WASHER

13/32 x 11/16 x .106

13шт.

21

596334R1

SWASHPLATE, drive pump

1шт.

22

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32" drive shaft face seal

2шт.

23

SEAL, drive shaft face (NSS) (for service order 1 - 403072R92, PACKAGE)

1шт.

23

403072R92

O-RING KIT

o-ring & seal service

1шт.

24

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8" seal retainer

1шт.

25

393882R1

SPRING

drive shaft face seal retainer

6шт.

26

SHAFT, pump drive (for service on 375 Windrower built prior to machine serial No. 208, order 1 - 401966R1, SHAFT & 1 - 645236R1, NUT)

1шт.

26

401966R1

SHAFT, pump drive (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701)

1шт.

645236R1

SHAFT, 1/4" drive shaft

1шт.

27

393881R91

RETAINER

drive shaft face seal

1шт.

28

394150R91

BEARING, ROLLER

BEARING, drive shaft front

1шт.

29

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , face seal 3.346", Int, #334

1шт.

30

394154R1

GUIDE

cyl block piston slipper

1шт.

31

394157R1

SPRING

piston cyl block

9шт.

32

394156R91

CYLINDER BLOCK

BLOCK, piston cyl

1шт.

33

394158R1

SEAT

piston cyl block spg

1шт.

34

394159R1

GUIDE

BUSHING, drive shaft rear spg

1шт.

35

532302R2

SPRING

cyl block

1шт.

36

394161R1

RETAINER

drive shaft rear spg

1шт.

37

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING, rear spg retainer snap

1шт.

38

394162R1

RING

cyl block brg plate pilot

1шт.

39

404201R1

PLATE

cyl block brg

1шт.

394164R1

PIN

block brg plate

1шт.

40

530767R1

PLATE

cyl block valve LH

1шт.

41

394166R91

BEARING ASSY,0.75" ID x 2.125" OD x 0.878, 0.625"

BEARING, drive shaft rear pilot

1шт.

42

394237R2

GASKET

control valve housing

1шт.

43

533855R91

VALVE, drive pump control (for component parts of this assembly refer to "DRIVE PUMP CONTROL VALVE" in section "F" in this parts catalog)

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

2шт.

702222

SUPPORT

SCREW, 1/4 x 2-1/4" cap

7шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

44

153869C1

HANDLE

control valve shaft (for service on 375 Windrower built prior to machine serial No. 208, order 1 - 404782R1, HANDLE; 1 - 404783R1, SPACER & 1 - 121753, WASHER)

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

LK-WASHER, 1/4" ext-t

1шт.

4

404782R1

HANDLE

control valve shaft (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701)

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

LK-WASHER, 1/4" ext-t

1шт.

45

404738R1

GAUGE

SPACER, control valve handle

1шт.

46

394219R1

PLUG

control valve orifice

1шт.

47

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16" control valve orifice

1шт.

48

394214R1

LINK

control valve

1шт.

394215R1

PIN

valve link front

1шт.

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , valve link pin #25, Ext, E-Type

2шт.

49

394233R1

LINK, control valve

1шт.

50

404781R1

PIN

pivot

1шт.

385180R1

WASHER

9/32 x 1/2 x .065"

1шт.

137130

PIN

C-PIN, 1/16 x 7/16"

1шт.

51

405073R91

HYDROSTATIC PUMP

PUMP, hydrostatic charge

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065"

4шт.

52

533858R1

GASKET

pump end cover

1шт.

53

394238R91

VALVE

charge pump check

2шт.

54

394215R1

PIN

control valve link front

1шт.

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , link pin #25, Ext, E-Type

2шт.

55

530730R1

CAP, transmission pump

1шт.

394825R1

DOWEL

PIN, 5/16 x 5/8" dowel

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106"

9шт.

56

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16" pump end cover

1шт.

57

394170R1

GASKET

pump rear end cover

1шт.

58

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16" control valve housing

2шт.

59

406903R1

LINK

valve handle shaft

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8" O.D. relief valve plug

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16" charge pump check valve

1шт.

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , valve handle shaft link #25, Ext, E-Type

1шт.

404197R1

SHIM

pump shaft rear brg

1шт.

403072R92

O-RING KIT

o-ring & seal service, composed of, (2) O-RING 26078R1, (6) SPRING 393882R1, (1) O-RING 707220R1

1шт.
