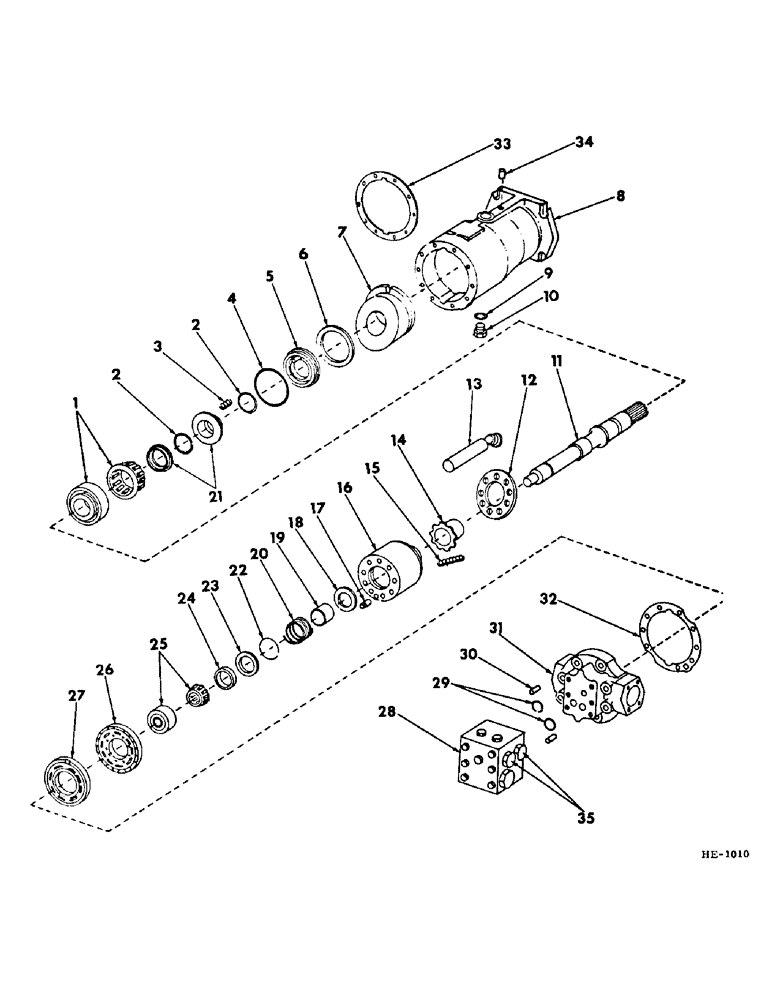

Запчасти Case IH 275 (F-48) - HYDRAULIC SYSTEM, HYDROSTATIC DRIVE MOTOR (07) - HYDRAULIC SYSTEM

67807C91

MOTOR, hydrostatic drive (RENEWED) (composed of all parts listed below, unless otherwise noted) (for attaching parts refer to "HYDROSTATIC DIFFERENTIAL DRIVE" in section "B" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

drive shaft front

1шт.

2

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32" shaft face seal

2шт.

3

393882R1

SPRING

seal retainer

6шт.

4

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8" face seal retainer

1шт.

5

393881R1

RETAINER, drive shaft face seal

1шт.

6

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , face seal 3.346", Int, #334

1шт.

7

405097R1

HOUSING

SWASH PLATE, motor

1шт.

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4" dowel

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

8

405095R1

HOUSING

drive motor

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32" motor housing plug

1шт.

10

9410360

PLUG

7/8" - NF motor housing hose

1шт.

11

405096R1

SHAFT

motor drive

1шт.

12

394189R1

RETAINER

piston slipper

1шт.

13

539252R1

PISTON ASSY.

PISTON, cyl block

9шт.

14

394188R1

GUIDE

piston slipper

1шт.

15

394191R1

SPRING

slipper retainer (for use on 375 Windrower built prior to machine serial No.

9шт.

15

67789C1

SPRING

slipper retainer (for use on 375 Windrower built w/machine serial No. & since)

1шт.

16

67788C1

BLOCK

piston cyl

1шт.

17

527636C1

AXLE PIN

PIN, cyl block brg plate

1шт.

18

394192R1

SEAT

piston cyl block spg

1шт.

19

394193R1

BUSHING

drive shaft rear spg

1шт.

20

532290R2

SPRING

cyl block

1шт.

21

403072R92

O-RING KIT

KIT, drive shaft face seal, composed of, (2) O-RING 26078R1, (6) SPRING 393882R1, (1) O-RING 707200R1

1шт.

22

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, rear spg retainer snap

1шт.

23

394195R1

RETAINER

drive shaft rear spg

1шт.

24

394197R1

RING

cyl block brg plate pilot

1шт.

25

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

drive shaft rear pilot

1шт.

26

399406R1

PLATE

cyl block brg

1шт.

27

530771R1

PLATE

cyl block valve

1шт.

394825R1

DOWEL

PIN, 5/16 x 5/8" dowel

1шт.

28

394171R91

VALVE

hyd motor manifold (for component parts of this assembly refer to "HYDROSTATIC MANIFOLD VALVE" in section "F" of this parts catalog)

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

29

393886R1

WASHER

WASHER, manifold valve housing pressure port

2шт.

30

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2" end cover

2шт.

31

530732R1

COVER

CAP, drive motor rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

32

394218R1

GASKET

end cover manifold

1шт.

33

404780R1

SHIM

motor shaft rear brg

1шт.

34

444687

PLUG,Hex Soc, 1/8"-27

Drive motor Hex Soc, 1/8"-27

1шт.

35

405113R91

VALVE, manifold high pressure relief

2шт.
