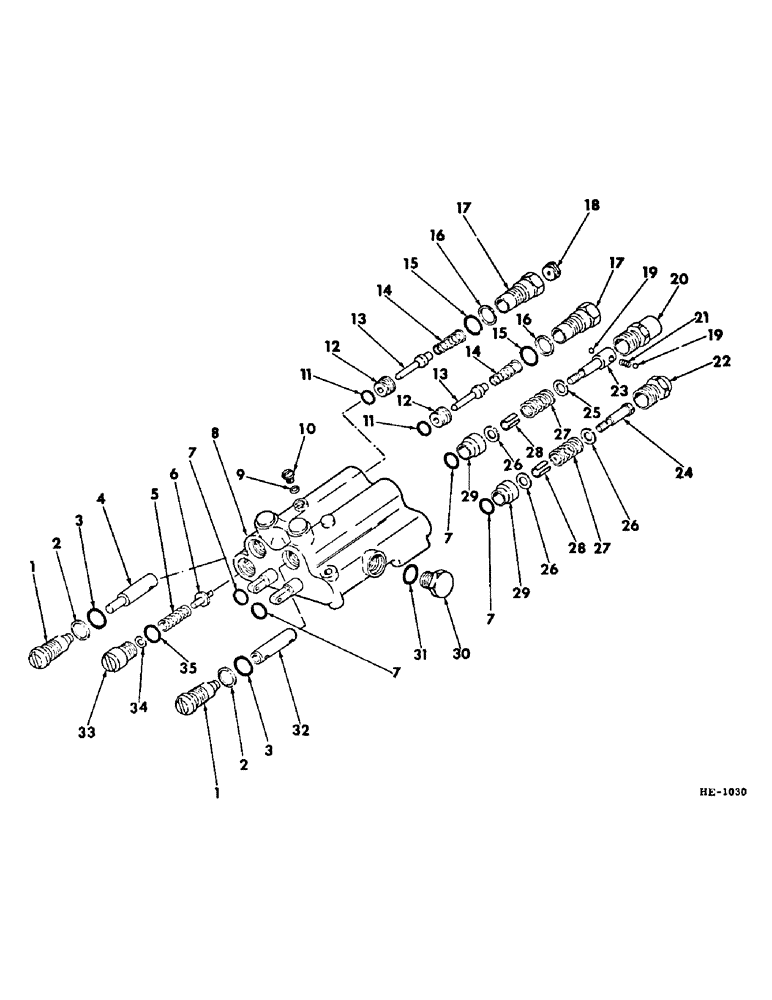

Запчасти Case IH 275 (F-40) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, DOUBLE SPOOL TYPE (07) - HYDRAULIC SYSTEM

823690C92

VALVE

double spool hyd control (composed of all parts listed below) (for service of the complete valve, refer to NOTE for the applicable machine)

1шт.

1

674515R91

PLUG

lockout (includes 1 - 350429R1, O-RING & 1 - 673644R1, WASHER)

2шт.

2

673644R1

WASHER

WASHER, o-ring lockout plug

2шт.

3

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

lockout plug

2шт.

4

825235C1

PLUNGER, unloading

1шт.

5

673751R1

SPRING

relief

1шт.

6

674501R1

VALVE POPPET

POPPET, valve spg

1шт.

7

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

valve spool

4шт.

8

HOUSING & SPOOL, control valve (NSS) (for service order 1 - 823690C92, VALVE or, Serial Range: refer-NOTE)

1шт.

9

3046105R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

valve housing plug

1шт.

10

825226C91

PLUG

control valve housing (includes 1 - 3046105R1, O-RING)

1шт.

11

370920R1

O-RING,1/2" ID

lockout seat

2шт.

12

674505R91

SEAT

lockout (includes 1 - 370920R1, O-RING)

2шт.

13

588351R91

VALVE

POPPET, control valve

2шт.

14

674509R1

SPRING

poppet

2шт.

15

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

port adaptor plug

2шт.

16

673644R1

WASHER

WASHER, o-ring back-up

2шт.

17

674507R91

PLUG

port adaptor (includes 1 - 350429R1, O-RING 1 - 673644R1, WASHER)

2шт.

18

596300R1

PLATE

orifice

1шт.

19

17005R1

BALL,5/32" Dia

5/32" steel detent

4шт.

20

CAP, detent (NSS) (for service order 1 - 201999C91, service KIT)

1шт.

142024

PLUG, cap button

1шт.

21

201737C1

SPRING

detent

2шт.

22

674493R91

CAP

valve housing spool

1шт.

23

SCREW, detent (NSS) (for service order 1 - 201999C91, service KIT)

1шт.

24

674491R1

SCREW

housing spool

1шт.

25

674502R1

WASHER

spg outer

1шт.

26

673628R1

WASHER

spg

3шт.

27

674490R1

SPRING

spool centering

2шт.

28

674492R1

SPACER

detent screw

2шт.

29

674775R1

BUSHING

spool

2шт.

30

674510R91

PLUG

control valve housing power beyond (includes 1 - 350429R1, O-RING)

1шт.

31

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

power beyond plug

1шт.

32

588352R1

PLUNGER

lockout

1шт.

33

598423R1

PLUG

relief valve

1шт.

33

674497R91

PLUG, relief valve (includes 1 - 598423R1, PLUG & 1 - 352221R1, O-RING)

1шт.

34

674504R1

WASHER

SHIM, .015" spg adjusting

1шт.

34

394655R1

WASHER

SHIM, .010" spg adjusting

1шт.

34

673647R1

WASHER

SHIM, .035" spg adjusting

1шт.

35

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

relief valve plug

1шт.

825236C91

KIT

seal repair

1шт.

201999C91

KIT

four ball detent service, composed of, (4) BALL 17005R1, (1) BUSHING 674775R1, (NSS) (1) CAP, (2) O-RING 252739R1, (1) PLUG 142024, (NSS) (1) SCREW, (2) SPRING 201737C1, (1) SPRING 674490R1, (2) WASHER 673628R1, (1) WASHER 674502R1

1шт.
