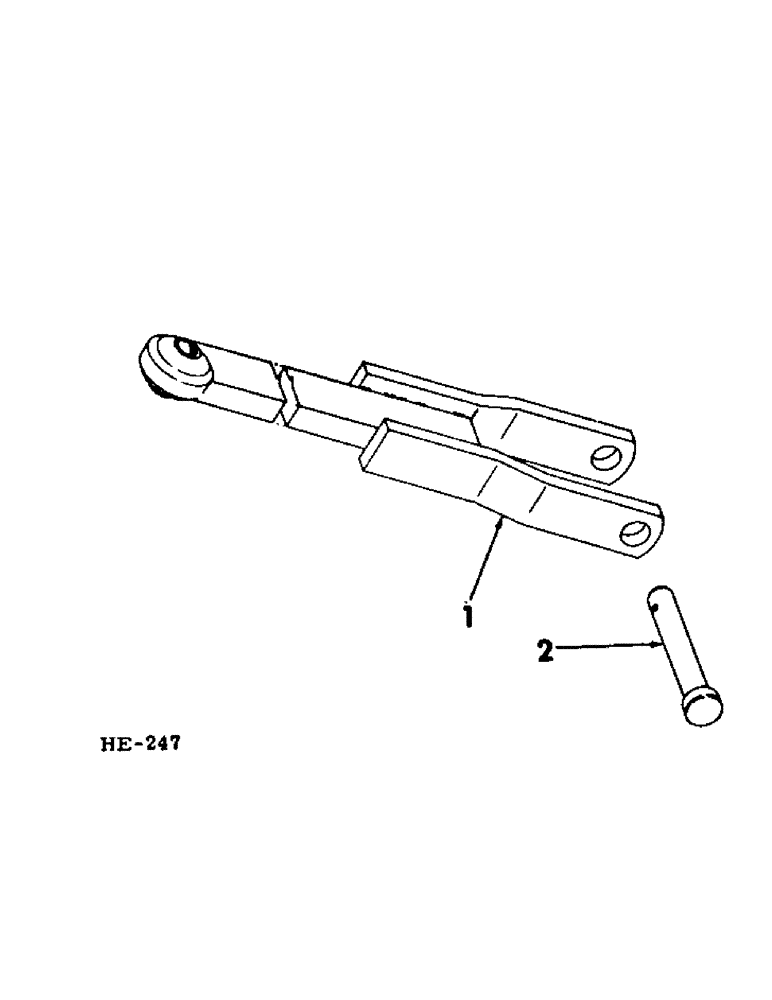

Запчасти Case IH 275 (N-19) - PARTS ACCESSORIES AND ATTACHMENTS, TRANSPORT HITCH Accessories & Attachments

1

617397R92

1шт.

BAR, tow (for 275 Windrower, when service stock is exhausted order 1 - 823042C91, BAR) (for 375 Windrower, built prior to machine serial No. 811, when service stock is exhausted order 1 - 823042C91, BAR) (for 375 Windrower built w/machine serial No. 811 & since, order 1 - 823042C91, BAR)

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

1

823042C91

BAR, tow (for use on 275 Windrower & 375 Windrower built 1971 season to 1972 season)

1шт.

825528C1

BOLT, tow bar

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" sltd-hex

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

2

652296R1

PIN

3/4 x 4-1/2" std-hd-dld (for use w/617397R92, BAR)

1шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

1шт.
