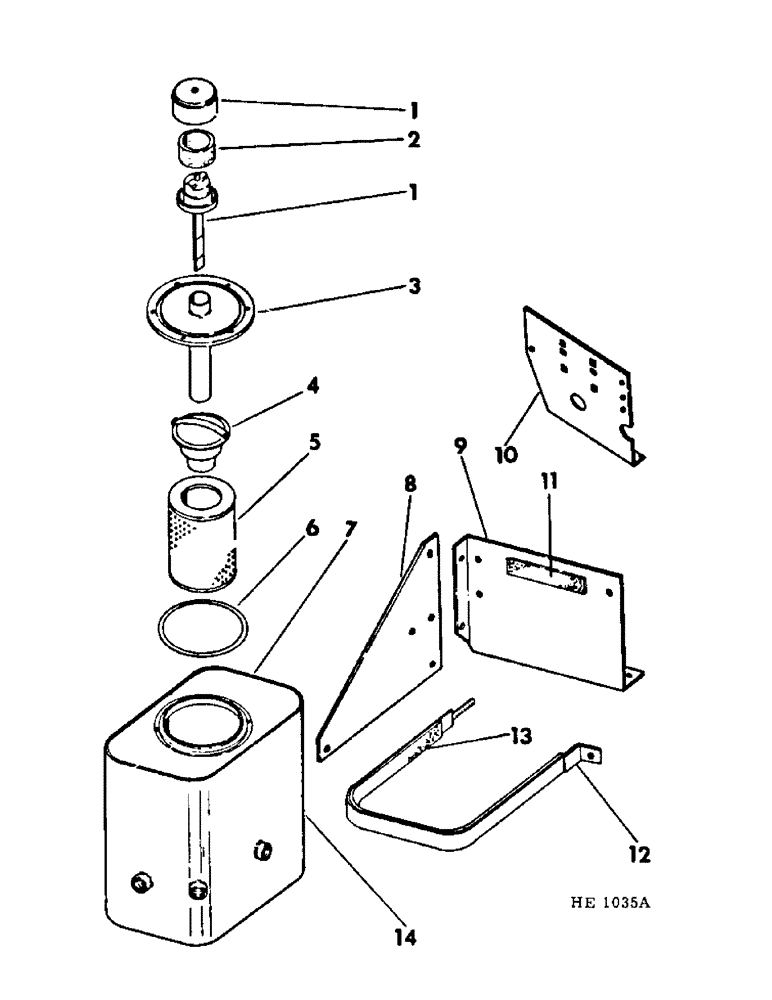

Запчасти Case IH 275 (F-19) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR AND MOUNTING (07) - HYDRAULIC SYSTEM

1

167461C91

CAP

reservoir dipstick & filter (includes 1 - 167852C1, FILTER)

1шт.

2

167852C1

FILTER, dipstick cap micron

1шт.

3

172004C1

COVER, reservoir top

1шт.

4

386121R92

VALVE

reservoir relief

1шт.

5

386120R91

FILTER CARTRIDGE

ELEMENT, oil reservoir

1шт.

6

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

reservoir top cover

1шт.

7

BODY, hyd oil reservoir (NSS) (for service order 1 - 160993C91, RESERVOIR)

1шт.

8

823751C1

PLATE, support gusset

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

9

823755C1

SUPPORT, oil reservoir (includes reservoir PAD) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

827132C1

SUPPORT, hyd oil reservoir & air cleaner (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

PAD, reservoir support 3 ply 1 x 6" canvas webbing (dealer to supply from bulk stock part number 990538R1)

1шт.

12

823752C1

STRAP, reservoir hold down (includes strap PAD) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

827075C91

STRAP, reservoir hold down (for use on 375 Windrower, built w/machine serial No. 2000 & since)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

PAD, reservoir hold down strap 1 x 27" canvas webbing (dealer to cut & supply from bulk stock part number 990538R1) (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 2000)

1шт.

13

PAD, reservoir hold down strap 1 x 24" canvas webbing (dealer to cut & supply from bulk stock part number 990538R1) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

14

160993C91

RESERVOIR, hyd. oil, composed of, (NSS) (1) BODY, (1) CAP 167461C91, (1) COVER 172004C1, (1) ELEMENT 386120R91, (1) O-RING 21295R1, (1) VALVE 386121R92

1шт.
