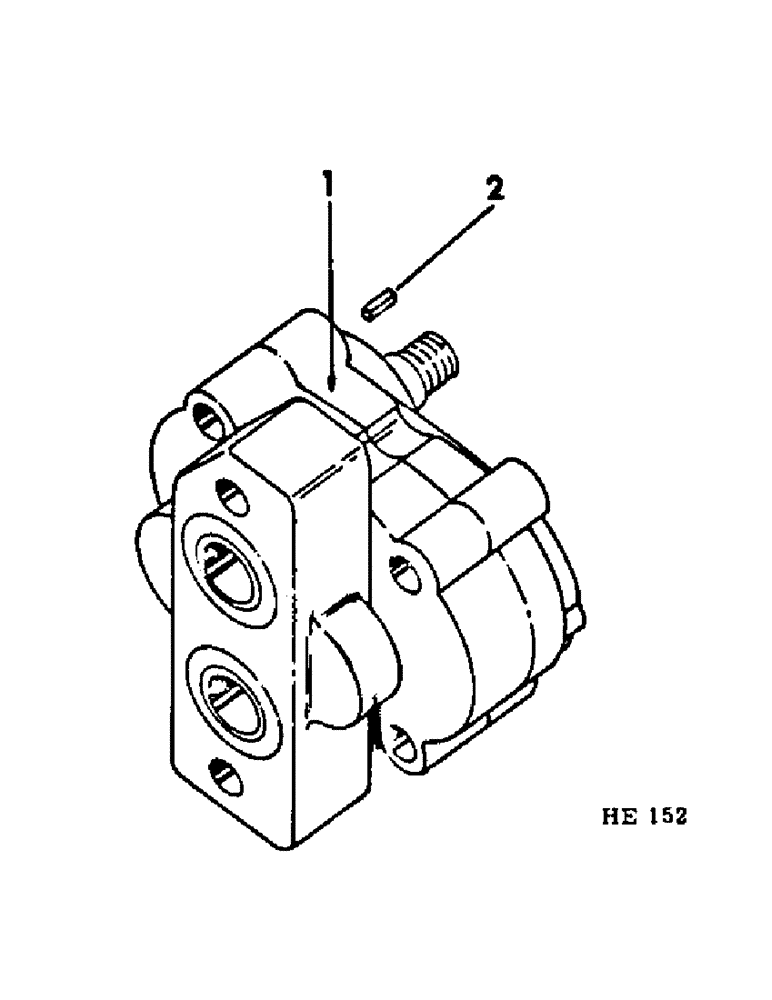

Запчасти Case IH 275 (F-15) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON-RAND (07) - HYDRAULIC SYSTEM

1

397130R91

PUMP

4-1/2 gpm hyd (Thompson-Rand) (composed of all parts listed below, unless otherwise noted) (opt to use 1 - 377033R94, PUMP)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

368634R92

PACKAGE, hyd pump o-ring & seal service, composed of, (NSS) (1) GASKET, (NSS) (2) O-RING, (NSS) (1) O-RING, (NSS) (1) O-RING, (1) OIL SEAL, (2) WASHER

1шт.
