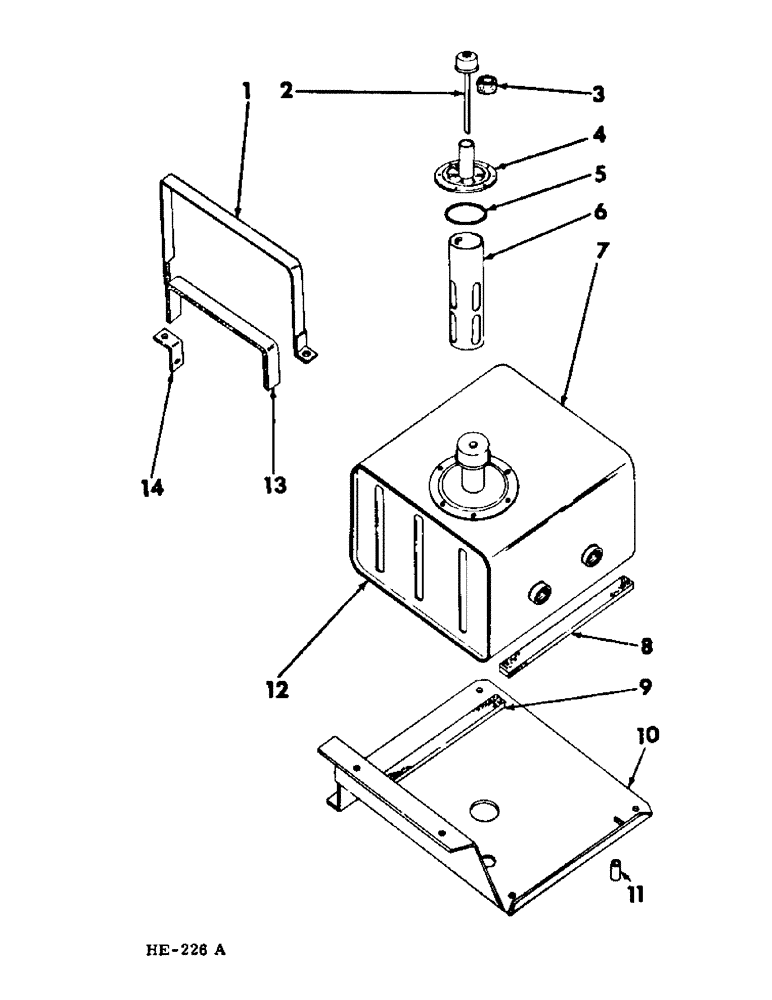

Запчасти Case IH 275 (F-13) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR AND MOUNTING (07) - HYDRAULIC SYSTEM

1

596005R11

STRAP, oil reservoir hold down (includes canvas webbing from bulk stock part number 990538R1)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

159857C91

CAP, breather & dipstick (includes 1 - 167852C1, FILTER)

1шт.

3

167852C1

FILTER, micron reservoir cap

1шт.

4

155676C91

COVER, hyd oil reservoir

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

5

574013R1

GASKET, reservoir cover

1шт.

6

155673C91

CARTRIDGE, reservoir screen

1шт.

7

BODY, hyd oil reservoir (NSS) (for service order 1 - 595382R91, RESERVOIR)

1шт.

8

597883R1

PAD, oil reservoir (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

2шт.

9

PAD, oil reservoir support (1 x 11" 3 ply canvas webbing) (dealer to cut & supply from bulk stock part number 990538R1) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

2шт.

10

595383R1

SECTION, oil reservoir support (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

114-228

BOLT,Hex, 3/8" - 24 x 3", Gr 5

3/8 x 3"

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

23885K

SPACER,3/4" Tube x 2 1/16"

oil reservoir support section mounting (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

114-228

BOLT,Hex, 3/8" - 24 x 3", Gr 5

3/8 x 3"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

595382R91

RESERVOIR, hyd oil, composed of, (NSS) (1) body, (1) cap 159857C91, (1) cartridge 155673C91, (1) cover 155676C91, (1) filter 167852C1, (1) gasket 574013R1, (6) lockwasher 120217, (6) nut 120361

1шт.

13

PAD, oil reservoir hold down strap (1 x 34" 3 ply canvas webbing) (dealer to cut & supply from bulk stock part number 990538R1)

2шт.

14

597885R1

ANGLE, reservoir hold down strap (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
