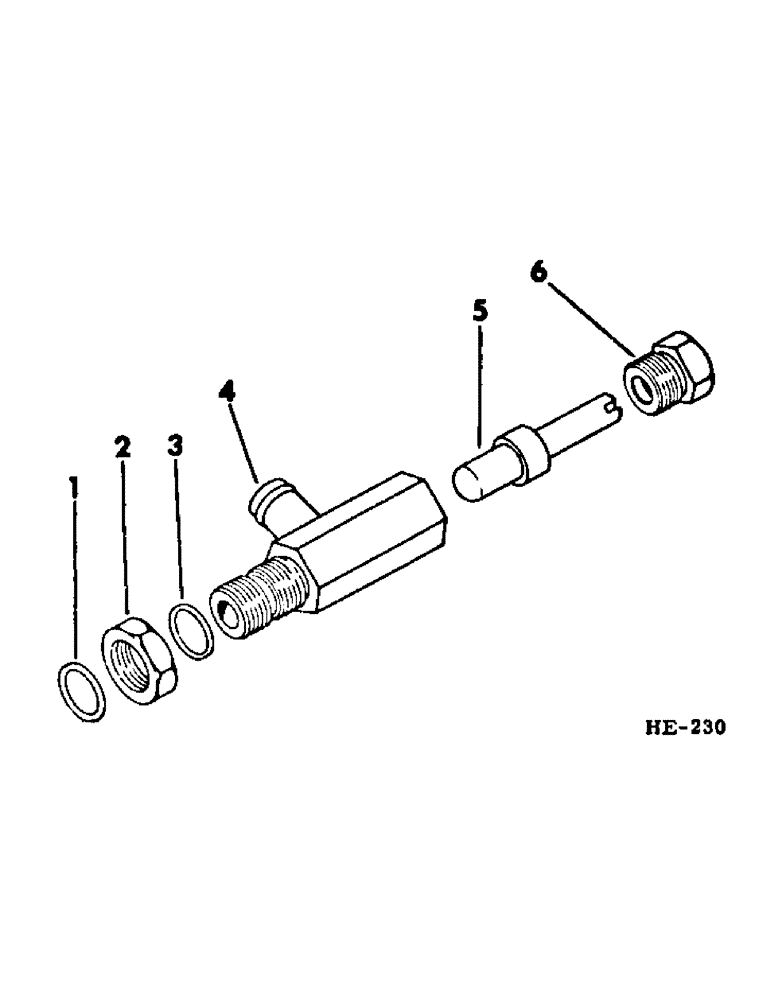

Запчасти Case IH 275 (F-12) - HYDRAULIC SYSTEM, OIL FILTER SHUT-OFF VALVE (07) - HYDRAULIC SYSTEM

595401R91

VALVE, oil filter shut-off (composed of all parts listed below)

2шт.

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve nut outer

2шт.

2

9410062

LOCK NUT,Blkhd, 1 1/16"-12

NUT, shut-off valve lk

2шт.

3

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

valve nut inner

2шт.

4

595402R91

TEE, filter shut-off vavle

2шт.

5

595404R1

NEEDLE, shut-off valve

2шт.

6

595405R1

NUT, shut-off valve

2шт.
