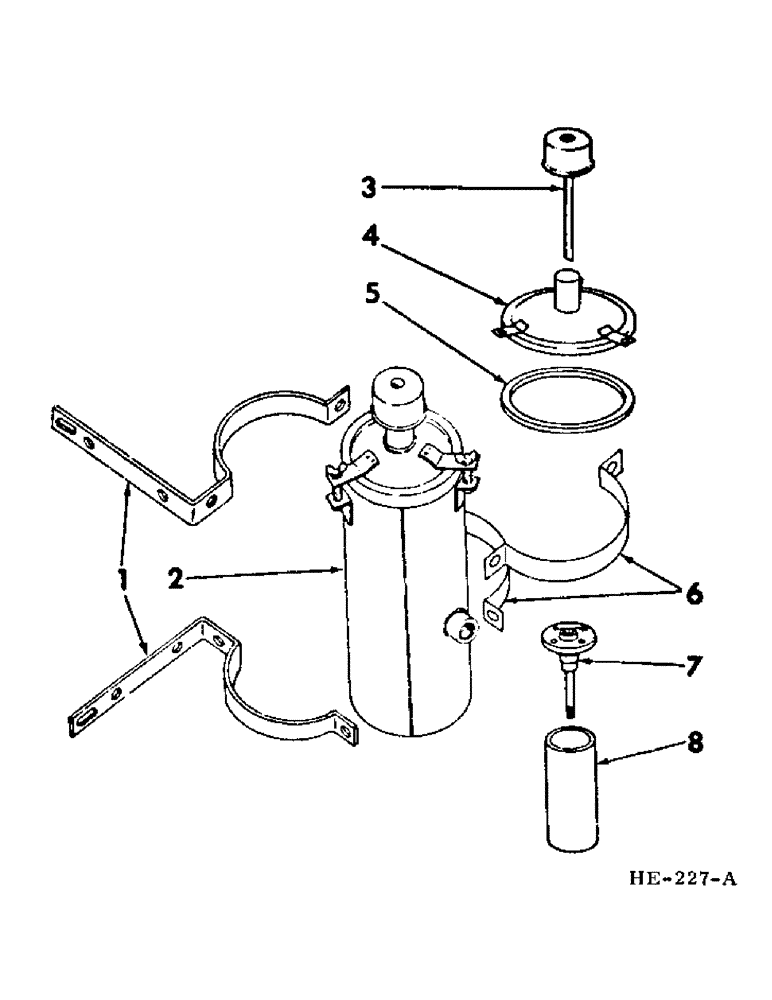

Запчасти Case IH 275 (F-04) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR AND MOUNTING (07) - HYDRAULIC SYSTEM

1

595380R1

SUPPORT, oil reservoir

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

4шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

BODY, oil reservoir (NSS) (for service order 1 - 595379R91, RESERVOIR)

1шт.

2

595379R91

RESERVOIR, hyd oil, composed of, (NSS) (1) BODY, (1) CAP 596357R1, (1) ELEMENT 935070R1, (1) LID 935068R91, (1) LID 935069R91, (1) GASKET 935071R1, (3) SCREW 120574

1шт.

3

596357R1

CAP

breather & dipstick

1шт.

4

935068R91

LID, oil reservoir

1шт.

120574

SCREW, 1/4 x 1-1/4" slt-truss-hd

3шт.

5

935071R1

GASKET, oil reservoir lid

1шт.

6

595381R1

CHANNEL, oil reservoir holding

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

935069R91

LID, reservoir filter element

1шт.

8

935070R1

ELEMENT

oil reservoir filter

1шт.
