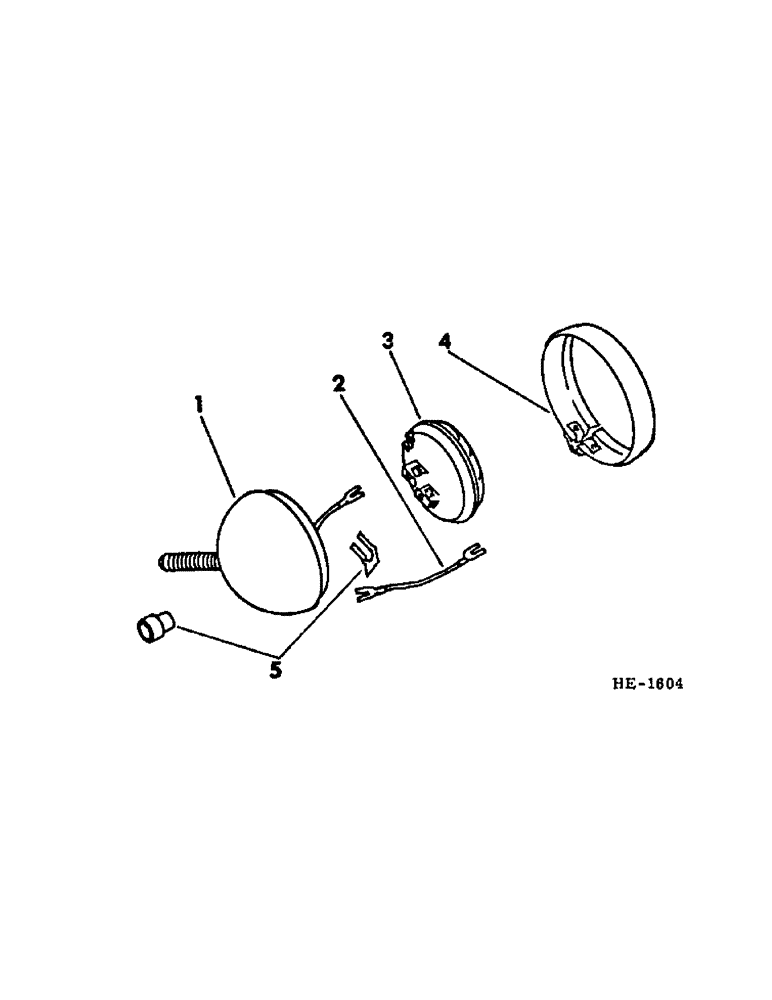

Запчасти Case IH 275 (G-36) - ELECTRICAL SYSTEM, HEADLIGHT, METAL MOULDING TYPE (06) - ELECTRICAL SYSTEMS

HEADLIGHT, 12 volt sealed beam (Dietz or guide lamp) (composed of all parts listed below, unless otherwise noted) (for service of complete HEADLIGHT, refer to above NOTE)

2шт.

49069D

SPACER

headlight

2шт.

Service headlight for Dietz or guide lamp HEADLIGHT. When complete headlight is required order the following

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Service headlight for Dietz or guide lamp HEADLIGHT. When complete headlight is required order the following

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

Service headlight for Dietz or guide lamp HEADLIGHT. When complete headlight is required order the following

1шт.

1

BODY, headlight (NSS) (for service refer to above NOTE)

2шт.

2

373311R91

WIRE, clip to beam (Dietz)

1шт.

2

375657R91

WIRE, clip to beam (guide lamp)

1шт.

3

373662R91

LAMP

SEALED BEAM, 12 volt headlight

2шт.

4

371450R91

BEZEL

MOULDING, headlight (Dietz)

2шт.

132489

SCREW, No. 8-NF x 1-1/4" slt-fil-hd

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

4

371451R91

MOLDING

MOULDING, headlight (guide lamp)

2шт.

53526D

SCREW

moulding

2шт.

5

365664R91

ELEC CONNECTOR

BLOCK & CLIP, terminal (Dietz)

2шт.

5

68417D

INSULATOR

PACKAGE, terminal plate (guide lamp) composed of, (1) PLATE 79407H, (1) SPRING 79408H, (2) LOCKWASHER 138530, (2) SCREW 121749

2шт.

79407H

PLATE

terminal

2шт.

79408H

SPRING, terminal retainer

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

4шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

No. 8-NF x 5/16" slt-rd-hd

4шт.
