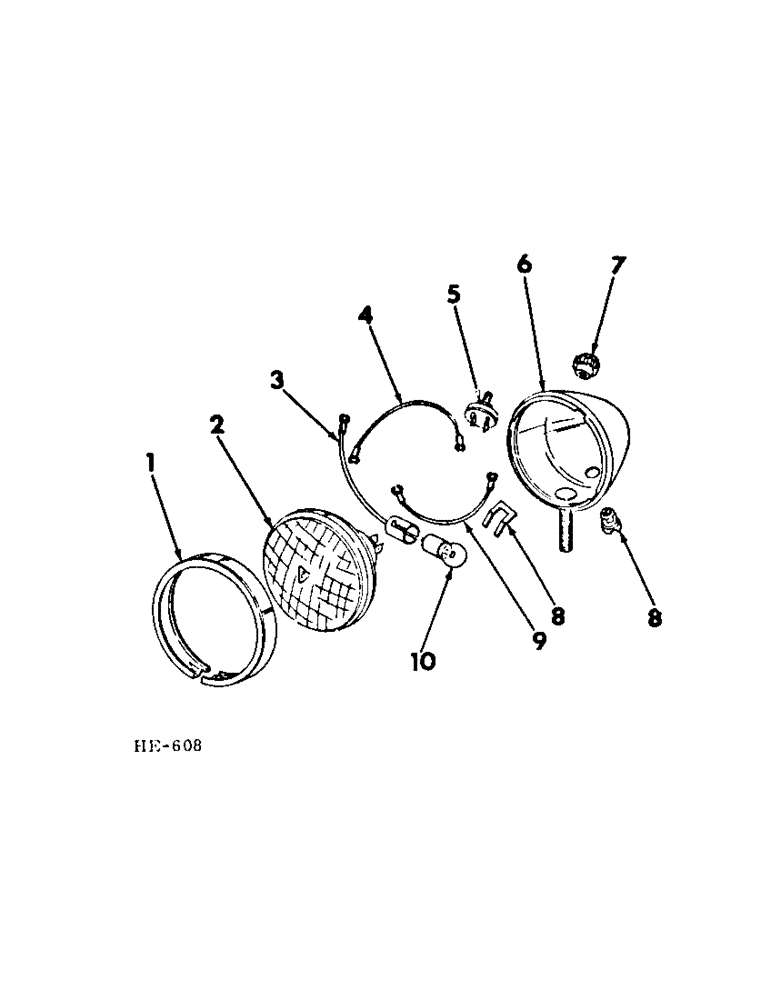

Запчасти Case IH 275 (G-35) - ELECTRICAL SYSTEM, WORK LIGHT, METAL MOULDING TYPE (06) - ELECTRICAL SYSTEMS

373306R91

LIGHT

12 volt combination work & tail (Dietz or guide lamp) (composed of all parts listed below, unless otherwise noted)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

1

371450R91

BEZEL

MOULDING, sealed beam (Dietz) (includes 121841, LOCKWASHER; 356697R1, NUT & 132489, SCREW)

1шт.

132489

SCREW, No. 8-NF x 1-1/4" slt-fil-hd

1шт.

365697R1

LK-NUT, No. 8 special

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

1

371451R91

MOLDING

MOULDING, sealed beam (guide lamp)

1шт.

53526D

SCREW

beam moulding

1шт.

2

371461R91

LENS

SEALED BEAM, 12 volt

1шт.

3

373310R91

CABLE, switch to socket (Dietz)

1шт.

3

375654R91

CABLE, switch to socket (guide lamp)

1шт.

4

373311R91

CABLE, switch to sealed beam (Dietz)

1шт.

4

375656R91

CABLE, switch to sealed beam (guide)

1шт.

5

373308R91

LIGHT SWITCH

SWITCH, light (includes 373309R1, KNOB) (Dietz)

1шт.

5

375653R91

SWITCH

light (includes 359773R91, KNOB) (guide lamp)

1шт.

6

BODY, (NSS) (order 1 - 373306R91, LIGHT)

1шт.

7

373309R1

KNOB

light switch (Dietz)

1шт.

7

359773R91

KNOB, light switch (guide lamp)

1шт.

8

365664R91

ELEC CONNECTOR

TERMINAL, spring clip (Dietz)

1шт.

8

68417D

INSULATOR

PACKAGE, terminal plate (includes 79407H, PLATE; 121749, SCREWS; 79408H, SPRING & 138530, WASHERS)

1шт.

79407H

PLATE

terminal

1шт.

79408H

SPRING, terminal plate

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

No. 8-NF x 5/16" slt-rd-hd

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

9

373311R91

CABLE, switch to terminal (Dietz)

1шт.

9

375655R91

CABLE, switch to terminal (guide lamp)

1шт.

10

455490

BULB,C-6, #1003, 12V, .94W

12 volt work

1шт.

599287R91

LIGHT, rear & stop (composed of all parts listed below)

1шт.
