Запчасти Case IH 275 (G-32) - ELECTRICAL SYSTEM, WORK LIGHT MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

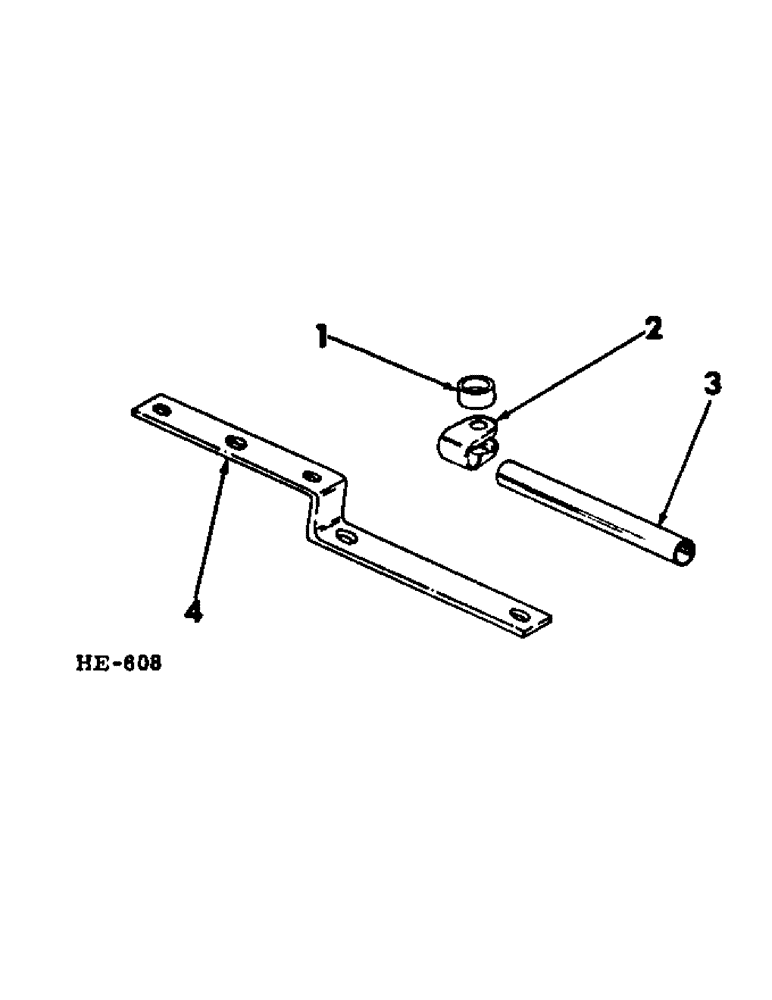

Схема запчастей Case IH 275 - (G-32) - ELECTRICAL SYSTEM, WORK LIGHT MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

49069D

SPACER

work light

1шт.

2

350920R1

CLAMP

work light (for use when tail light is mounted to LH side of chassis main frame)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

514986R1

PIPE, work light pivot (for use when tail light mounted to LH side of chassis main frame)

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2 x 7"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

823004C1

SUPPORT, work & tail light (for use when tail light is mounted to LH side of operator's platform)

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 13
