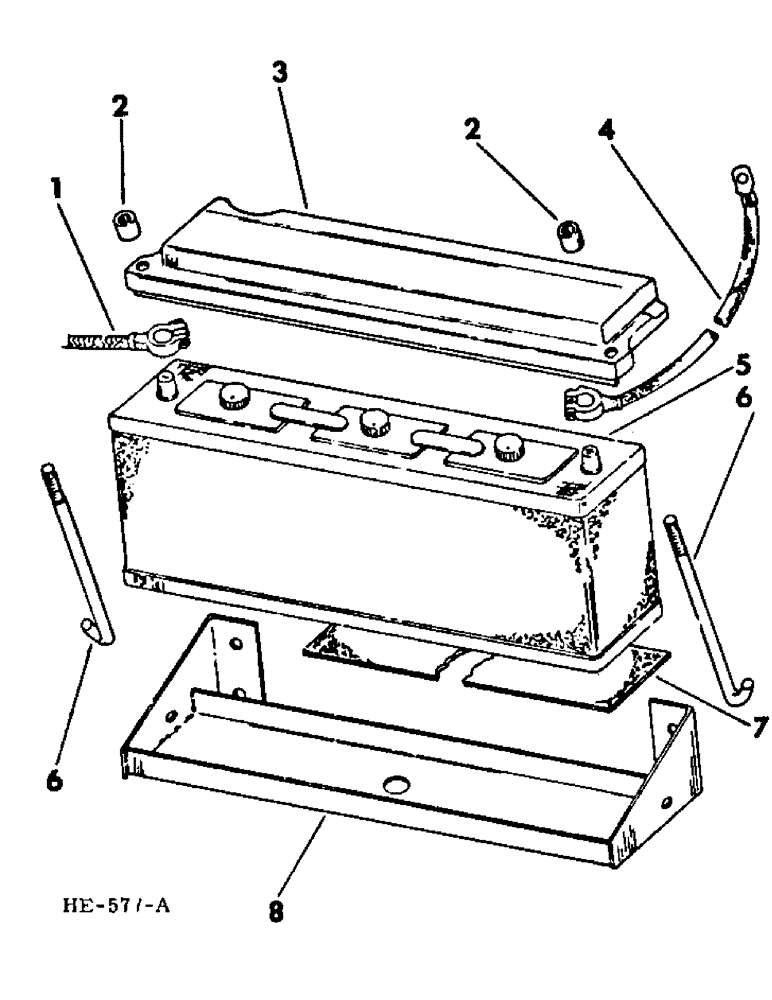

Запчасти Case IH 275 (G-29) - ELECTRICAL SYSTEM, BATTERY AND BATTERY TRAY (06) - ELECTRICAL SYSTEMS

1

181342R91

CABLE

, Serial Range: battery-ground

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

893421R1

SPACER, hold down rod

2шт.

3

380415R11

COVER

battery

1шт.

4

896063R91

CABLE, battery to starting motor solenoid (for use on 375 Windrower when equipped w/gasoline engine built w/machine serial No. 201 to machine serial No. 2000)

1шт.

4

825193C1

CABLE, battery to starting motor solenoid (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

1шт.

5

3310X

BATTERY, 12 volt (PRESTOLITE) (for U.S. only)

1шт.

5

379886R92

BATTERY, 12 volt (for CANADA only)

1шт.

6

377837R1

ROD

battery cover hold-down

2шт.

7500032

BUSHING

NUT, 5/16" wing

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

7

823304C1

STRIP, asbestos battery protective (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 2000)

1шт.

8

596486R1

TRAY, battery

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
