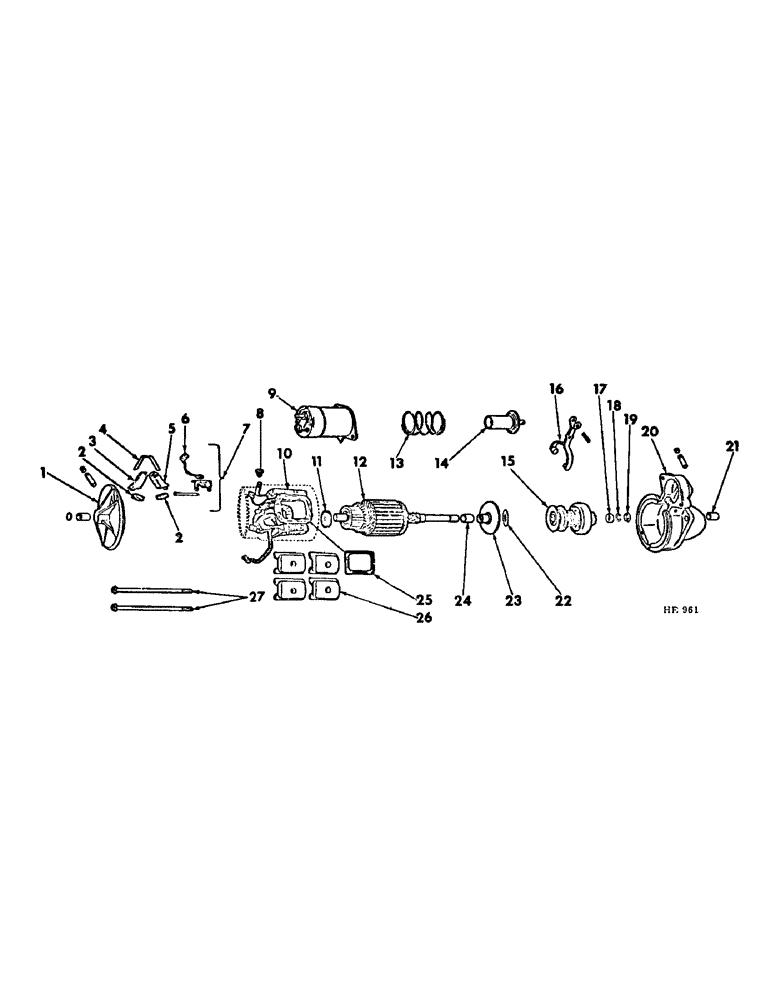

Запчасти Case IH 275 (G-26) - ELECTRICAL SYSTEM, STARTING MOTOR (06) - ELECTRICAL SYSTEMS

1107344

1шт.

MOTOR, 12 volt starting (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201) (composed of all parts listed below, unless otherwise designated)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1107268

MOTOR, 12 volt starting (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000) (composed of all parts listed below, unless otherwise designated)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

1108478

MOTOR

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1107866

MOTOR

12 volt starting (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine) (composed of all parts listed below, unless otherwise designated)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1928966

FRAME

commutator end (a component part of 1107344 & 1108478, MOTOR)

1шт.

1

1940385

FUNNEL

FRAME, commutator end (includes 1 - 1872678, BUSHING; 1 - 453465, PLUG & 1 - 1919851, WICK) (a component part of 1107268 & 1107866, MOTOR)

1шт.

1872678

BUSHING

commutator frame end

1шт.

453465

PLUG, commutator frame end

1шт.

1919851

WICK

commutator frame end

1шт.

1914842

WASHER

commutator frame end

1шт.

2

1906945

COMMUTATOR BRUSH

BRUSH (a component part of 1107344, 1107268 & 1108478 cranking MOTOR)

4шт.

1926648

SCREW, brush attaching

4шт.

2

1946434

BRUSH, COMMUTATOR

BRUSH (a component part of 1107866 cranking MOTOR)

4шт.

1959514

SCREW

attaching & LK-WASHER

4шт.

3

1926618

HOLDER

insulator (a component part of 1107344 & 1108478 MOTOR)

2шт.

1938058

AXLE PIN

PIN, brush holder (1107344 MOTOR)

2шт.

1966923

PIN

brush holder (1108478 MOTOR)

2шт.

3

1938587

BRUSH HOLDER

HOLDER, insulator (a component part of 1107268 cranking MOTOR)

2шт.

1926600

PIN

brush holder

2шт.

4

1926622

VALVE SPRING

SPRING, brush

2шт.

5

1940477

HOLDER

brush ground

2шт.

1938058

AXLE PIN

PIN, holder (1107344, MOTOR)

2шт.

1926600

PIN

holder (1107268, MOTOR)

2шт.

1966923

PIN

holder (1107866 & 1108478, MOTOR)

2шт.

6

1926605

ELECTRICAL WIRE

LEAD, ground (a component of 1107344; 1107268 & 1107866 cranking MOTOR)

2шт.

NLS

NO LONGER SERVICED

support attaching

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

Support attaching screw #10-24

4шт.

453435

LOCK WASHER

LK-WASHER, attaching screw

4шт.

6

1960864

BRUSH, COMMUTATOR

LEAD, ground (a component of 1108478 cranking MOTOR)

2шт.

274738

BOLT

support attaching

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

Support attaching screw #10-24

4шт.

453435

LOCK WASHER

LK-WASHER, attaching screw

4шт.

7

1928015

BRACKET

PACKAGE, brush holder support, composed of, (4) LOCKWASHER 453435, (4) NUT 120361, (2) PIN 1966923, (4) SCREW 274738

2шт.

8

1966391

GROMMET

field frame (a component of 1107344 & 1108478 cranking MOTOR)

1шт.

8

1933765

GROMMET

field frame (a component of 1107268 cranking MOTOR)

1шт.

8

1955946

GROMMET

field frame (a component of 1107866, cranking MOTOR)

1шт.

9

1114356

SOLENOID,Starter

SWITCH, solenoid

1шт.

132255

SCREW, switch attaching Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

9421423

WASHER

LK-WASHER, attaching screw (1107344; 1107268 & 1107866, MOTOR)

2шт.

1952427

GASKET

switch housing (1107344; 1107268 & 1107866 MOTOR)

1шт.

1949653

SCREW, lead attaching (1107344; 1107268 & 1107866 MOTOR)

1шт.

9427815

SCREW, lead attaching (1108478 MOTOR)

1шт.

456319

BUSHING

LK-WASHER, lead screw (1107344; 1107268 & 1107866, MOTOR)

1шт.

10

1933761

COIL, cranking motor (a component part of 1107344 & 1107268 MOTOR)

1шт.

10

1960853

COIL

cranking motor (a component part of 1107866 cranking MOTOR)

1шт.

453468

SCREW, Serial Range: lead-connector

1шт.

456319

BUSHING

LK-WASHER, connector screw

1шт.

1964954

CONNECTOR, Serial Range: field-switch

1шт.

9427815

SCREW, connector attaching

1шт.

10

1967968

COIL, cranking motor (a component part of 1108478 cranking MOTOR)

1шт.

11

818265

WASHER

brake leather (a component part of 1107344 & 1108478, cranking MOTOR)

1шт.

11

1914842

WASHER

commutator end brake (a component part of 1107268 cranking MOTOR)

1шт.

11

R15043

WASHER

brg & motor brake (a component part of 1107866 cranking MOTOR)

1шт.

12

1958949

ARMATURE, motor (a component part of 1107344 cranking MOTOR)

1шт.

12

1950307

ARMATURE

motor (a component part of 1107268 cranking MOTOR)

1шт.

12

1960866

ARMATURE

motor (a component part of 1107866 cranking MOTOR)

1шт.

12

1966228

ARMATURE, motor (a component part of 1108478 cranking MOTOR)

1шт.

13

1958679

SPRING

plunger

1шт.

14

1941113

PLUNGER

solenoid

1шт.

455106

PIN

plunger attaching

1шт.

15

1851430

DRIVE

motor (a component part of 1107344 cranking MOTOR)

1шт.

15

1970026

DRIVE

motor (a component part of 1107268 & 1107866 cranking MOTOR)

1шт.

15

1954842

DRIVE

motor (a component part of 1108478 cranking MOTOR)

1шт.

16

1932205

LEVER

shift (a component part of 1107344 cranking MOTOR)

1шт.

1932197

SCREW

STUD, shift lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

1953479

WASHER, lever stud sealing

1шт.

16

1951567

LEVER

shift (a component part of 1107268, 1107866 & 1108478 cranking MOTOR)

1шт.

1932197

SCREW

STUD, shift lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

9421424

LOCK WASHER

LK-WASHER, shift lever stud

1шт.

17

1928021

COLLAR

stop (a component part of 1107268, 1107344 & 1107866 cranking MOTOR)

1шт.

17

1927849

COLLAR

stop (a component part of 1108478 cranking MOTOR)

1шт.

18

1928022

SNAP RING

RING, retainer (a component part of 1107268, 1107344 & 1107866 cranking MOTOR)

1шт.

18

1927848

RING

retainer (a component part of 1108478, cranking MOTOR)

1шт.

19

1838568

WASHER

COLLAR, thrust (a component part of 1107344 cranking MOTOR)

1шт.

19

1928023

WASHER

COLLAR, thrust (a component part of 1107268 cranking MOTOR)

1шт.

19

1964410

COLLAR

thrust (a component part of 1107866 cranking MOTOR)

1шт.

19

1927850

COLLAR ASSY.

COLLAR, thrust (a component part of 1108478 cranking MOTOR)

1шт.

20

1964737

HOUSING, motor drive end (includes 1 - 1839345, BUSHING) (a component part of 1107344 cranking MOTOR)

1шт.

809593

PIN

drive housing dowel

2шт.

20

1952303

GUIDE

HOUSING, motor drive end (a component part of 1107268 cranking MOTOR)

1шт.

453465

PLUG, drive end housing

1шт.

1916439

WICK

end housing

1шт.

809593

PIN

end housing dowel

2шт.

20

1966914

HOUSING

drive end (includes 1 - 1862383, BUSHING; 1 - 453465, PLUG & 1 - 1916439, WICK) (a component part of 1107866 cranking MOTOR)

1шт.

453465

PLUG, drive end housing pipe

1шт.

1916439

WICK

end housing

1шт.

809593

PIN

end housing dowel

2шт.

20

1851758

HOUSING

drive end (includes 1 - 1923907, BUSHING) (a component part of 1108478, cranking MOTOR)

1шт.

809593

PIN

end housing dowel

2шт.

21

1839345

BUSHING

drive end housing (a component part of 1107344 cranking MOTOR)

1шт.

21

1862383

BUSHING

drive end housing (a component part of 1107866, cranking MOTOR)

1шт.

21

1923907

BUSHING

drive end housing (a component part of 1108478 cranking MOTOR)

1шт.

22

R15043

WASHER

centre brg & motor drive (a component part of 1107268 cranking MOTOR)

1шт.

23

1858594

PLATE, centre brg (a component part of 1107268 cranking MOTOR)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, centre brg attaching

1шт.

1962276

WASHER

LK-WASHER, attaching screw

1шт.

23

820149

PLATE

centre brg (includes 1 - 1938596, BUSHING) (a component part of 1107866 cranking MOTOR)

1шт.

1914580

SCREW

centre brg attaching

2шт.

1962276

WASHER

LK-WASHER, attaching screw

2шт.

24

1938596

BUSHING

centre brg plate (a component part of 1107268 & 1107866 cranking MOTOR)

1шт.

25

1927853

FOAM INSULATION

INSULATOR, field coil (a component part of 1107344, 1107268 & 1107478 cranking MOTOR)

1шт.

26

1931129

SHOE

pole (a component part of 1107344, 1107268 & 1108478 cranking MOTOR)

4шт.

1913100

SCREW

shoe (1107344, MOTOR)

4шт.

1913960

SCREW

shoe (1107268, MOTOR)

4шт.

1968396

SCREW

shoe (1108478, MOTOR)

4шт.

26

1887021

SHOE, pole (a component part of 1107866 cranking MOTOR)

4шт.

1913960

SCREW

pole shoe

4шт.

27

A41342

BOLT

cranking motor through (a component part of 1107344 & 1108478 cranking MOTOR)

2шт.

27

1941070

BOLT, cranking motor through (a component part of 1107268 cranking MOTOR)

2шт.

27

1960908

BOLT (SPREADER)

BOLT, cranking motor through (a component part of 1107866 cranking MOTOR)

2шт.
