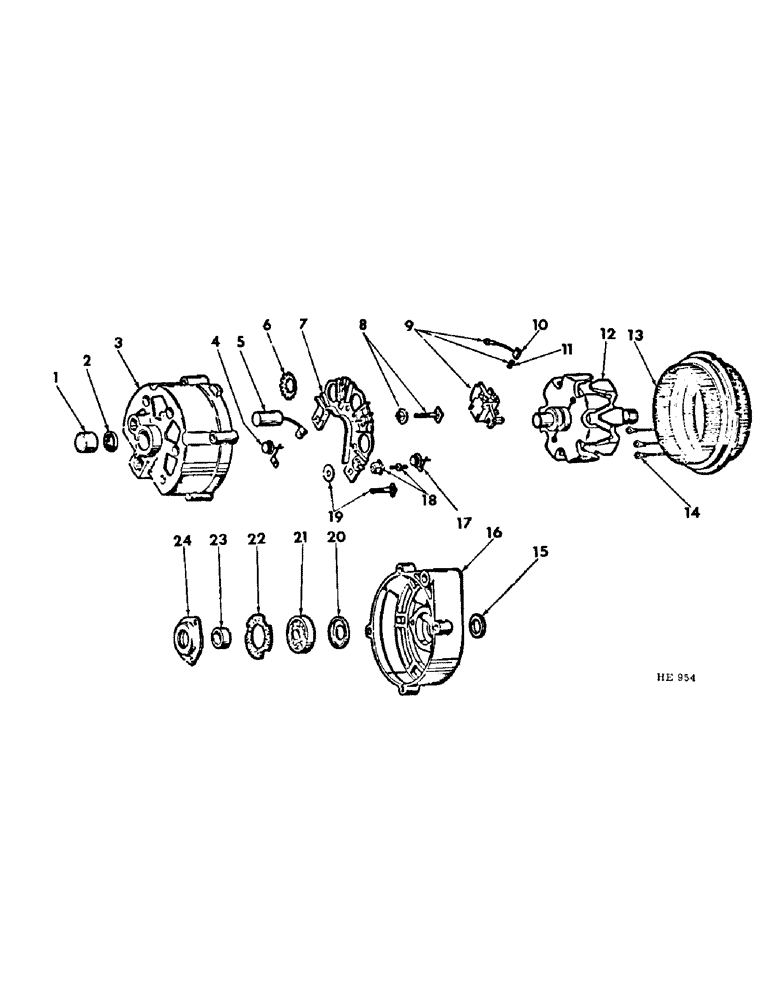

Запчасти Case IH 275 (G-24) - ELECTRICAL SYSTEM, ALTERNATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1100771

SPARE PART

1шт.

ALTERNATOR, 12 volt (composed of all parts listed below, unless otherwise noted) (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 1118) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 126)

1шт.

1100805

GENERATOR

1шт.

ALTERNATOR, 12 volt (NOT for use on machines equipped w/OPERATOR'S CAB ATTACHMENT - refer to 1100791, ALTERNATOR) (composed of all parts listed below, unless otherwise noted) (for use on 275 Windrower when equipped w/gasoline engine or diesel engine, built w/machine serial No. 1118 & since) (for use on 375 Windrower when equipped w/gasoline engine or diesel engine, built w/machine serial No. 126 & since)

1шт.

1100791

GENERATOR

1шт.

ALTERNATOR, 12 volt (for use on 275 Windrower when equipped w/OPERATOR'S CAB ATTACHMENT and w/gasoline engine or diesel engine, built w/machine serial No. 2514 & since) (for use on 375 Windrower when equipped w/OPERATOR'S CAB ATTACHMENT and w/gasoline engine or diesel engine, built w/machine serial No. 807 & since) (composed of all parts listed below, unless otherwise noted)

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

7451326

BEARING

BEARING, rotor end frame (a component part of 1100771, ALTERNATOR)

1шт.

1

7451763

BEARING

BEARING, rotor end frame (a component part of 1100805 & 1100791, ALTERNATOR)

1шт.

2

1759790

RETAINER AND FELT, rotor end frame (a component parts of 1100771, ALTERNATOR)

1шт.

2

1961323

SEAL

RETAINER AND FELT, rotor end frame (a component part of 1100805 & 1100791, ALTERNATOR)

1шт.

3

1959827

FUNNEL

FRAME FRAME, rotor end alternator (a component part of 110771, ALTERNATOR) composed of, (1) BEARING 7451326, (3) DIODE 1959830, (1) RETAINER 1959790

1шт.

1956975

BOLT

BOLT, frame through

4шт.

3

1969329

FUNNEL

FRAME FRAME, rotor end alternator (a component part of 1100805 & 1100791, ALTERNATOR) composed of, (1) BEARING 7451763, (1) CONDENSER 1959455, (3) PACKAGE 1964354, (1) RETAINER 1961323, (1) RETAINER 1960750

1шт.

1956975

BOLT

BOLT, frame through

4шт.

4

1959830

SET

DIODE, alternator end frame (a component part of 1100771, ALTERNATOR)

3шт.

4

1964354

DIODE

PACKAGE, negative diode (a component part of 1100805 & 1100791, ALTERNATOR)

3шт.

5

1959455

CAPACITOR

CONDENSER, rotor end frame

1шт.

6

1960750

VALVE SPRING

RETAINER, rotor end condenser

1шт.

7

1959828

PACKAGE

HEAT SINK AND DIODE, alternator (includes 1 - 1959834 & 1 - 1964353, PACKAGES)

1шт.

132768

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

SCREW, heat sink attaching

1шт.

815540

WASHER

attaching screw plain

1шт.

1959389

INSULATOR

INSULATOR, attaching screw

1шт.

1959523

SPARE PART WASHER, screw insulator

1шт.

9419392

SPARE PART WASHER, attaching screw

1шт.

8

1959833

TERMINAL CONNECTOR

PACKAGE, ground terminal

1шт.

9

1964682

HOLDER

BRUSH HOLDER AND BRUSH, heat sink (includes 2 - 1964117, SPRING)

1шт.

1957501

SCREW

SCREW, holder attaching

2шт.

9419392

SPARE PART WASHER, holder screw spg

2шт.

10

BRUSH (NSS) (for service order 1 - 1964682, PACKAGE)

1шт.

11

1964117

SPRING

SPRING, brush holder

2шт.

12

1958565

ROTOR

ROTOR, alternator

1шт.

1941978

WASHER

WASHER, drive end shaft

1шт.

1915172

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR, alternator (includes 3 - 1959532, CLIP) (a component part of 1100771 & 1100805, ALTERNATOR)

1шт.

13

1959531

STATOR

STATOR, alternator (includes 3 - 1959532, CLIP) (a component part of 1100791, ALTERNATOR)

1шт.

14

1959532

CABLE STRAP/Retired CLIP, stator lead terminal

3шт.

15

1959991

COLLAR

COLLAR, drive end shaft outside

1шт.

16

1959917

FUNNEL

FRAME, alternator drive end

1шт.

17

1959829

DIODE

DIODE, heat sink (a component part of 1100771, ALTERNATOR)

2шт.

17

1964353

DIODE

PACKAGE, positive diode (a component part of 1100805 & 1100791, ALTERNATOR)

3шт.

18

1959834

TERMINAL STRIP

PACKAGE, diode junction terminal

3шт.

453434

NUT

NUT, junction terminal

3шт.

9419392

SPARE PART WASHER, junction terminal spg

3шт.

19

1959832

TERMINAL STRIP

PACKAGE, battery terminal

1шт.

20

1947344

SLINGER

SLINGER, grease (a component part of 1100771, ALTERNATOR)

1шт.

21

954378

BALL BEARING

BEARING, drive end (a component part of 1100771, ALTERNATOR)

1шт.

21

904751

BEARING

BEARING, drive end (a component part of 1100805 & 1100791, ALTERNATOR)

1шт.

22

1912008

FELT

GASKET, brg retainer

1шт.

23

1963139

COLLAR CLAMP

COLLAR, rotor shaft inside

1шт.

24

1955494

PLATE

RETAINER, drive end brg

1шт.

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer attaching

3шт.
