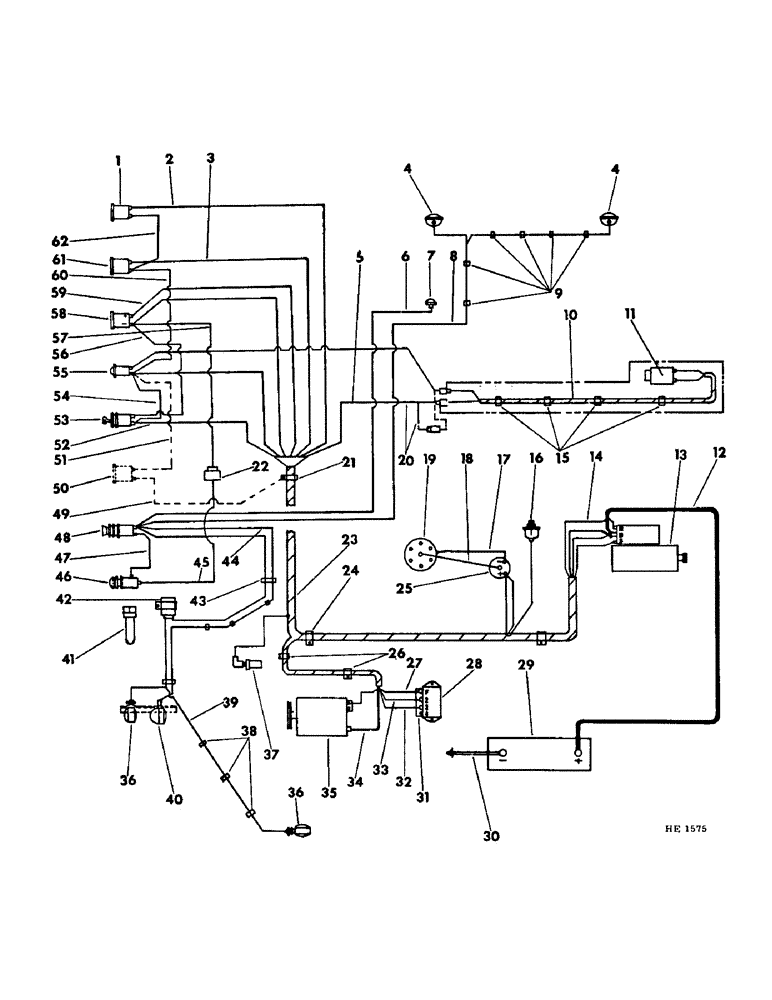

Запчасти Case IH 275 (G-12) - ELECTRICAL SYSTEM, WIRING DIAGRAM (06) - ELECTRICAL SYSTEMS

1

677162R91

GAUGE

water temperature indicator (refer to "WATER TEMPERATURE GAUGE" in section "H" of this parts catalog)

1шт.

2

CABLE, water temperature gauge to harness to water temperature sender gauge (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

3

CABLE, oil pressure gauge to harness to engine oil pressure sender

1шт.

4

599286R91

LAMP

LIGHT, front head (HOBBS) (for component parts of this assembly refer to "HEADLIGHT" in section "G" of this parts catalog) (opt to use 823029C91, LIGHT)

2шт.

4

823029C91

LIGHT

front head (DOMINION) (for component parts of this assembly refer to "HEADLIGHT" in section "G" of this parts catalog) (opt to use 599286R91, LIGHT)

2шт.

5

827114C1

CABLE, instrument panel starter button to "green" cable on harness to "S" connection on engine starter (275 Windrower only)

1шт.

5

827114C1

CABLE, instrument panel starter button to "green" cable on safety switch harness (375 Windrower only)

1шт.

6

CABLE, dash light to light switch on instrument panel (NSS) (for service order 1 - 598248R91 OR 1 - 850613C91, LIGHT)

1шт.

7

598248R91

LIGHT, instrument panel dash (for component parts of this assembly refer to "DASH LIGHT" in section "G" of this parts catalog) (opt to use 1 - 850613C91, LIGHT)

1шт.

7

850613C91

LIGHT, instrument panel dash (for component parts of this assembly refer to "DASH LIGHT" in section "G" of this parts catalog) (opt to use 1 - 598248R91, LIGHT)

1шт.

8

598103R1

CABLE, light switch to front head lights

1шт.

9

119702R1

CLIP

light switch to head light cable

6шт.

10

827113C1

HARNESS, neutral starting (375 Windrower only)

1шт.

11

382728R91

SWITCH

safety starting (375 Windrower only)

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

12

825193C1

CABLE, battery to starting motor solenoid terminal "B"

1шт.

13

1108478

MOTOR

engine staring (for component parts of this assembly refer to "STARTING MOTOR" in section "G" of this parts catalog)

1шт.

120622

NUT,#8-32

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

CABLE, starting motor solenoid "R" terminal to engine coil position terminal (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

15

119702R1

CLIP

neutral starting harness (375 Windrower only)

4шт.

16

827193C1

GAUGE

engine oil pressure sending

1шт.

17

CABLE, engine coil negative terminal to distributor (for service refer to "IGNITION UNIT" in section "C" of this parts catalog)

1шт.

18

CABLE, coil positive terminal to distributor (refer to "IGNITION UNIT" in section "C" of this parts catalog)

1шт.

19

DISTRIBUTOR, engine ignition (for component parts of this assembly refer to "DISTRIBUTOR" in section "C" of this parts catalog)

1шт.

20

CABLE, "S" terminal on starting motor to starter button cable (for 275 Windrower)

1шт.

20

CABLE, "S" terminal on starting motor to neutral starting harness (for 375 Windrower)

1шт.

21

101981R1

CLIP

CLAMP, wiring harness to instrument panel

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

376749R1

BODY

CONNECTOR, fuse holder cable to ammeter negative terminal cable

1шт.

23

827112C1

HARNESS, electrical wiring

1шт.

24

102106R1

NO LONGER SERVICED

CLAMP, wiring harness

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

COIL, engine ignition (for component parts of this assembly refer to section "C" of this parts catalog)

1шт.

26

101979R1

CLAMP, wiring harness

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

CABLE, "F" terminal on voltage regulator to alternator (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

28

1119513

VOLTAGE REGULATOR

REGULATOR, ignition voltage (for component parts of this assembly refer to "VOLTAGE REGULATOR" in section "G" of this parts catalog)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

395591R1

BATTERY, 12 volt dry (Prestolite #3310 X)

1шт.

30

181342R91

CABLE

battery ground

1шт.

31

969325R1

ELEC CONNECTOR,Female

CONNECTOR, voltage regulator terminal

1шт.

32

CABLE, voltage regulator No. 3 terminal to "B" terminal on starting motor (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

33

CABLE, voltage regulator No. 2 terminal to instrument panel starter button (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

34

CABLE, ammeter negative terminal to alternator (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

35

1100805

GENERATOR

ALTERNATOR, 12 volt (NOT applicable when machine equipped w/air conditioning unit) (for component parts of this assembly refer to "ALTERNATOR" in section "G" of this parts catalog)

1шт.

35

1100791

GENERATOR

ALTERNATOR, 12 volt 55 amp (applicable when machine equipped w/air conditioning unit) (for component parts of this assembly refer to "ALTERNATOR" in section "G" of this parts catalog)

1шт.

36

LIGHT, flashing safety (for component parts of this assembly refer to "FLASHING SAFETY LIGHT" in section "G" of this parts catalog)

2шт.

37

827153C1

TEMPERATURE SENDER

GAUGE, water temperature sending (also refer to "WATER TEMPERATURE GAUGE" in section "H" of this parts catalog)

1шт.

38

121506R1

CLIP

CLAMP, flashing safety light cable (also refer to "FLASHING SAFETY LIGHT" in section "G" of this parts catalog)

3шт.

39

827177C1

CABLE, flashing safety lights to flasher to light switch (also refer to "FLASHING SAFETY LIGHTS" in section "G" of this parts catalog)

1шт.

40

599287R91

LIGHT, combination work & tail (for component parts of this assembly refer to "COMBINATION WORK AND TAILLIGHT" in section "G" of this parts catalog)

1шт.

41

394473R91

CABLE, jumper (when steady light is preferred or flashing light is prohibited by law) (also refer to "FLASHING SAFETY LIGHT" in section "G" of this parts catalog)

1шт.

42

FLASHER UNIT, flashing safety light (for component parts of this assembly refer to "FLASHING SAFETY LIGHT" in section "G" of this parts catalog)

1шт.

43

117960

GROMMET,5/16" ID x .719" x .188"

light switch to flasher unit cable

1шт.

44

823003C1

CABLE, light switch to combination work & tail light

1шт.

119702R1

CLIP

light cable

3шт.

45

CABLE, fuse holder (NSS) (for service order 1 - 592700R92, HOLDER)

1шт.

46

592700R92

HOLDER, fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

1-1/4" long 15 amp

1шт.

47

CABLE, fuse holder to light switch (NSS) (for service order 1 - 592700R92, HOLDER)

1шт.

48

62801DC

SWITCH

light (also refer to "LIGHT SWITCH" in section "G" of this parts catalog)

1шт.

23639S

SPACER, light switch

1шт.

49

598389R1

CABLE, hourmeter ground (also refer to "HOURMETER" in section "H" of this parts catalog)

1шт.

50

621657C91

HOURMETER

1шт.

51

598936R1

CABLE, hourmeter to push button starting switch (also refer to "HOURMETER" in section "H" of this parts catalog)

1шт.

52

CABLE, key ignition switch to harness to engine coil positive terminal (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

53

403562R2

SWITCH

key ignition

1шт.

54

CABLE, key ignition switch to push button starting switch (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

55

393209R91

SWITCH

BUTTON, push starter (also refer to "PUSH BUTTON STARTING SWITCH" in section "G" of this parts catalog)

1шт.

56

598122R1

CABLE, ammeter negative terminal to key ignition switch

1шт.

57

598156R1

CABLE, ammeter to fuse holder connector

1шт.

58

154818C91

GAUGE ASSY.

AMMETER, instrument panel

1шт.

59

CABLE, ammeter positive terminal to harness to "B" terminal on working motor (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

60

CABLE, oil pressure gauge to push button starting switch (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.

61

827194C1

GAUGE, oil pressure indicator

1шт.

62

CABLE, oil pressure gauge to water temperature gauge (NSS) (for service order 1 - 827112C1, wiring HARNESS)

1шт.
