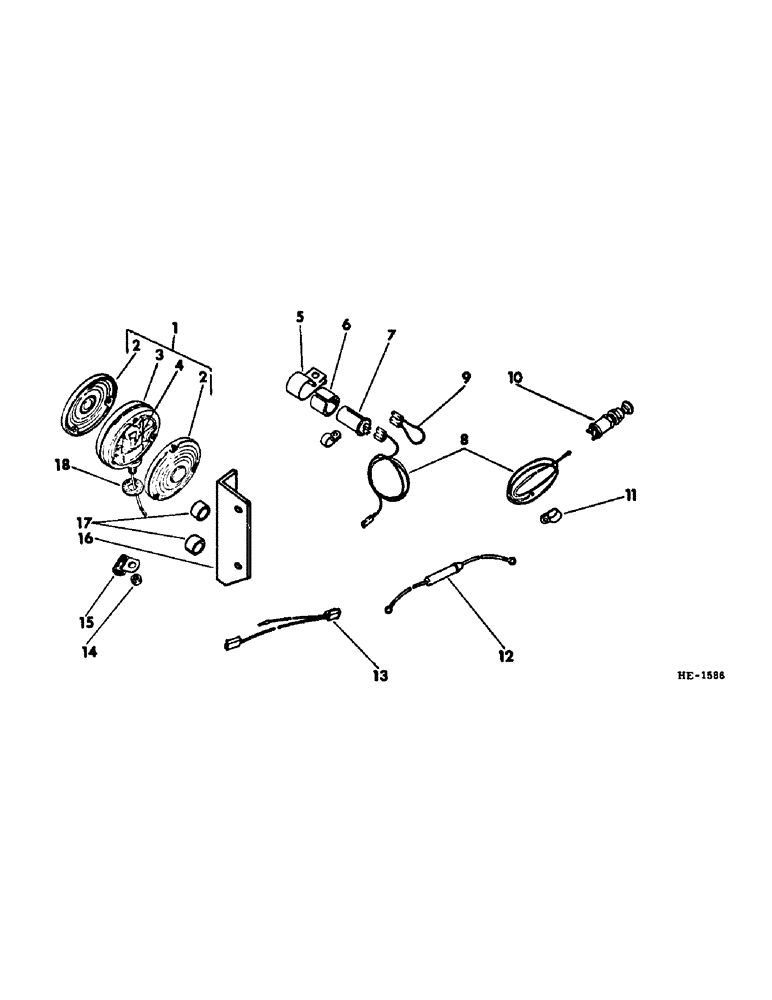

Запчасти Case IH 275 (G-07) - ELECTRICAL SYSTEM, FLASHING SAFETY LIGHT (06) - ELECTRICAL SYSTEMS

1

394129R91

LIGHT

12 volt flashing safety (Dietz OR Peterson) (opt to use 598864R91, LIGHT) (includes 1 - 9417866, LAMP and 2 - 899280R1 OR 2 - 405532R1, LENS)

1шт.

1

598864R91

LAMP

LIGHT, 12 volt flashing safety (Dietz) (opt to use 394129R91, LIGHT) (includes 1 - 9417866, LAMP and 1 - 231193R91, PACKAGE)

1шт.

2

899290R1

LENS, flashing light amber (Dietz)

2шт.

2

899279R1

LENS

flashing light red (Dietz)

2шт.

2

405532R1

LENS, flashing light amber (Peterson)

2шт.

2

231193R91

PACKAGE, flashing light lens (signal stat) (includes 1 - LENS; 1 - GASKET & 3 - SCREWS)

2шт.

3

BODY, flashing safety light (NSS) (for service order 1 - 394129R91, LIGHT OR 1 - 598864R91, LIGHT)

2шт.

4

9417866

BULB,C6, #1156, 12.8V

LAMP, 12 volt flashing

1шт.

5

394133R1

FASTENER

CLAMP, light flasher

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

394134R1

SEAL

HOSE, flasher absorber

1шт.

7

394132R91

FLASHER UNIT

FLASHER, 12 volt warning safety light (in areas where FLASHER is prohibited by law, order 1 - 394473R91, jumper cable)

1шт.

8

595983R91

CABLE, safety warning light to flasher & switch

1шт.

9

394473R91

CABLE, safety light jumper

1шт.

10

62801DC

SWITCH

safety warning light

1шт.

23639S

SPACER, light switch

1шт.

11

119702R1

CLIP

CLAMP, light to switch cable

3шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

592700R92

HOLDER, light fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

15 amp 1-1/4" long

1шт.

13

376749R1

BODY

CONNECTOR, fuse holder to ammeter cable

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" - NF hex jam stud

1шт.

15

358986R1

CABLE CLIP

CLIP, light cable terminal

1шт.

16

827126C1

SUPPORT, safety light LH

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

SA2344

SPACER,3/8" Pipe x 7/16"

safety light support

2шт.

18

394262R1

WASHER

GASKET, safety light rubber

1шт.
