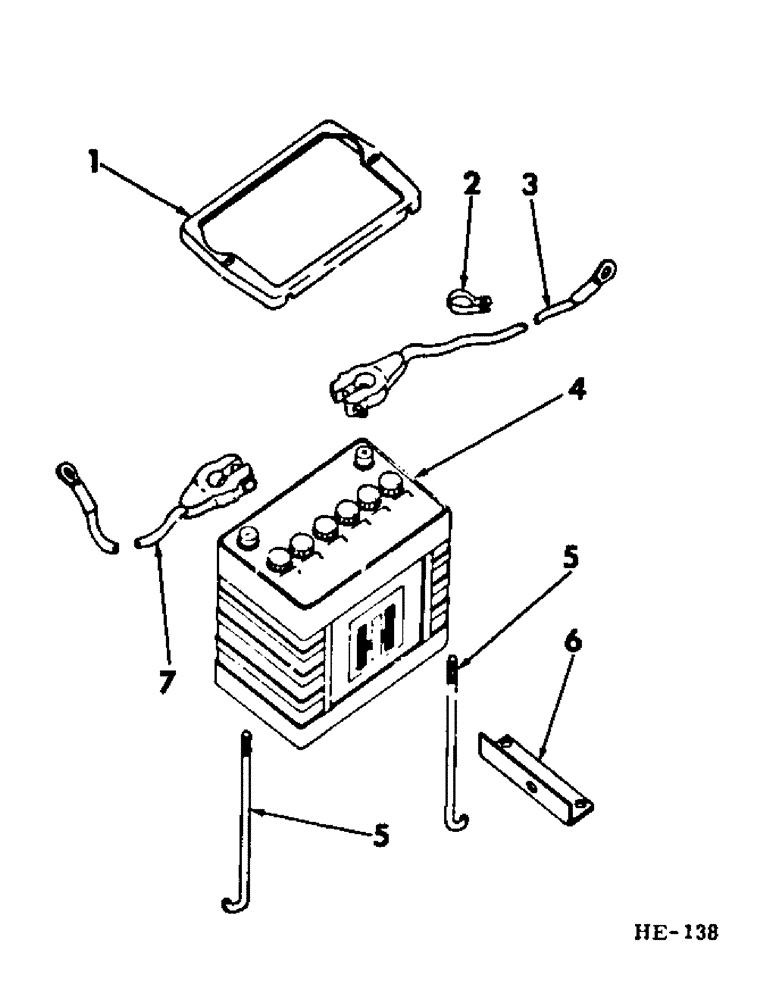

Запчасти Case IH 275 (G-06) - ELECTRICAL SYSTEM, BATTERY AND TRAY (06) - ELECTRICAL SYSTEMS

1

920645R1

CLAMP

battery hold-down

1шт.

2

105249

CLAMP, 1/4" bolt No. 8 closed

1шт.

3

227134R91

CABLE

battery to starter solenoid

1шт.

4

395590R1

BATTERY, 12 volt dry (PRESTOLITE POL-2432-X) (for U.S.)

1шт.

4

924336R91

BATTERY, 12 volt dry (NOT U.S.)

1шт.

5

595494R1

BOLT, hold-down clamp

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4" wing

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

595493R1

ANGLE, battery hold-down

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

614312R91

CABLE, Serial Range: battery-ground

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.
