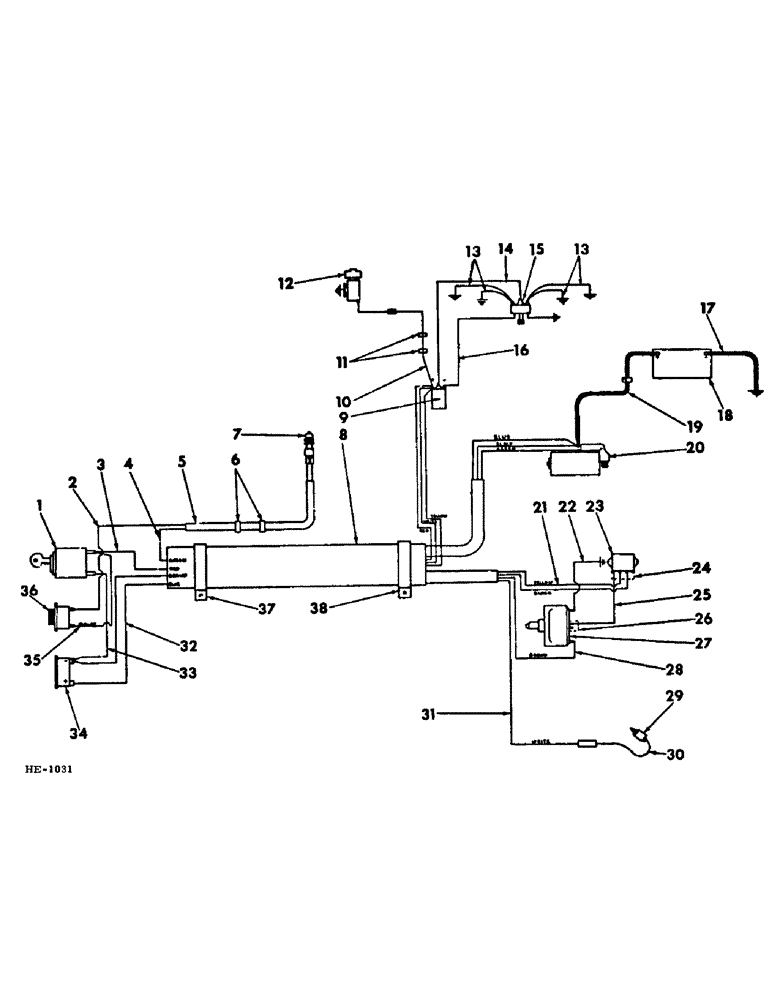

Запчасти Case IH 275 (G-02) - ELECTRICAL SYSTEM, WIRING DIAGRAM (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
403562R2
SWITCH
key ignition (for component parts of this assembly, refer to "KEY IGNITION SWITCH" in section "G" of this parts catalog)
1шт.
2
CABLE, engine starter button to hydrostatic safety starting switch (NSS) (for use on 375 Windrower) (for service order 1 - 595500R91, electrical HARNESS)
1шт.
3
CABLE, key ignition switch to engine ignition coil (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
4
CABLE, engine starter button to starting motor solenoid switch (for use on 275 Windrower (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
4
CABLE, safety hydrostatic starting switch to engine starting motor solenoid switch (for use on 375 Windrower) (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
5
595500R91
HARNESS, hydrostatic safety starting switch electrical wiring (for use on 375 Windrower)
1шт.
6
119702R1
CLIP
hydrostatic safety starting switch wiring harness (for use on 375 Windrower)
2шт.
9
COIL, engine ignition (for component parts of this assembly refer to the C-153 engine in section "F" of the ENG-1 parts catalog)
1шт.
12
394327R92
PUMP
electric fuel (for fuel line arrangement refer to the applicable "FUEL LINES" pages in section "E" of this parts catalog)
1шт.
13
PACKAGE, spark plug & coil ignition cable service (for component parts of this assembly refer to the C-153 engine in section "F" of the ENG-1 parts catalog)
1шт.
14
CABLE, coil to distributor secondary (refer to the C-153 engine in section "F" of the ENG-1 parts catalog)
1шт.
15
DISTRIBUTOR, engine ignition (for component parts of this assembly refer to the C-153 engine in section "F" of the ENG-1 parts catalog)
1шт.
16
CABLE, coil to distributor primary (for service refer to the C-153 engine, in section "F" of the ENG-1 parts catalog)
1шт.
17
595490R91
CABLE, battery ground (for attaching parts refer to "BATTERY AND TRAY" in section "G" of this parts catalog)
1шт.
18
BATTERY, ignition (refer to the applicable "BATTERY AND TRAY" in section "G" of this parts catalog)
1шт.
20
1107344
MOTOR, 12 volt engine starting (for component parts of this assembly refer to "STARTING MOTOR" in section "G" of this parts catalog)
1шт.
21
CABLE, voltage regulator No. 2 terminal to engine ignition coil (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
23
1119513
VOLTAGE REGULATOR
REGULATOR, voltage (for component parts of this assembly refer to "VOLTAGE REGULATOR" in section "G" of this parts catalog)
1шт.
27
1100771
ALTERNATOR, 12 volt (for component parts of this assembly refer to "ALTERNATOR" in section "G" of this pars catalog)
1шт.
28
CABLE, ammeter to "B" terminal on alternator (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
29
SOLENOID, carburetor fuel shut-off (for component parts of this assembly refer to the C-153 section in the ENG-1 parts catalog)
1шт.
31
CABLE, fuel shut-off solenoid to engine ignition coil (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
32
CABLE, ammeter to engine starting motor solenoid (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
35
CABLE, key ignition switch to engine starter button (NSS) (for service order 1 - 595499R91, electrical HARNESS)
1шт.
36
366317R93
SWITCH
BUTTON, engine starting (for attaching & componenet parts of this assembly refer to "ENGINE STARTER BUTTON" in section "G" of this parts catalog)
1шт.
