Запчасти Case IH 275 (B-34) - POWER TRAIN, PLATFORM COUNTER SHAFT (03) - POWER TRAIN

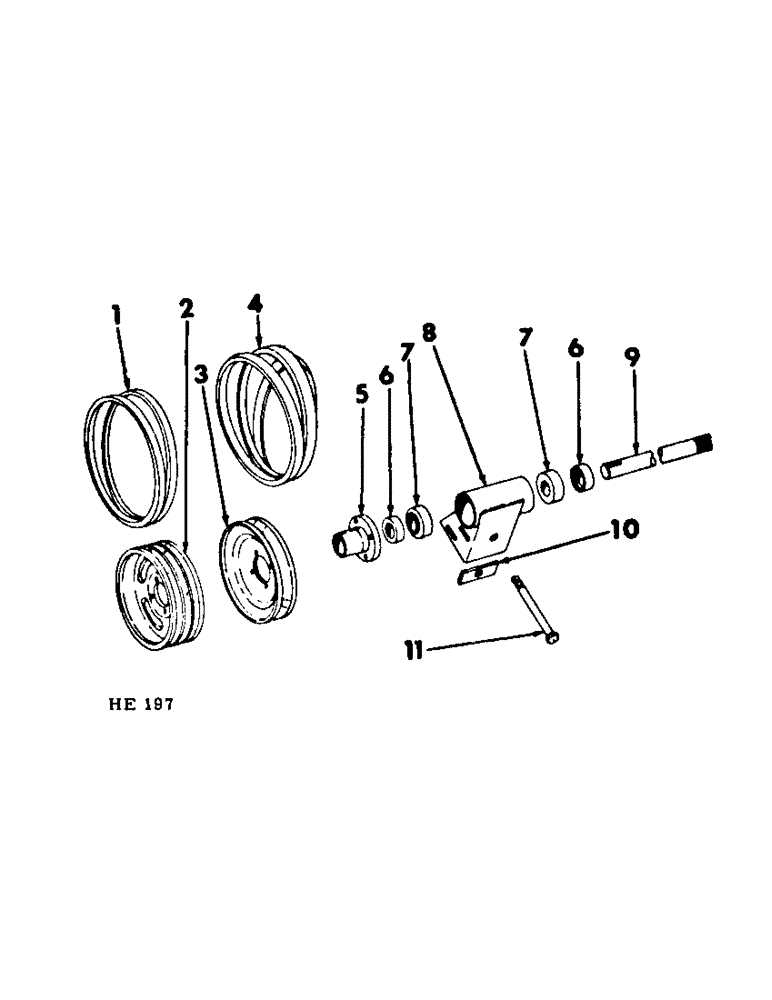

Схема запчастей Case IH 275 - (B-34) - POWER TRAIN, PLATFORM COUNTER SHAFT (03) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

596174R11

SET,0.88" W x 104.00" L

OF BELTS , V-Belt, Platform counter shaft drive (Set of 3 belts) (For use on machines equipped w/single auger platform) 0.88" W x 104.00" L

1шт.

2

596175R1

PULLEY, platform counter shaft driven (for use on machine equipped w/single auger platform)

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

595621R1

V-BELT,1.26" W x 101.88" L

Platform counter shaft drive (For use on machines equipped w/dual auger platform) 1.26" W x 101.88" L

1шт.

4

595622R11

PULLEY

platform counter shaft driven (for use on machines equipped w/dual auger platform)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

595353R1

HUB, counter shaft driven pulley

1шт.

Q3950

KEY,Gib, 3/8" Sq x 2 1/4"

3/8 x 2-1/4" gib-hd

1шт.

6

455104R11

COLLAR

counter shaft brg locking (includes 1 - 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls-cup-pt-set

2шт.

7

587015R91

BALL BEARING

counter shaft

2шт.

8

595355R91

BRACKET, counter shaft brg adjusting

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

9

595354R1

SHAFT, platform counter

1шт.

10

595360R1

BAR, tightener bolt nut

1шт.

11

595358R91

BOLT

counter shaft drive tightener

1шт.

Выбрано товаров: 20
