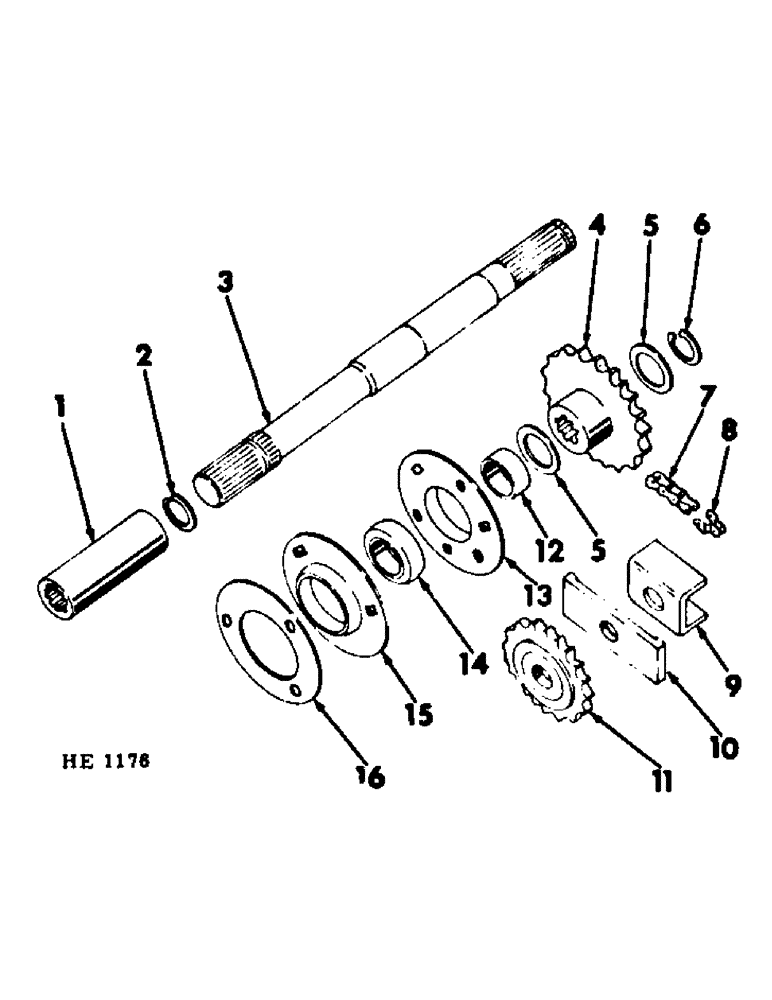

Запчасти Case IH 275 (B-33) - POWER TRAIN, FINAL DRIVE INPUT SHAFT (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
599072R1
COUPLING
final drive shaft (275 Windrower w/machine serial No. 2554 & since)
2шт.
2
152450R1
SNAP RING,#125, Ext
Ring, Snap, , input shaft (275 Windrower w/machine serial No. 2554 & since) #125, Ext
2шт.
3
595193R1
SHAFT, final drive input (for use on 275 Windrower built prior to machine serial No. 2554)
2шт.
3
825403C1
SHAFT, final drive input (for use on 275 Windrower, built w/machine serial No. 2554 & since)
2шт.
4
595198R11
SPROCKET ASSY.
SPROCKET, 14T regular speed input shaft
2шт.
4
596017R1
SPROCKET ASSY.
SPROCKET, 11T special slow speed input shaft
2шт.
5
595201R1
WASHER
1-1/8 x 1-3/4 x 22 ga
1шт.
6
313675R1
RING, SNAP,#106, Ext
input shaft sprocket #106, Ext
2шт.
7
CHAIN, 5/8" pitch final drive standard (for service order 1 - 1791D, 10 Ft. length of chain, reduce to 107 links & add 1 - 1315D, offset LINK & 1 - 1310D connecting LINK)
2шт.
8
1315D
LINK
drive chain offset
2шт.
9
593321R11
BRACKET, sprocket adjusting
2шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 22 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
10
596026R2
WASHER, sprocket lockout
2шт.
11
610538R92
SPROCKET ASSY.
SPROCKET, 15T chain tightener
2шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 22 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
12
595197R1
SPACER, input shaft
2шт.
13
595127R11
RETAINER, brg
2шт.
14
591871R91
BALL BEARING,30 mm ID x 62 mm OD x 16 mm
input shaft (opt to use 1 - 591872R91, BEARING)
2шт.
14
591872R91
BEARING
input shaft (opt to use 1 - 591871R91, BEARING)
2шт.
15
565631R1
BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"
RETAINER, input shaft brg
2шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
16
595196R1
GASKET
brg retainer
2шт.
Выбрано товаров: 28
