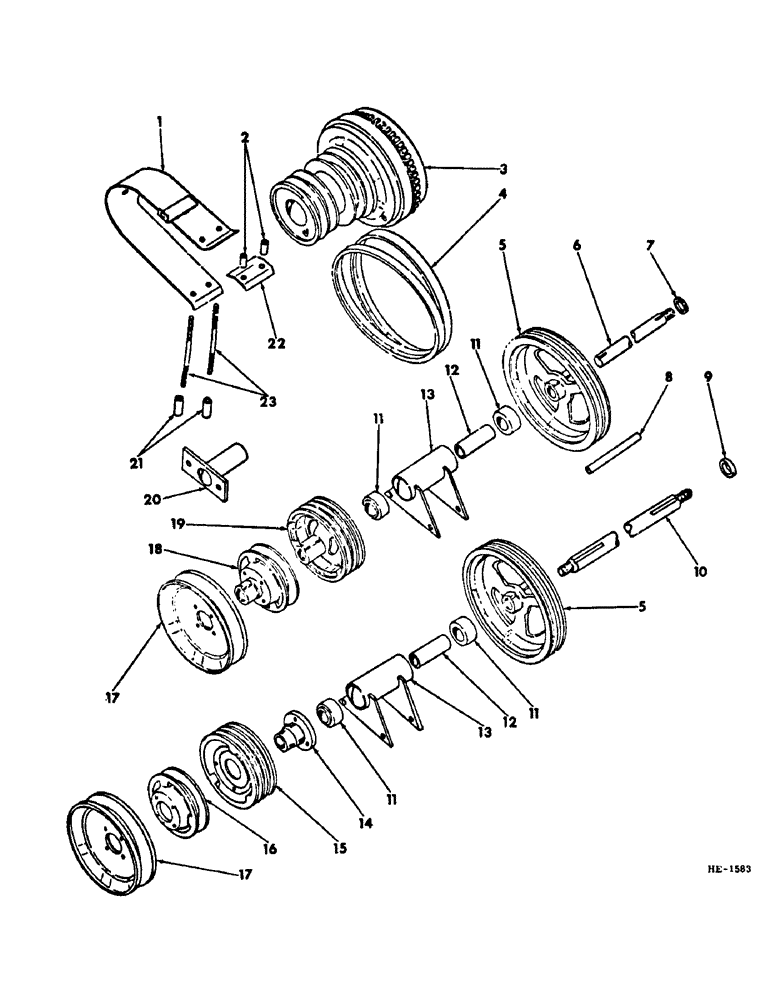

Запчасти Case IH 275 (B-30) - POWER TRAIN, PLATFORM DRIVE (03) - POWER TRAIN

1

595349R11

GUARD, countershaft drive belt

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

K11064

SPACER,3/8" Pipe x 1 1/4"

drive belt guard

2шт.

3

FLYWHEEL AND PTO PULLEY, engine (for the applicable flywheel and pulley, refer to " FLYWHEEL AND PTO PULLEY" in section "B" of this parts catalog)

1шт.

4

595348R11

SET OF BELTS,0.88" W x 105.50" L

V-Belt, (2), Countershaft drive 0.88" W x 105.50" L

1шт.

5

595347R2

PULLEY, countershaft driven

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" sq

1шт.

6

595346R1

SHAFT

1шт.

SHAFT, main drive counter (for service on 275 Windrower built prior to machine serial No. 4000, order 1 - 827041C1, SHAFT; 2 - 23261R1, NUT & 2 - 25550R1, WASHER) (for service on 375 Windrower built prior to machine serial No. 2000, order 1 - 827041C1, SHAFT; 2 - 23261R1, NUT & 2 - 25550R1, WASHER)

1шт.

18462R1

LOCK NUT,1"-14, GB

NUT, 1" NF stop

1шт.

7

608602R1

WASHER, countershaft (for use on 275 Windrower built prior to machine serial No. 4000) (for use on 375 Windrower built prior to machine serial No. 2000)

1шт.

8

510452R1

SPACER,3/8" Pipe x 3 3/4"

drive belt lower guide

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

25550R1

WASHER,1 1/16" x 2" x .219", HDN

1.062 x 2.000 x .219 (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

2шт.

10

827041C1

SHAFT

main drive counter (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

25550R1

WASHER,1 1/16" x 2" x .219", HDN

1.062 x 2.000 x .219

2шт.

23261R1

LOCK NUT,1"-14, GC

NUT, 1" NF

2шт.

11

611921R91

BALL BEARING

countershaft

2шт.

12

595345R1

SPACER

countershaft brg

1шт.

13

595342R91

SUPPORT, countershaft brg housing

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

826774C1

HUB

countershaft drive pulley (for use on 275 Windrower built w/machine serial No. 4000 & since) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" sq

1шт.

15

826772C1

PULLEY, platform countershaft drive (for use on 275 Windrower when equipped w/single auger platform, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/single auger platform, built w/machine serial No. 2000 & since)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

826773C1

PULLEY

platform countershaft drive (for use on 275 Windrower when equipped w/dual auger platform, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/dual auger platform, built w/machine serial No. 2000 & since)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

595622R11

PULLEY

platform countershaft driven (for use on 275 Windrower & 375 Windrower when equipped w/dual auger platform)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

595620R2

PULLEY

platform countershaft drive (for service on 275 Windrower & 375 Windrower when equipped w/dual auger platform, order 1 - 826774C1, HUB; 1 - 826773C1, PULLEY; 1 - 827041C1, SHAFT; 2 - 23261R1, NUT & 2 - 25550R1, WASHER)

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" sq

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

19

596173R2

PULLEY, platform countershaft drive (for service on 275 Windrower & 375 Windrower when equipped w/single auger platform, order 1 - 826774C1, HUB; 1 - 826772C1, PULLEY; 1 - 827041C1, SHAFT; 2 - 23261R1, NUT & 2 - 25550R1, WASHER)

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" sq

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

20

595373R91

PIVOT, idler arm support (for use on 375 Windrower)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

22188R1

WASHER

2-9/32 x 3 x 14 ga

1шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

600373R1

SPACER

belt guard lower (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

2шт.

22

595351R1

REINFORCEMENT, drive belt guard

1шт.

23

595352R1

2шт.

ROD, countershaft drive belt guard (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 2000) (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

23

827100C1

ROD, countershaft drive guard (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.
