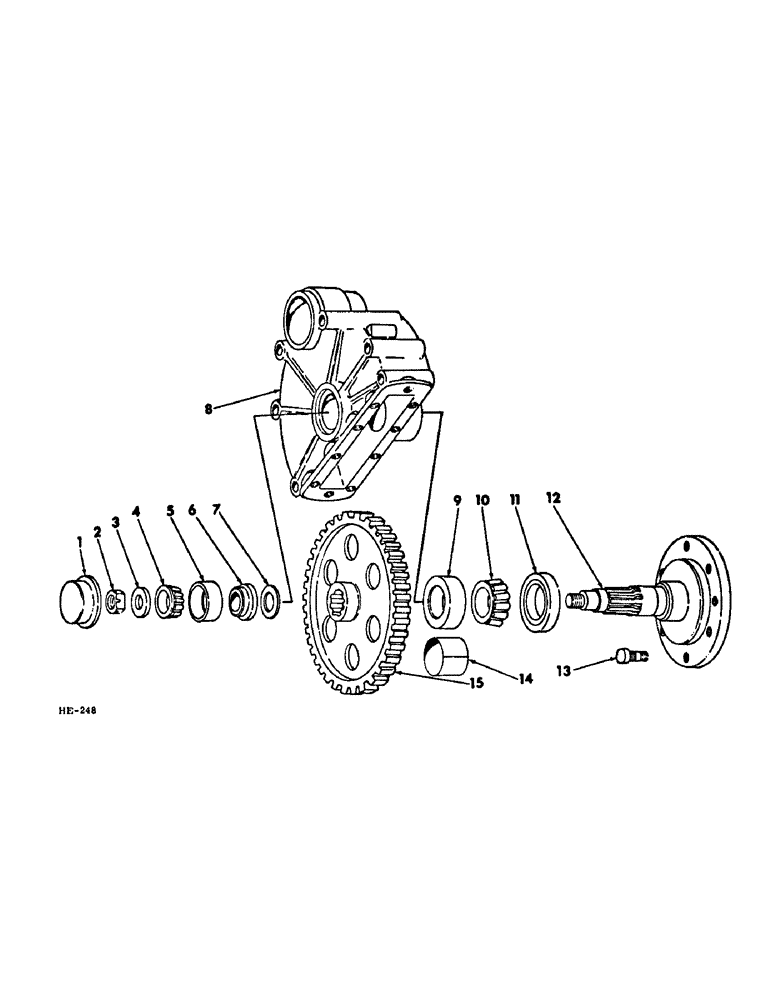

Запчасти Case IH 275 (B-12) - POWER TRAIN, FINAL DRIVE AXLE (03) - POWER TRAIN

1

583238R1

PLATE

CAP, final drive housing

2шт.

2

596722R1

NUT

1" NF slt-hex axle

2шт.

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

3

461954R1

SPACER, axle inner brg

2шт.

4

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

CONE, axle inner brg

2шт.

5

165964R1

BEARING CUP

CUP, axle inner brg

2шт.

6

595214R1

BUSHING, axle gear retaining

2шт.

7

53010H

WASHER, 1-33/64 x 2-23/64 x 16 ga special axle gear

1шт.

8

595216R1

HOUSING, final drive (for component parts of this assembly refer to "FINAL DRIVE HOUSING" in section "B" of this parts catalog)

2шт.

9

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, housing outer brg

2шт.

10

327195R91

BEARING ASSY,2.25" ID x 3.8125" OD x 0.8268"

CONE, housing outer brg

2шт.

11

336276R92

OIL RESERVOIR

SEAL, final drive housing oil

2шт.

12

AXLE, final drive (for service on 275 Windrower built prior to machine serial No. 1501, order 1 - 598063R3, AXLE & 1 - 598038R1, SPACER) (for service on 375 Windrower built prior to machine serial No. 201, order 1 - 598063R3, AXLE & 1 - 598038R1, SPACER)

2шт.

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

12

598063R3

SHAFT

AXLE, final drive (for use on 275 Windrower, built w/machine serial No. 1501 & since) (for use on 375 Windrower built w/machine serial No. 201 & since)

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

13

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

5/8 - NF x 2-3/8" wheel

16шт.

554480R1

WHEEL NUT

5/8" - NF wheel

16шт.

14

598038R1

SPACER, final drive gear (for use on 275 Windrower built w/machine serial No. 1501 & since) (for use on 375 Windrower built w/machine serial No. 201 & since)

2шт.

15

366335R1

GEAR

final drive axle

2шт.
