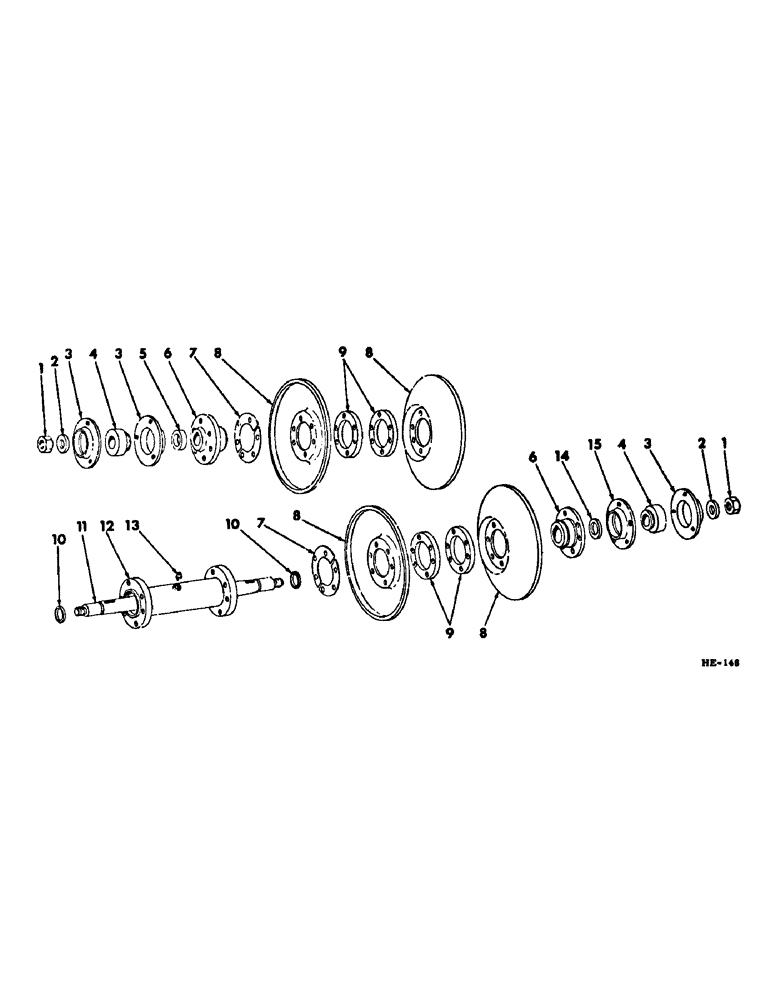

Запчасти Case IH 275 (B-11) - POWER TRAIN, VARIABLE SPEED DRIVE (03) - POWER TRAIN

1

231-46112

LOCK NUT,3/4"-16, GB

NUT, 3/4" - NF drive shaft lk

2шт.

2

595131R1

WASHER, 25/32 x 1-1/2 x 3/16" drive shaft special

2шт.

3

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft brg

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

455960R91

BALL BEARING

BEARING, speed drive

2шт.

5

595129R1

BUSHING

drive shaft

1шт.

6

595134R1

HUB, outer pulley

2шт.

113879

KEY

5/16 x 1-1/4" WOODRUFF

2шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

5/16 NF x 1"

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

7

596004R1

SHIM, drive pulley half

1шт.

8

595135R1

PULLEY, drive half

4шт.

9

595136R1

RETAINER, drive pulley

4шт.

10

591867R91

OIL SEAL

inner pulley hub oil

2шт.

11

595128R1

SHAFT, variable speed drive

1шт.

12

595133R1

HUB, inner pulley

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

5/16 NF x 1-1/8"

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

13

62022R91

FITTING

inner pulley hub shut-off

1шт.

14

595130R1

WASHER

1-5/32 x 1-1/4 x 11 ga hub & brg RH

1шт.

15

595127R11

RETAINER, drive shaft brg

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
