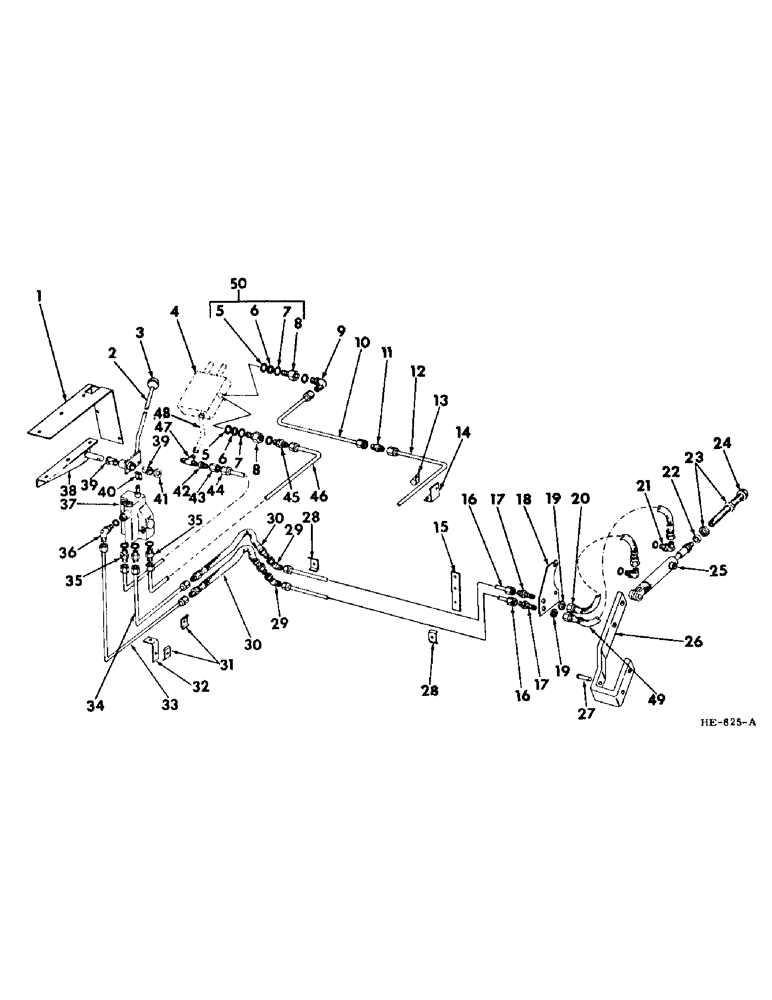

Запчасти Case IH 275 (N-14) - PARTS ACCESSORIES AND ATTACHMENTS, VARIABLE SPEED REEL DRIVE Accessories & Attachments

1

598648R1

SUPPORT, control valve

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

598561R2

HANDLE, valve control

1шт.

3

163574C1

KNOB

valve control handle (opt to use 1 - 610638R1, KNOB)

1шт.

3

610638R1

KNOB

valve control handle (opt to use 1 - 163574C1, KNOB)

1шт.

4

596408R91

VALVE

hyd control (for component parts of this assembly, refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

5

370920R1

O-RING,1/2" ID

adapter plug

1шт.

6

598644R1

WASHER

O-ring back-up adapter plug

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

adapter plug

1шт.

8

597877R1

PLUG

main or auxiliary valve pressure beyond adapter) (when machine equipped w/hyd variator)

1шт.

9

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8" - 90 degree main valve adapter plug (375 Windrower)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, main valve elbow

1шт.

10

598650R11

TUBE, main valve to union (375 Windrower) 0.375" OD, 15.06, 7.34" Length

1шт.

11

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

3/8" main valve (375 Windrower)

1шт.

12

598651R11

TUBE, union to auxiliary valve (375 Windrower)

1шт.

13

595432R1

CLAMP

hyd tube (375 Windrower)

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

598652R1

ANGLE, hyd tube clamp (375 Windrower)

1шт.

15

598659R1

BAR, tube clamp support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

598658R11

TUBE, jumper hose to cyl hose

2шт.

17

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8" flared bulkhead

2шт.

18

598660R1

BAR, bulkhead union support

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, fitting lk

2шт.

20

632455R91

HOSE

cyl rear port

1шт.

21

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8" - 90 degree hyd cyl

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder elbow

2шт.

22

390554R1

WASHER, 17/32 x 2 x 1/4" hyd cyl

1шт.

23

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" cyl jam

2шт.

24

598662R1

BOLT, hyd cyl extension

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" jam

2шт.

25

403824R91

CYLINDER, reel speed hyd (for component parts of this assembly refer to "REEL SPEED HYDRAULIC CYLINDER" in section "F" of this parts catalog)

1шт.

26

598661R1

BRACE, reel speed hyd cyl

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

27

21890R1

PIN, 5/8 x 1-3/4" std-hd-dld hyd, Serial Range: cyl-brace

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

28

614323R2

CLAMP

hyd tube

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 degree swivel

2шт.

30

607726R91

HOSE, reel speed jumper

2шт.

31

614323R2

CLAMP

tube

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6/16 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

598657R1

ANGLE, hose clamp support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

598656R11

TUBE, reel valve to jumper hose pressure 0.375" OD, 34.3, 6.06" Length

1шт.

34

598655R11

TUBE, reel valve to jumper hose pressure 0.375" OD, 32.4, 2.06" Length

1шт.

35

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 3/8" swivel reel speed valve

3шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, speed valve union

3шт.

36

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8" - 90 degree reel valve

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, reel valve elbow

1шт.

37

596409R92

VALVE

reel speed hyd control (for component parts of this assembly, refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

598564R1

PIVOT, valve handle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

39

185062R1

BUSHING

pivot

2шт.

40

598083R1

CHAIN (AG)

LINK, control valve handle connecting

1шт.

41

178375R1

WASHER

25/32 x 1-1/4 x 16 ga control handle pivot pin

1шт.

42

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

1/2" to 3/8"

1шт.

43

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, reducer tube

1шт.

44

598653R11

TUBE, reel velve to junction return

1шт.

45

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 3/8" main valve adapter plug (275 Windrower)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, main valve union

1шт.

46

598649R11

TUBE, main valve to auxiliary (275 Windrower)

1шт.

47

9402982

TEE,3/4"-16, 37 Degree

1/2" - 3 way (275 Windrower when machine NOT equipped w/hyd variator)

1шт.

48

597891R1

TUBE, control valve return (275 Windrower) (also refer to "HYDRAULIC CONNECTIONS reservoir to pump to valve") 1" OD, 2.78, 2.78" Length

1шт.

48

597898R1

TUBE, control valve return (375 Windrower) (also refer to "HYDRAULIC CONNECTIONS reservoir to, Serial Range: pump-valve")

1шт.

49

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE, cyl front port

1шт.

50

598386R91

PLUG

adapter, composed of, (1) PLUG 597877R1, (1) O-RING 350429R1, (1) O-RING 370920R1, (1) WASHER 598644R1

1шт.
