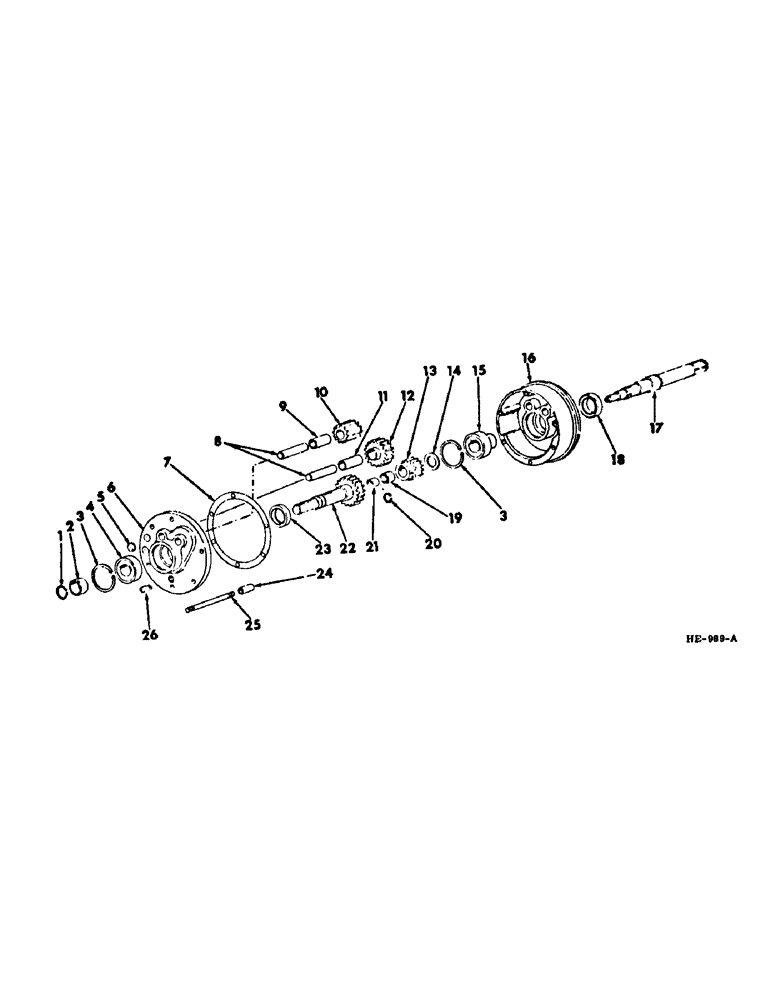

Запчасти Case IH 275 (B-10) - POWER TRAIN, PLANETARY TRANSMISSION (03) - POWER TRAIN

1

659380R1

SNAP RING,#137, Ext

Ring, Snap, , output gear #137, Ext

2шт.

2

825406C1

SPACER, output gear

2шт.

3

616518C1

RING, cover brg retaining

4шт.

4

117510R91

BEARING, BALL

BEARING, housing cover

2шт.

5

172540

PULLEY

expansion

4шт.

6

599116R11

COVER, ASSEMBLY, housing composed of: (NSS) (1) HOUSING, (1) PLUG 618465R91, (2) PLUG 172540

2шт.

595175R1

STUD, clutch mounting

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

7

617955R1

SHIM

.020" thick housing cover

2шт.

8

599118R1

PIN, planetary gear shaft

4шт.

9

591889R1

BUSHING, planetary drive gear

2шт.

10

591892R11

GEAR, planetary drive (includes 1 - 591889R1, BUSHING)

2шт.

11

591890R1

BUSHING, planetary idler gear

2шт.

12

591893R11

GEAR, planetary idler gear (includes 1 - 591890R1, BUSHING)

2шт.

13

591884R1

GEAR, 17T transmission input

2шт.

113879

KEY

5/16 x 1-1/4" WOODRUFF

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

14

Q3483

WASHER

1-9/32 x 2 x 11 ga plain

2шт.

15

591895R91

BALL BEARING,1.313" ID x 2.8346" OD x 1.35"

planetary housing

2шт.

16

599115R1

HOUSING, planetary gear

2шт.

17

825401C1

SHAFT, input LH

1шт.

17

825402C1

SHAFT, input RH (shown)

1шт.

18

935869R92

SEAL,44.35mm ID x 66.72mm OD x 12.7mm Thk

SEAL, planetary housing oil (opt to use 1 - 591896R92, SEAL)

2шт.

18

591896R92

SEAL

planetary housing oil (opt to use 1 - 935869R92, SEAL)

2шт.

19

599120R91

ROLLER BEARING,0.875" ID x 1.188" OD x 0.75"

BEARING, output gear

2шт.

20

825494C1

RING

inner brg retaining

2шт.

21

599119R91

BEARING

output gear inner

2шт.

22

599111R21

GEAR, planetary output (includes 1 - 599119R91, BEARING; 1 - 599120R91, BEARING & 1 - 825494C1, RING)

2шт.

23

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Oil, Housing Cover 1.752" ID x 2.503" OD x .689

2шт.

24

823005C1

BUSHING

transmission clutch

12шт.

25

595175R1

STUD, planetary transmission

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

26

618465R91

MAGNETIC PLUG

PLUG, magnetic

2шт.
